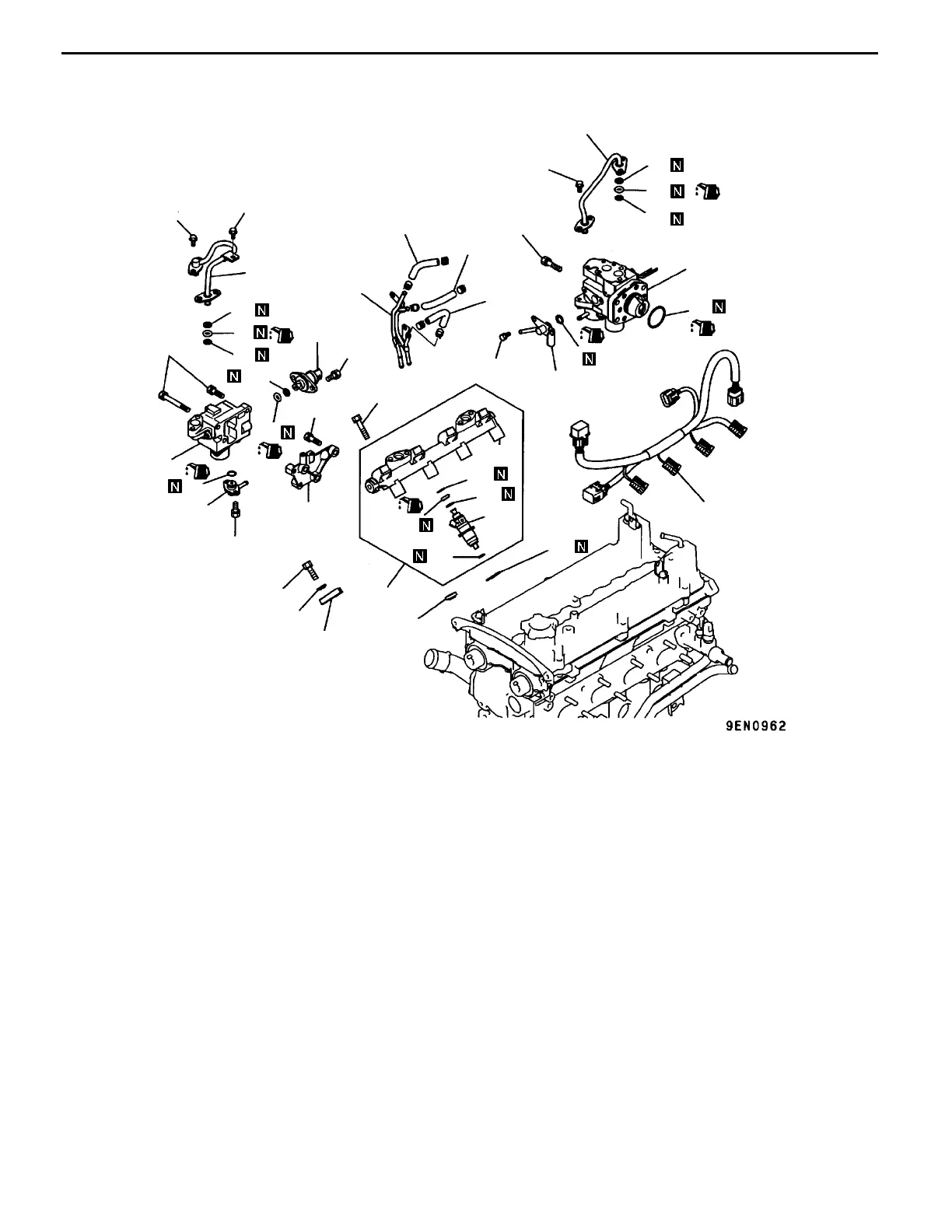

4G9 ENGINE (E-W) -
Injector and Fuel Pump Assembly (GDI)
11A-6c-2
REMOVAL AND INSTALLATION <For PAJERO io>
28
18 Nm
17
±
2Nm
9Nm
14
10
8
7
1
9
6
5
2
15
4
16
17
34
24
25
26
27
22
23
20
35
32
30
3
33
31
22 Nm
9Nm
11 Nm
18 Nm
11 Nm
9Nm
18
19
11 Nm
18 Nm
21
11
12
13
29
Removal steps
1. Injector harness
2. Fuel hose
3. Fuel hose
4. Fuel hose
5. Fuel pipe
6. Fuel nipple
7. O-ring
8. Fuel nipple
9. O-ring
"
F
A 10. Fuel feed pipe
11. Backup ring
12. O-ring
13. Backup ring
"
F
A 14. Fuel pump
15. O-ring
16. Fuel return pipe
17. Backup ring
18. O-ring
19. Backup ring
"
E
A 20. Fuel high pressure regulator
"
D
A 21. Fuel pressure sensor
22. Backup ring
23. O-ring
24. Spacer
25. washer
26. Injector holder
"
B
A 27. Delivery pipe and injector
28. Insulator
29. Injector gasket
"
A
A 30. Corrugated washer
"
A
A 31. Backup ring
"
A
A 32. O-ring
"
A
A 33. Backup ring
34. Injector
35. Delivery pipe
PWEE9502-E
