11A-4-1

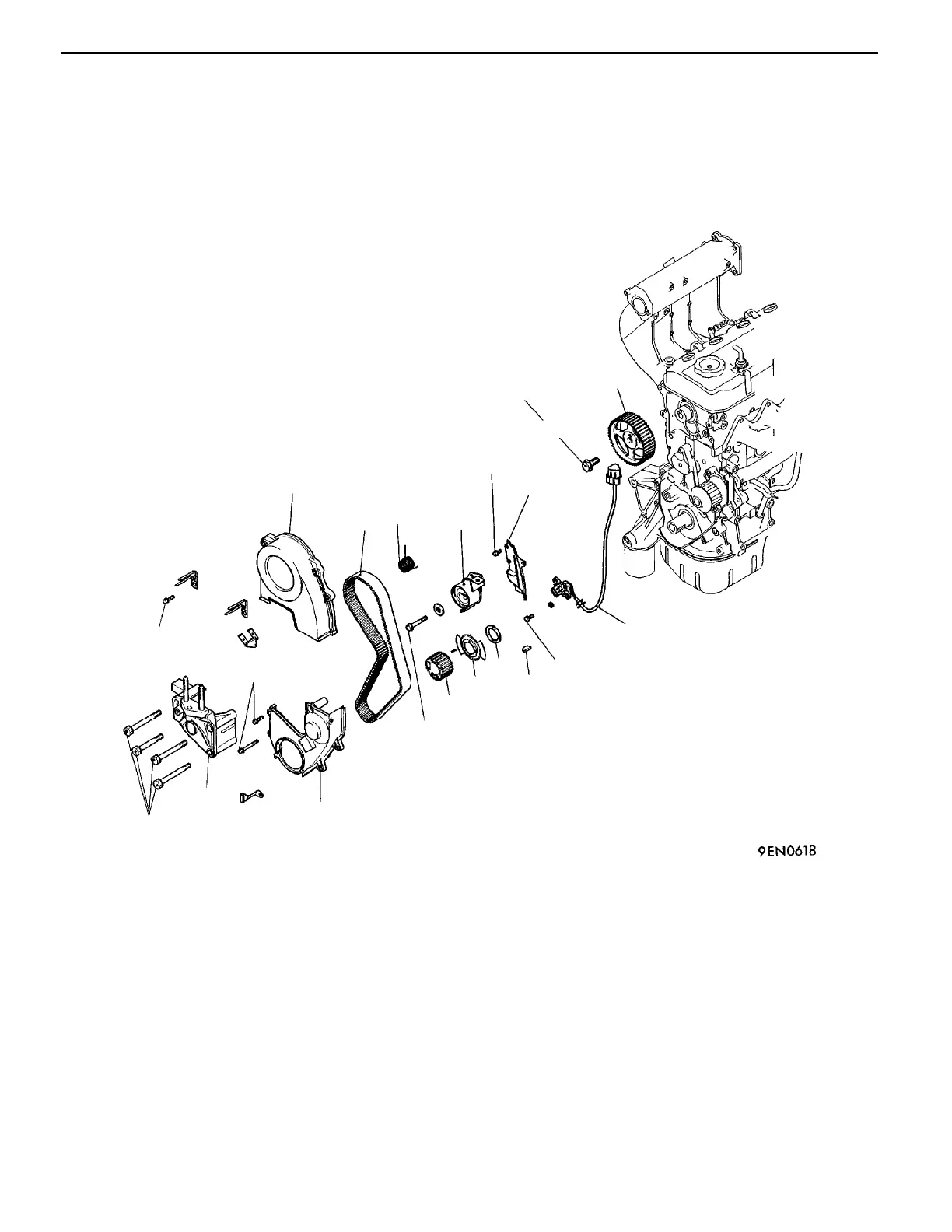

4. TIMING BELT
REMOVAL AND INSTALLATION <SOHC for other than PAJERO io>
11 Nm
88 Nm
11 Nm
23 Nm
11 Nm
49 Nm
11
10
1
4
5
3
2
6
7
8
9
12
9.8 Nm
14
13
Removal steps
1. T iming belt front upper cover
2. T iming belt front lower cover
3. Engine support bracket, right
A
A
""
D
A 4. Timing belt
"
C
A 5. Tensioner spring
"
B
A 6. Timing belt tensioner
7. Timing belt rear cover
8. Crankshaft angle sensor
(Engines without distributor)
9. Crankshaft sprocket
10. Crankshaft spacer
(Engines without distributor)
11. Crankshaft sensing plate
(Engines without distributor)
12. Crankshaft key
A
B
""
A
A 13. Camshaft sprocket bolt
14. Camshaft sprocket
PWEE9502-E
E
Dec. 1998Mitsubishi Motors Corporation Revised
