Mitsubishi 4G9 series

4G9 ENGINE (E-W) -
Timing Belt
11A-4-2

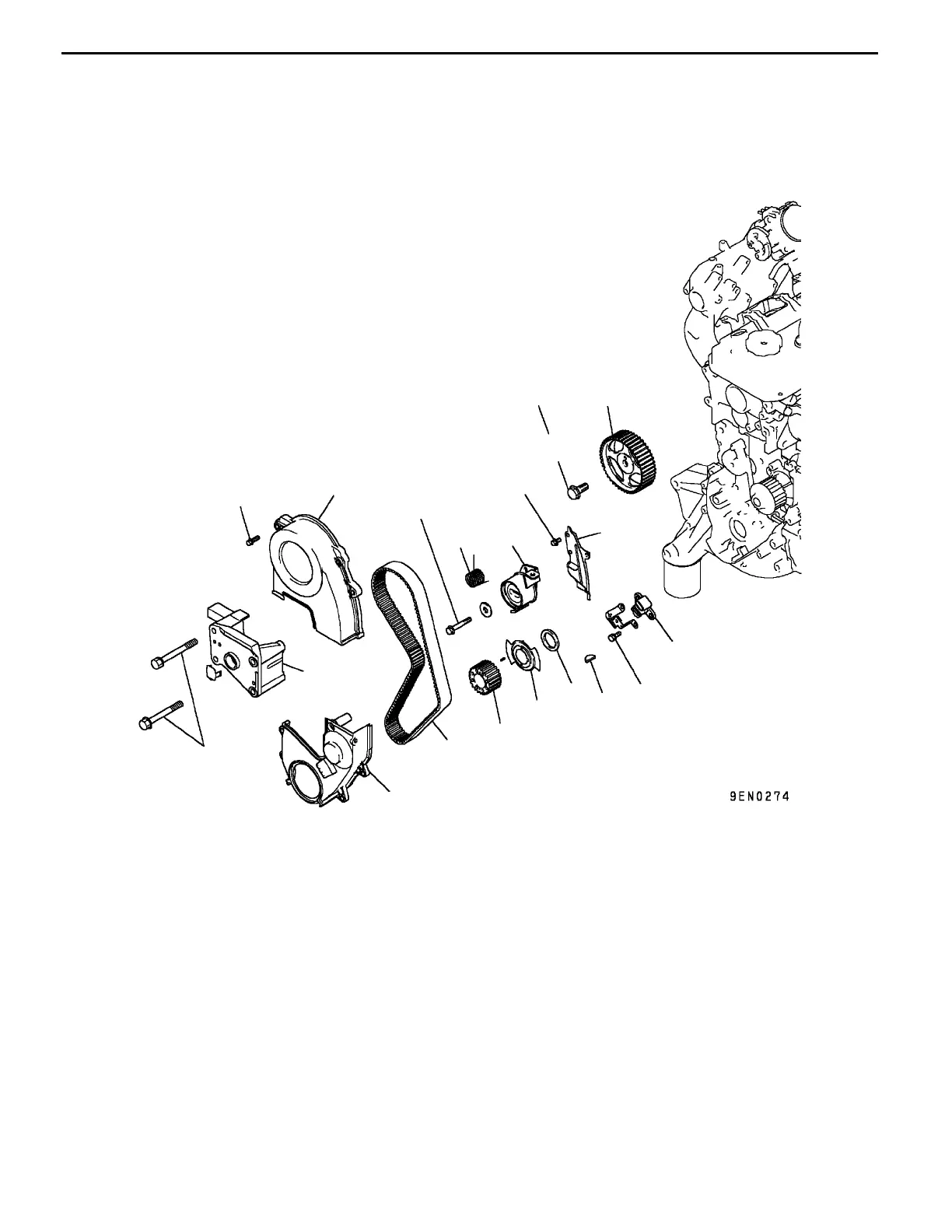

REMOVAL AND INSTALLATION <SOHC for PAJERO io>
11 Nm
88 Nm
11 Nm
23 Nm
49 Nm
11
10
1
4
5
3
2
6
7
8
9
12
9.8 Nm
14
13
Removal steps
1. T iming belt front upper cover
2. T iming belt front lower cover
3. Accessory mount
A
A
""
D
A 4. Timing belt
"
C
A 5. Tensioner spring
"
B
A 6. Timing belt tensioner
7. Timing belt rear cover
8. Crankshaft angle sensor
9. Crankshaft sprocket
10. Crankshaft spacer
11. Crankshaft sensing plate
12. Crankshaft key
A
B
""
A
A 13. Camshaft sprocket bolt
14. Camshaft sprocket
PWEE9502-E
E
Dec. 1998Mitsubishi Motors Corporation Revised
