Mitsubishi 4G9 series

4G9 ENGINE (E-W) -
Timing Belt
11A-4-2a

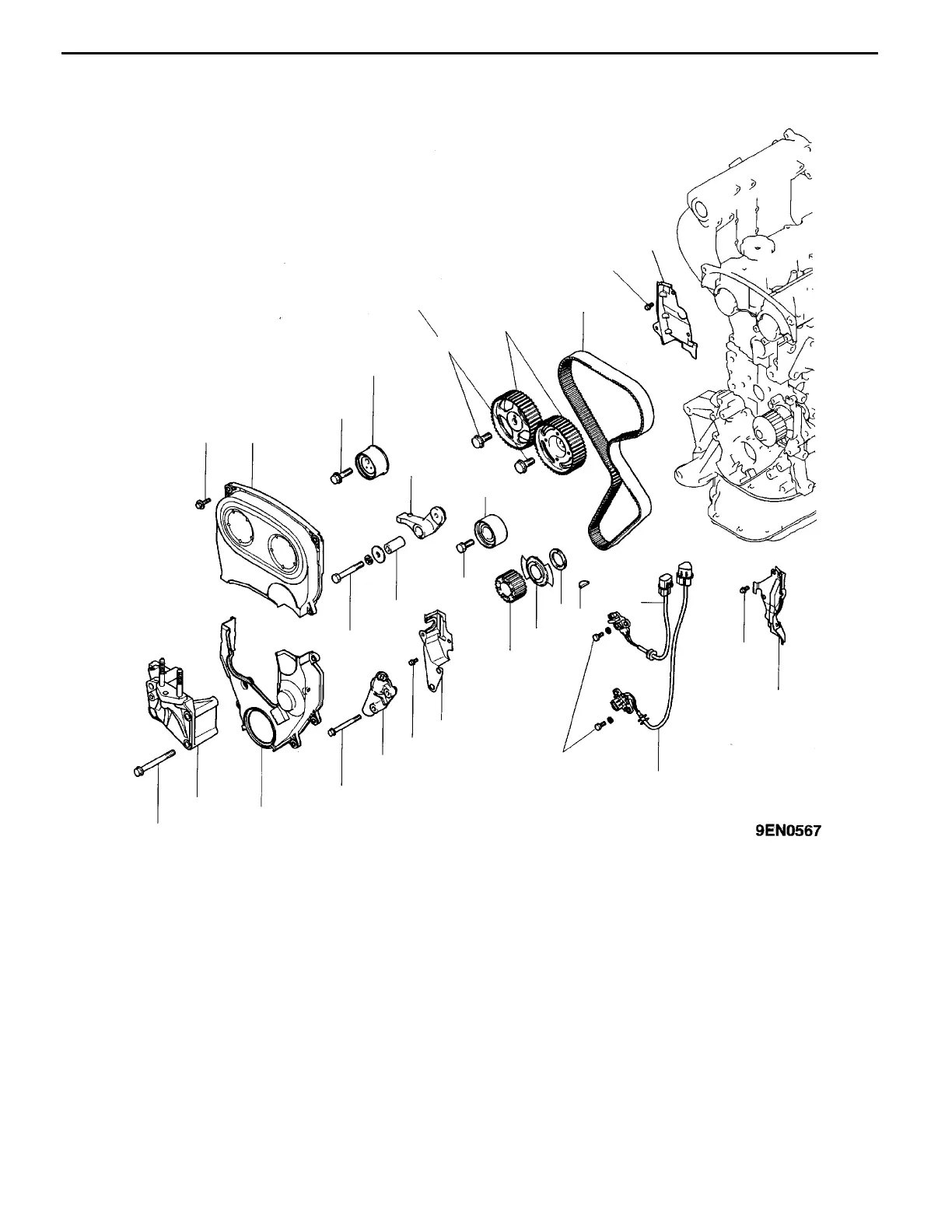

REMOVAL AND INSTALLATION <DOHC>
88 Nm
11 Nm
11 Nm
36 Nm
44 Nm
11 Nm
49 Nm
13 Nm
11 Nm
9.8 Nm
20
12
9
8
3
2
1
5
17
18
4
19
6
10
7
13
14
15
16
11
24 Nm
Removal steps
1. T iming belt upper cover
2. T iming belt lower cover
3. Engine support bracket
A
A
""
F
A 4. Timing belt
5. Tensioner pulley
6. Tensioner arm
7. Shaft
"
E
A 8. Auto-tensioner
9. Timing belt rear cover
10. Idler pulley
11. Cam position sensor
12. Crank angle sensor
13. Crankshaft sprocket
14. Sensing plate
15. Crankshaft spacer
16. Crankshaft sprocket key
A
B
""
A
A 17. Camshaft sprocket bolt
18. Camshaft sprocket
19. Timing belt rear cover
20. Timing belt rear cover
PWEE9502-E
E
Dec. 1998Mitsubishi Motors Corporation Revised
