4G9 ENGINE (E-W) -
Exhaust Manifold (GDI)
11A-6b-3
INSTALLATION SERVICE POINTS
"
A
A

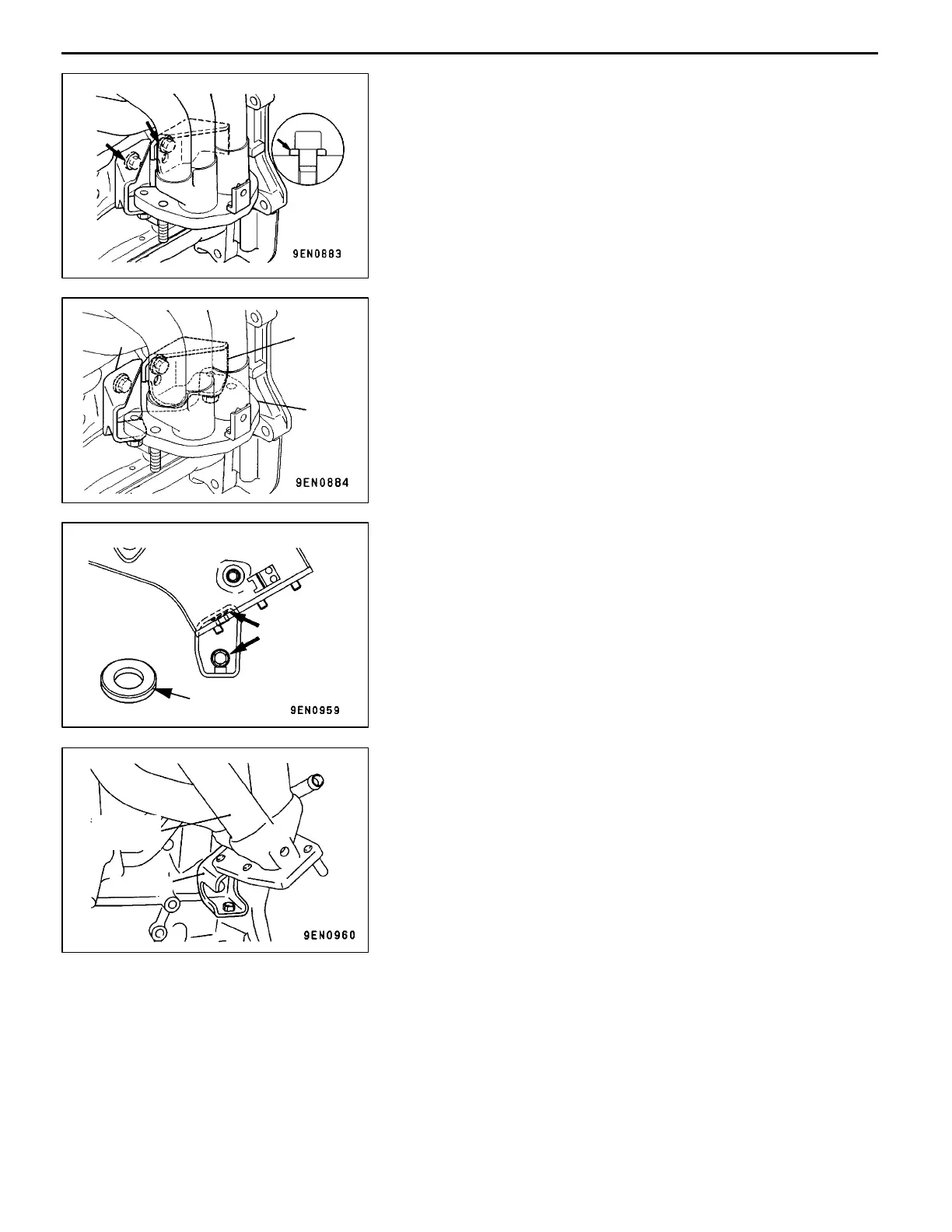

EXHAUST MANIFOLD BRACKET INSTALLATION
(1) Slide t he washers over the bolts with the chamfered side
toward the bolt.
(2) Install temporarily the exhaust manifold brackets A and
B as shown in the illustration.
(3) Check that both brackets are in close contact with the
bosses, and then tighten fully the bracket mounting bolts.
"
B
A
EXHAUST MANIFOLD BRACKET INSTALLATION
(1) The washers must be installed with the shear-drooped
side toward the bolts.
(2) Temporarily install the exhaust manifold bracket as shown
in the illustration.
(3) Verify that the bracket is brought into close contact with
the boss on the exhaust manifold, then tighten the bolts
to the specified torque.
PWEE9502-E
E
Dec. 1998Mitsubishi Motors Corporation Added
Bracket A
Bracket B
Exhaust
manifold
Shear-droop
Exhaust
manifold
Bracket
