4G9 ENGINE (E-W) -
Water Pump and Water Hose
11A-7-1
PWEE9502-B
E
Nov. 1996Mitsubishi Motors Corporation
Revised
7. WATER PUMP AND WATER HOSE
11301790016

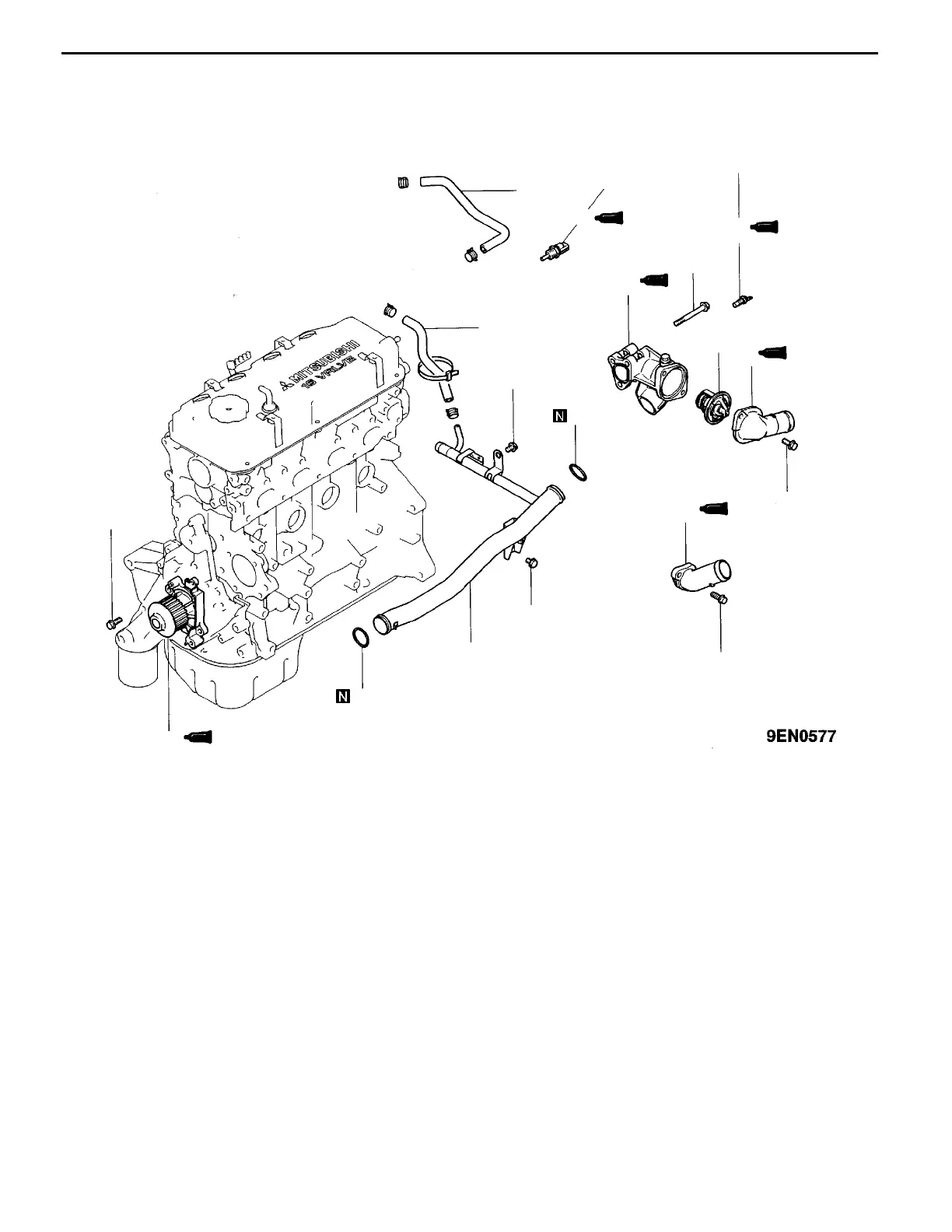

REMOVAL AND INSTALLATION <SOHC>
29 Nm
10 Nm
24 Nm
14 Nm
14 Nm
24 Nm
14 Nm
14 Nm
12
11
10
9
2
4
3
1
8
7
6
5
Removal steps
1. Water hose
(Except carburetor engines)
2. Water hose
"
G
A
3. Engine coolant temperature sensor
"
F
A
4. Engine coolant temperature gauge
unit
"
E
A
5. Water outlet fitting
6. Water inlet fitting
"
D
A
7. Thermostat
"
C
A
8. Thermostat case
"
B
A
9. O-ring
"
B
A
10. Water inlet pipe
"
B
A
11. O-ring
"
A
A
12. Water pump
