4G9 ENGINE (E-W) -
Fuel and Emission Control System
11A-5-2

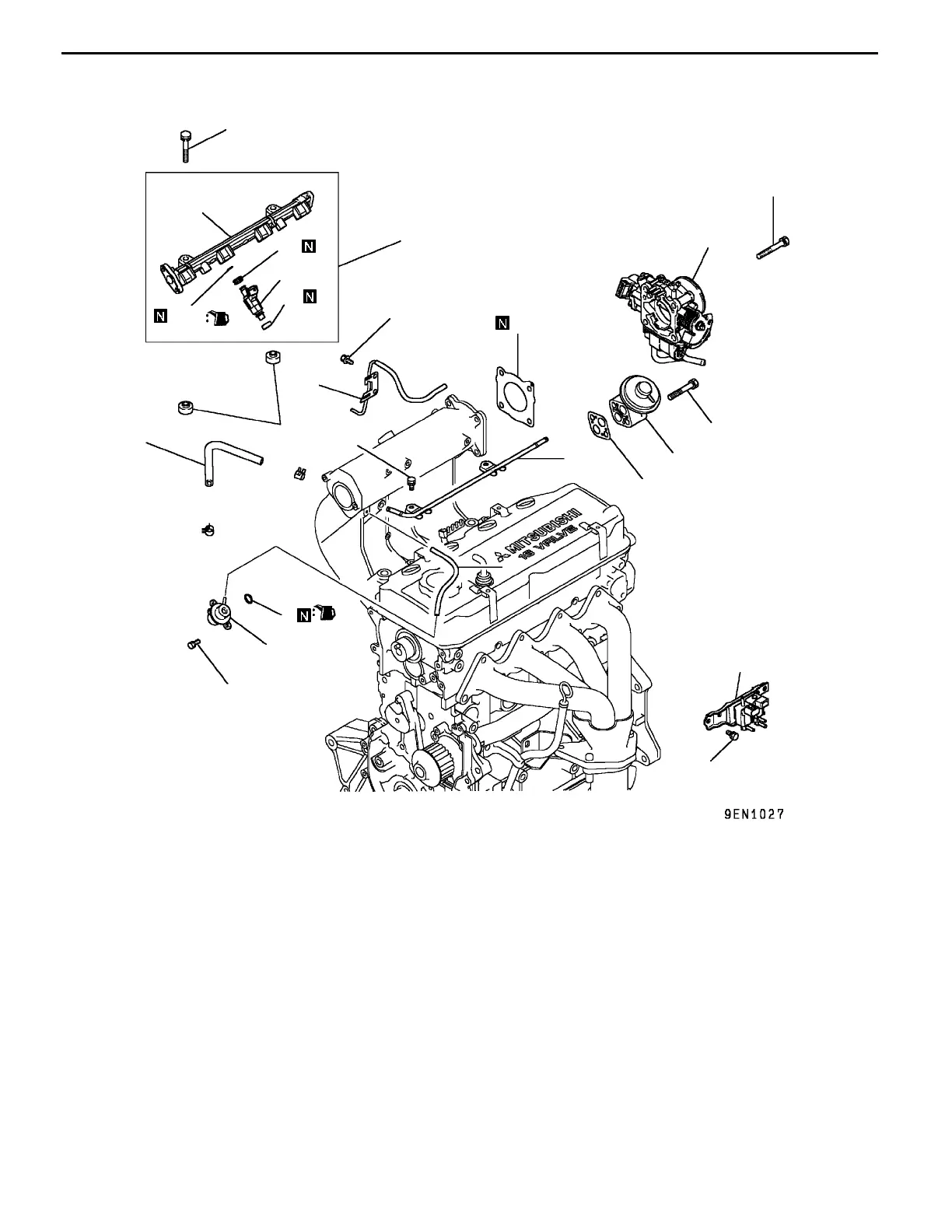

REMOVAL AND INSTALLATION <SOHC-MPI for other than PAJERO iO>
12 Nm
19 Nm
10 Nm
9Nm
9Nm
14
13
8
11
10
12
1
9
5
6
7
3
2
15
4
16
11 Nm
16
18
17
21 Nm
Removal steps
1. Vacuum hose and pipe assembly
2. Throttle body
"
C
A 3. Gasket
4. Vacuum hose
5. Fuel hose
"
B
A 6. Fuel pressure regulator
7. O-ring
8. Delivery pipe and injector
9. Insulator
10. Insulator
"
A
A 11. Injector
12. O-ring
13. Grommet
14. Delivery pipe
15. Fuel return pipe
16. Solenoid valve assembly
17. EGR valve
18. Gasket
PWEE9502-F
E
July 1999Mitsubishi Motors Corporation Revised
To Next Page
