Mitsubishi 4G9 series

4G9 ENGINE (E-W) -

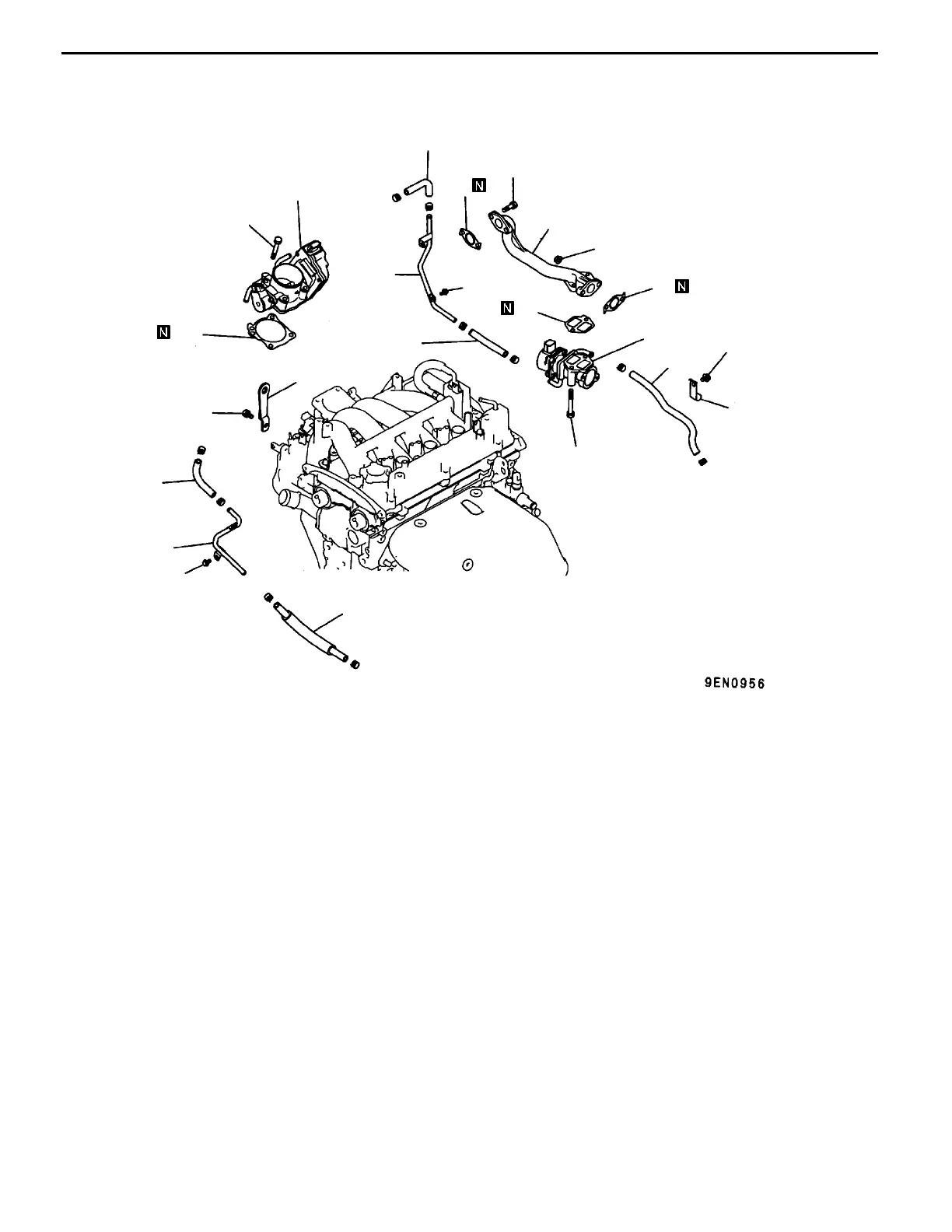

Throttle Body and EGR System (GDI)
11A-5a-2
REMOVAL AND INSTALLATION <For PAJERO io>
13 Nm
23 Nm
18 Nm
14
6
10
1
9
2
8
4
7
13
3
16
11 Nm
18 Nm
18 Nm
12
18 Nm
14
11
5
11 Nm
15
Removal steps
1. Water hose
2. Water hose
3. Water hose
4. Water hose
5. Water hose
6. W ater hose clamp
7. W ater pipe
8. W ater pipe
9. Throttle body
"
A
A 10. Throttle body gasket
11. EGR valve
12. EGR valve gasket
13. EGR valve support
14. Gasket
15. Engine hanger
