Mitsubishi 4G9 series

4G9 ENGINE (E-W) -
Intake and Exhaust Manifold
11A-6-1
PWEE9502-B
E
Nov. 1996Mitsubishi Motors Corporation
Revised

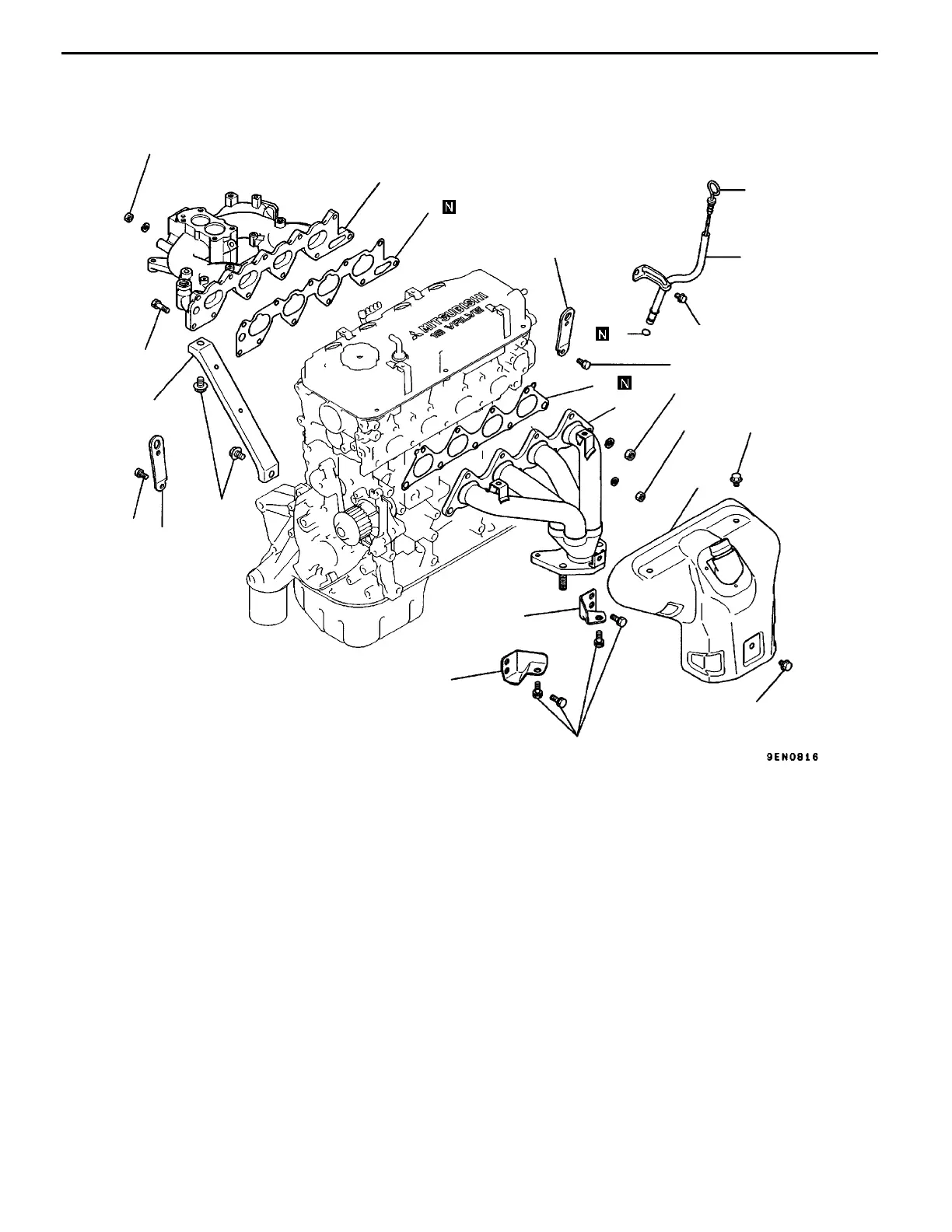

6. INTAKE AND EXHAUST MANIFOLD
REMOVAL AND INSTALLATION <SOHC-CARBURETOR>
20 Nm
20 Nm
12 Nm
30 Nm
29 Nm
18 Nm
12 Nm
19 Nm
14 Nm
7
6
5
8
9
10
11
13
4
1
3
2
13 Nm
13 Nm
12
Removal steps
1. Engine hanger
"
B
A
2. Intake manifold stay
3. Intake manifold
4. Intake manifold gasket
5. Oil level gauge
6. Oil level gauge guide
7. O-ring
8. Exhaust manifold cover
9. Engine hanger
"
A
A
10. Exhaust manifold bracket A
"
A
A
11. Exhaust manifold bracket B
12. Exhaust manifold
13. Exhaust manifold gasket
