4G9 ENGINE (E-W) -
Timing Belt
11A-4-5
PWEE9502-A
E
Nov. 1995Mitsubishi Motors Corporation Revised

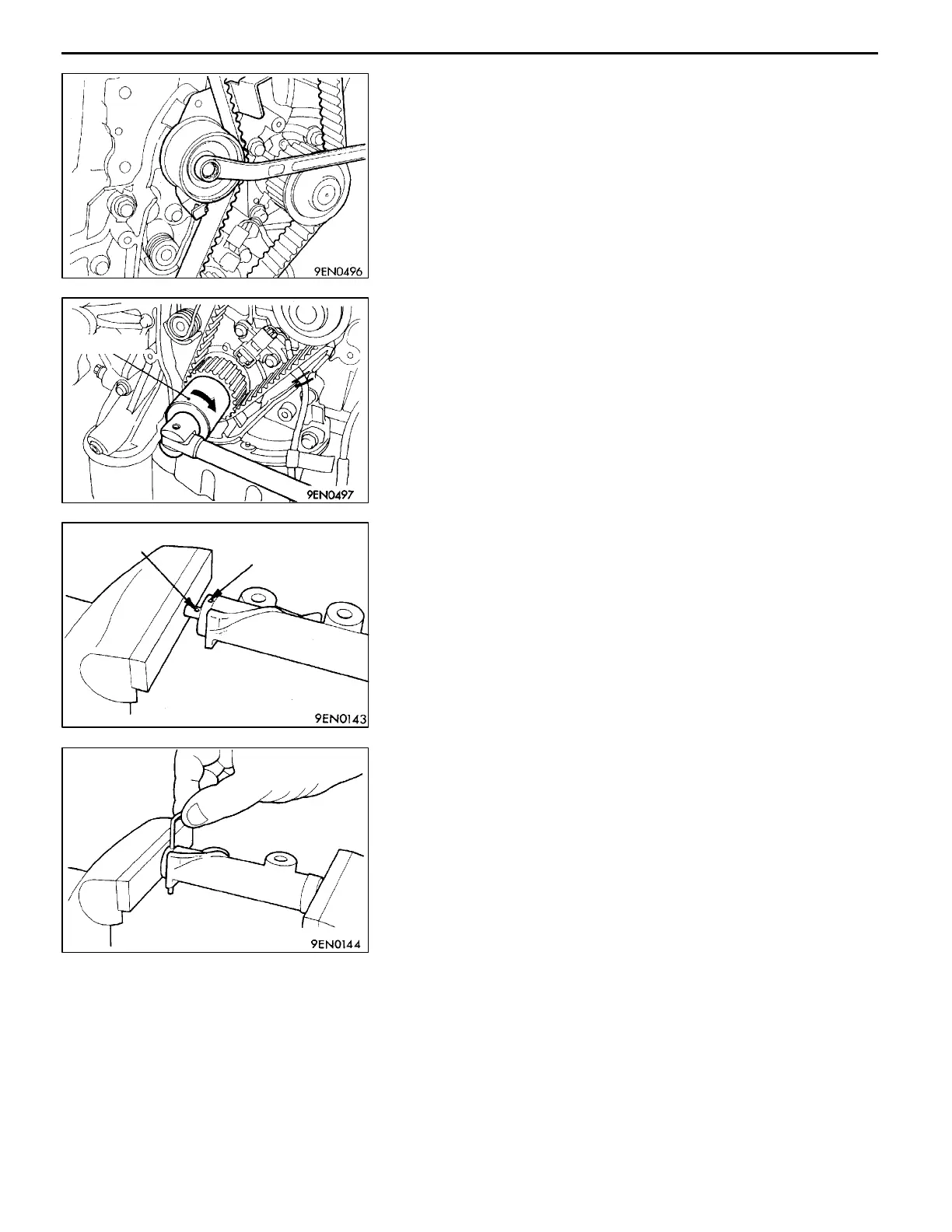

(6) Slightly loosen the tensioner pulley fixing bolt which is
tightened temporarily to tighten the belt by a force of
the tensioner spring.
(7) Turn the crankshaft clockwise by two turns.
(8) Check that the timing marks are aligned.
(9) Tighten the fixing bolt of the tensioner pulley.
"
E
A
AUTO-TENSIONER INSTALLATION
(1) If the auto-tensioner rod is fully extended, set it in the
retracted position with the following procedure.
1) Hold the auto-tensioner in a vice, being careful not
to tilt it.
2) Slowly close the vice to force the rod in to align hole
(A) of the rod with the set hole (B).
3) Insert a 2.0-mm-Allen key in diameter or similar into
the set holes.
4) Remove th e auto-tensioner from the vice.
(2) Install the auto-tensioner
Leave the align key until installation of the timing belt
is completed.
MD998716
Set hole (A)
Set hole (B)
To Next Page
