Mitsubishi 4G9 series

4G9 ENGINE (E-W) -
Timing Belt
11A-4-2c

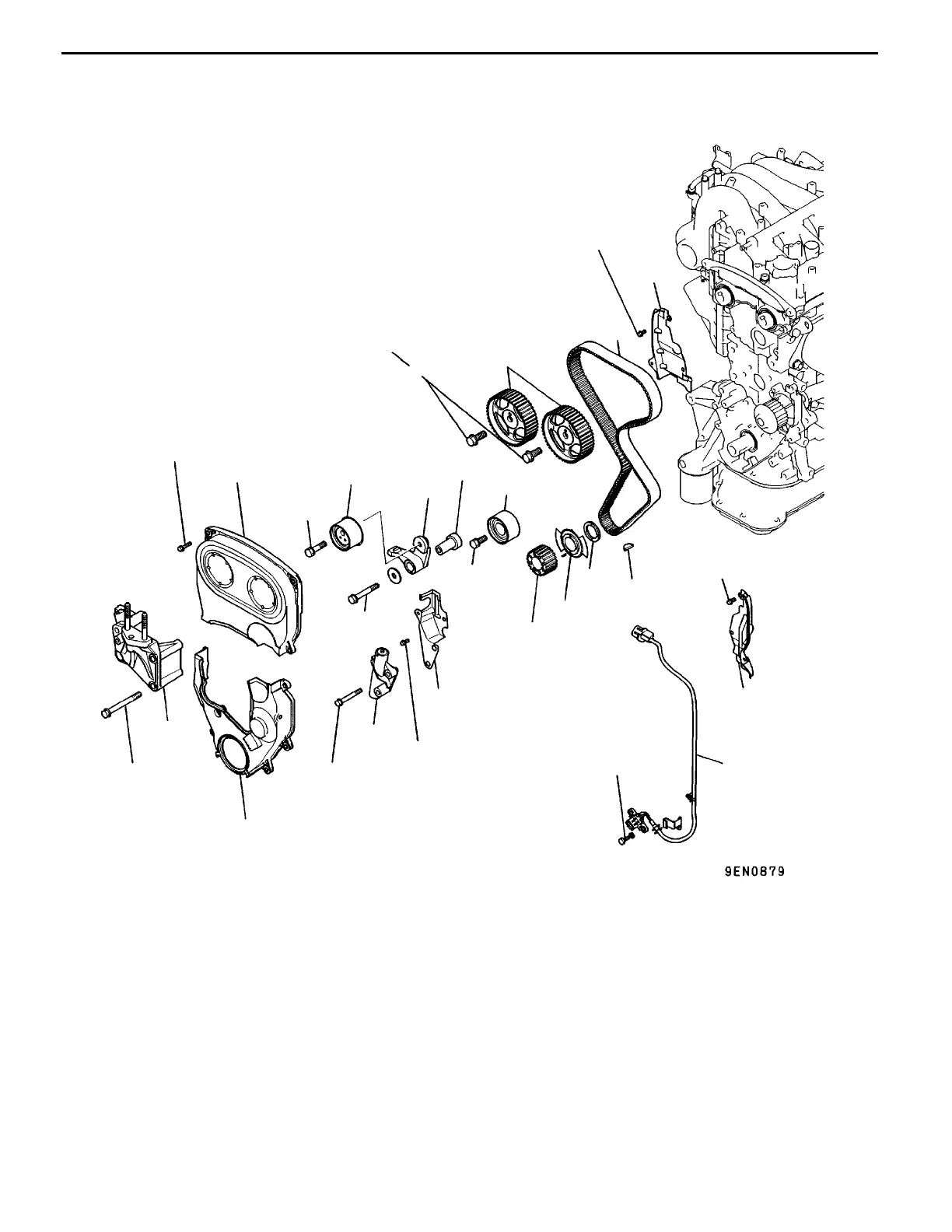

REMOVAL AND INSTALLATION <DOHC-GDI for CARISMA>
11 Nm
88 Nm
11 Nm
35 Nm
11 Nm
49 Nm
11
10
1
4
5
3
2
6
7
8
9
11 Nm
18
17
48 Nm
12
14
13
15
48 Nm
13 Nm
19
9.8 Nm
16
Removal steps
1. T iming belt front upper cover
2. T iming belt front lower cover
3. Engine support bracket, right
A
A
""
F
A 4. Timing belt
5. Tensioner pulley
6. Tensioner arm
7. Shaft
"
E
A 8. Auto tensioner
9. Timing belt rear cover
10. Idler pulley
11. Crankshaft angle sensor
12. Crankshaft sprocket
13. Crankshaft spacer
14. Crankshaft sensing plate
15. Crankshaft key
A
B
""
A
A 16. Camshaft sprocket bolt
17. Camshaft sprocket
18. Timing belt rear cover
19. Timing belt rear cover
PWEE9502-E
E
Dec. 1998Mitsubishi Motors Corporation Added
