4G9 ENGINE (E-W) -
Timing Belt
11A-4-7
PWEE9502
E
May 1995Mitsubishi Motors Corporation

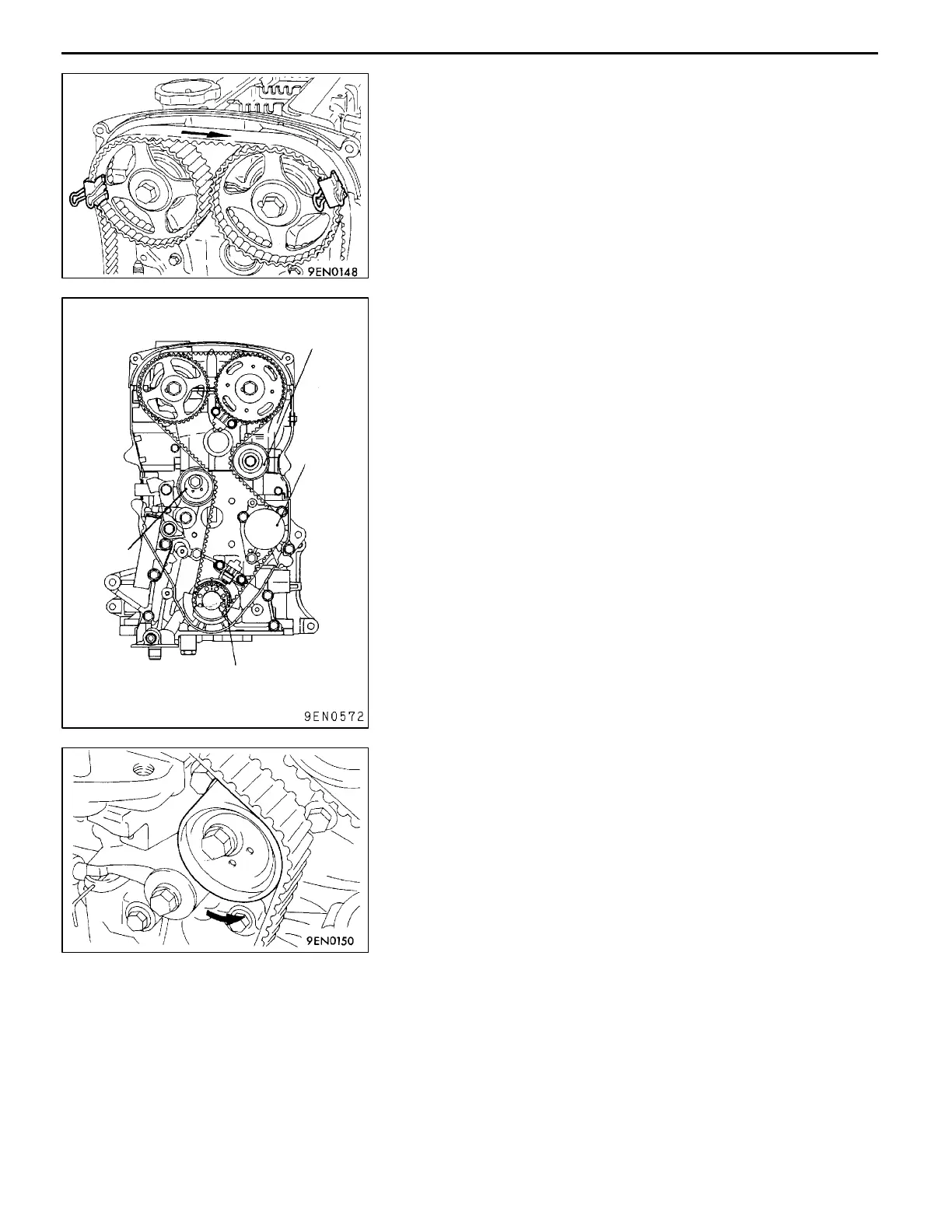

(6) Secure the timing belt with a paper clip at the illustrated
position.
(7) Fit the belt to the idler pulley water pump sprocket,
crankshaft sprocket and tensioner pulley in that order.
(8) Raise t he tensioner pulley in the direction of an arrow
and tighten the tensioner pulley bolt.
(9) Remove the two paper clips.
(10) Make sure that all timing marks are in alignment.
(11)Give a 1/4 counterclockwise turn to the crankshaft. Then
turn t he crankshaft clockwise to align t he timing marks
again.
Idler pulley
Tensioner
pulley
Water
pump
sprocket
Crankshaft sprocket
To Next Page
