4G9 ENGINE (E-W) -
Intake and Exhaust Manifold
11A-6-4
PWEE9502-B
E
Nov. 1996Mitsubishi Motors Corporation
Added
INSTALLATION SERVICE POINT
"
A
A

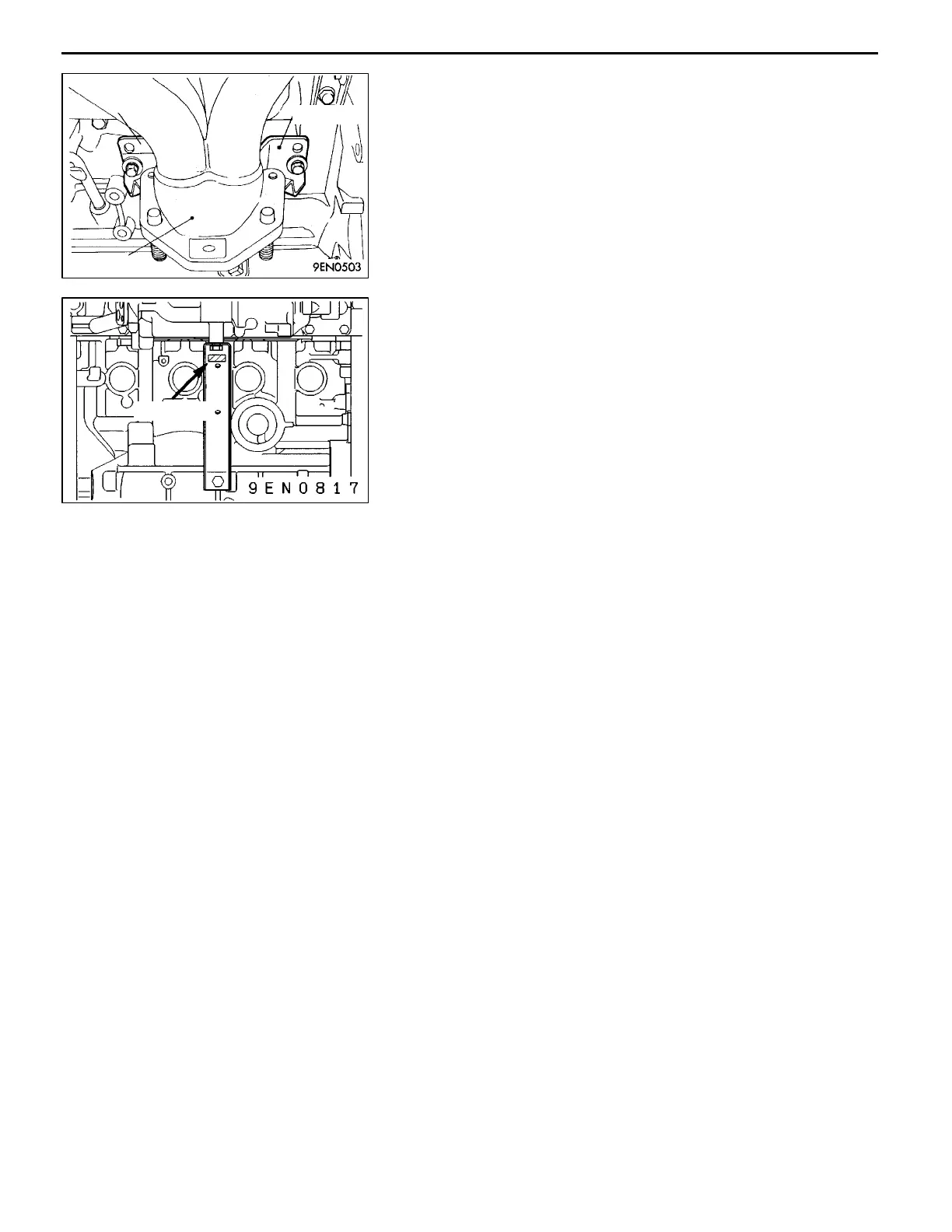

EXHAUST MANIFOLD INSTALLATION
(1) Install temporarily the exhaust manifold brackets A and
B as shown in the illustration.
(2) Check that both brackets are in close contact with the
bosses, and then tighten fully the bracket mounting bolts.
"
B
A
INTAKE MANIFOLD STAY INSTALLATION
(1) Install th e intake manifold stay with its “UP” mark directed
toward the intake manifold.
Bracket A
Bracket B
Exhaust
manifold
“UP” mark
To Next Page
