Mitsubishi 4G9 series

4G9 ENGINE (E-W) -
Intake Manifold (GDI)
11A-6a-3
REMOVAL AND INSTALLATION <For PAJERO io>
9Nm
19 Nm
23 Nm
8
10
1
9
5
6
3
2
4
11 Nm
11 Nm
9Nm
30 Nm
7
9Nm
9Nm

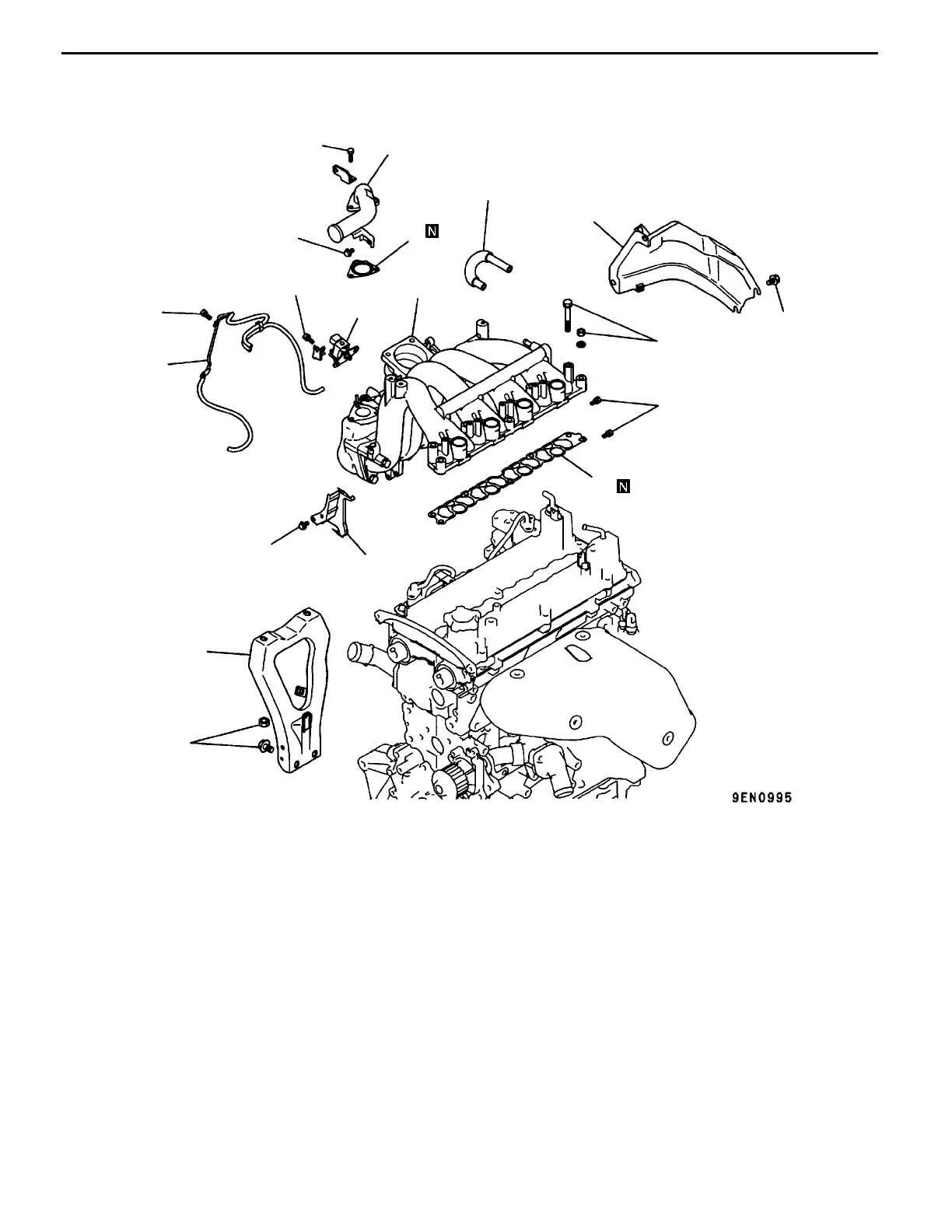

Removal steps
1. P.C.V. hose
2. Vacuum pipe and hose
3. Solenoid valve
4. Fuel pump protector
5. Connector bracket
6. Branch tube
7. Gasket
"
A
A 8. Intake manifold stay
9. Intake manifold
10. Intake manifold gasket
PWEE9502-E
E
Dec. 1998Mitsubishi Motors Corporation Added
