Mitsubishi 4G9 series

4G9 ENGINE (E-W) -
Rocker Arms and Camshafts
11A-8-4

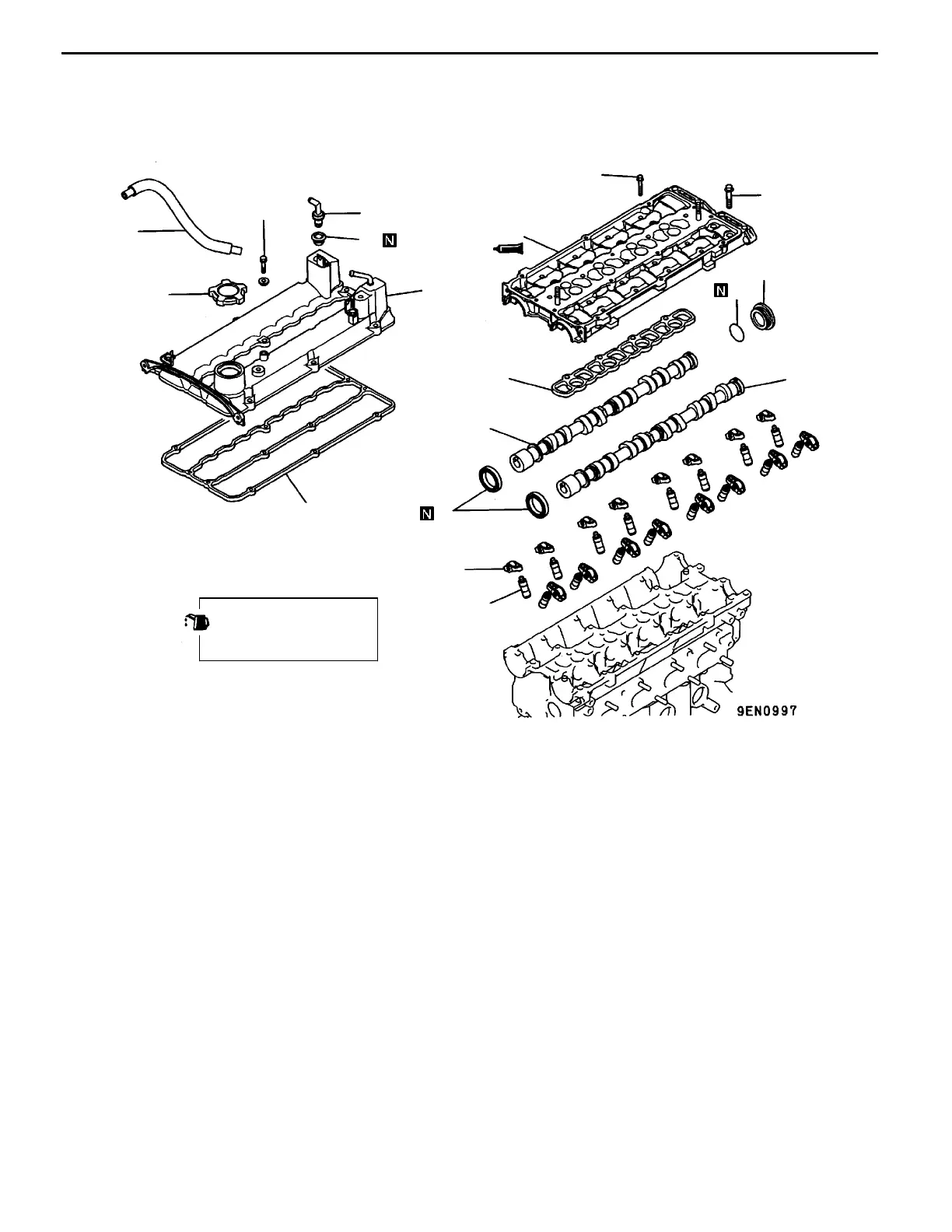

REMOVAL AND INSTALLATION <DOHC-GDI for PAJERO io>
3.5 Nm
21 Nm
11 Nm
Apply engine oil to
all moving parts
before installation.
2
3
1
4
5
8
13
10
9
11
12
14
6
7
15
Removal steps
1. Breather hose
2. P.C.V. valve
3. P.C.V. valve gasket
4. Oil filler cap
5. Rocker cover
6. Rocker cover gasket
7. Oil seal
8. Thrust case
9. O-ring
"
I
A 10. Beam camshaft cap
11. Gasket
12. Intake camshaft
13. Exhaust camshaft
14. Rocker arm
A
A
""
F
A 15. Lash adjuster
PWEE9502-E
E
Dec. 1998Mitsubishi Motors Corporation Revised
