4G9 ENGINE (E-W) -
Rocker Arms and Camshafts
11A-8-10

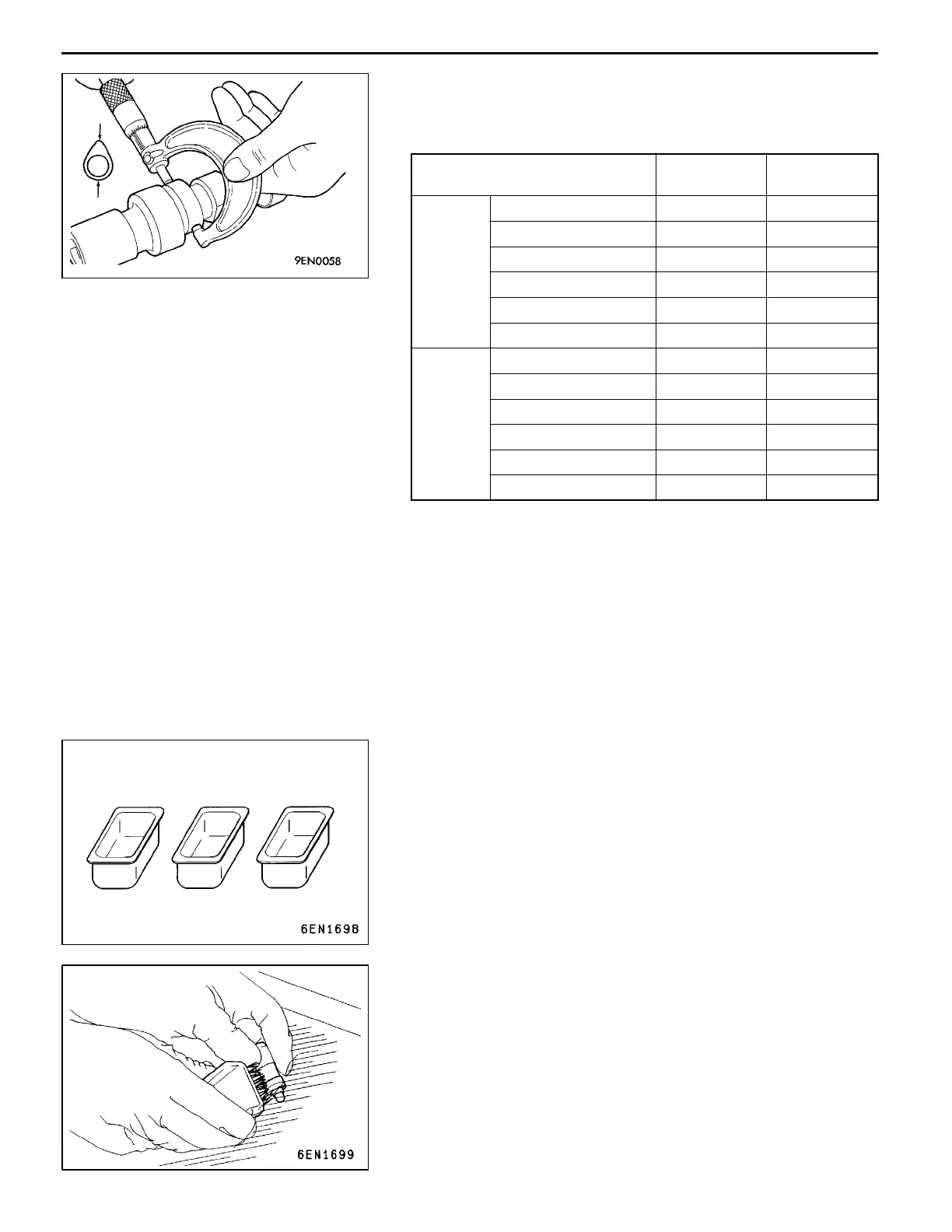

INSPECTION
CAMSHAFT
(1) Measure the cam height.
Standard
value mm
Limit mm
Intake 4G92-SOHC*
1
37.34 36.84
side
4G92-SOHC*
2
37.78 37.28
4G93-SOHC 37.53 37.03
4G93-DOHC 35.49 34.99
4G93-DOHC-GDI*
3
36.79 36.29
4G93-DOHC-GDI*
4
35.49 34.99
Exhaust 4G92-SOHC*
1
37.83 37.33
side
4G92-SOHC*
2
37.83 37.33
4G93-SOHC 37.64 37.14
4G93-DOHC 35.20 34.70
4G93-DOHC-GDI*
3
34.91 34.41
4G93-DOHC-GDI*
4
34.73 34.23
*
1
: LANCER for Europe and CARISMA for Europe
*
2
: LANCER for general export and CARISMA for 6B model
*
3
: For CARISMA
*
4
: For PAJERO io
LASH ADJUSTER
Caution
1. The lash adjusters are precision-engineered
mechanisms. Do not allow them to become
contained by dirt or other foreign substances.
2. Do not attempt to disassemble the lash adjusters.
3. Use only fresh diesel fuel to clean the lash adjusters.
(1) Prepare three containers and approximately five liters
of diesel fuel. Into each container, pour enough diesel
fuel to completely cover a lash adjuster when it is standing
upright. Then, perform the following steps with each lash
adjuster.
(2) Place the lash adjuster in container A and clean its outside
surface.
NOTE
Use a nylon brush if deposits are hard to remove.
PWEE9502-E
E
Dec. 1998Mitsubishi Motors Corporation Added
Outside
cleaning
Inside
cleaning
Filling with
diesel fuel
A
B
C
Diesel fuel
