Service
-
185
-
'10
•
HM-T-149

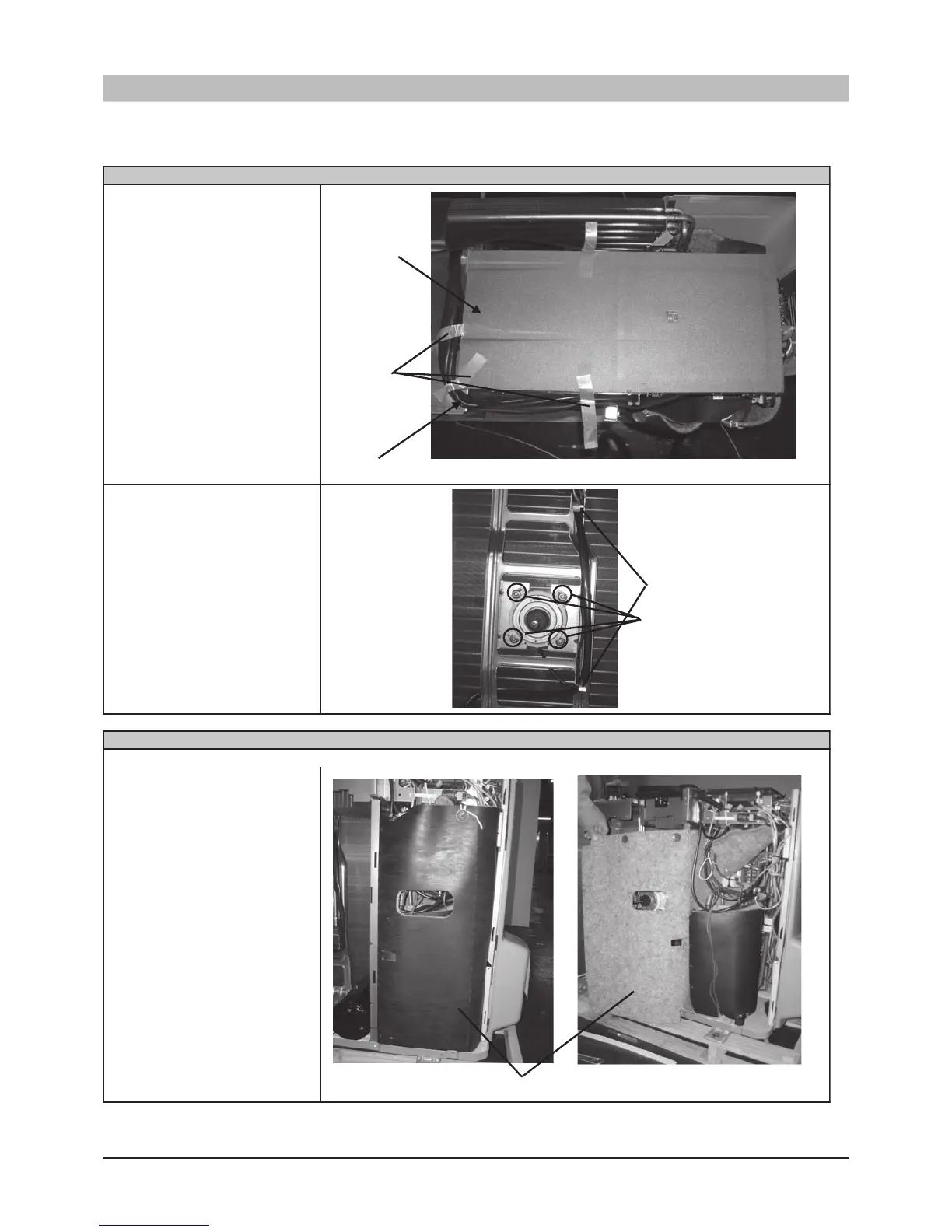

Fan and fan motor (FMo1)
6.
Remove tapes and fan cable
7.
Release 2 metal clamps
8.
Loosen 4 screws and remove
fan motor
Compressor (CM)
1.
Untie the strings and remove
the outer insulation
Fan cable
4 screws
Outer Insulation
T
apes
Control box
2 metal clamps
FDCW71VNX
Component replacement
185
187
