Mitsubishi MT300 User Manual

Installation
-
65
-
'10 • HM-T-149
Connection of external heat source
Connect an external heat source such as gas or oil boiler to
(XL8) (in) and (XL9) (out) on indoor unit (dimension G1
internal).Tousetheseconnections,thecorresponding“Punchout”
parts in the outer panel must be removed. Also cut off the
insulation above the connections.

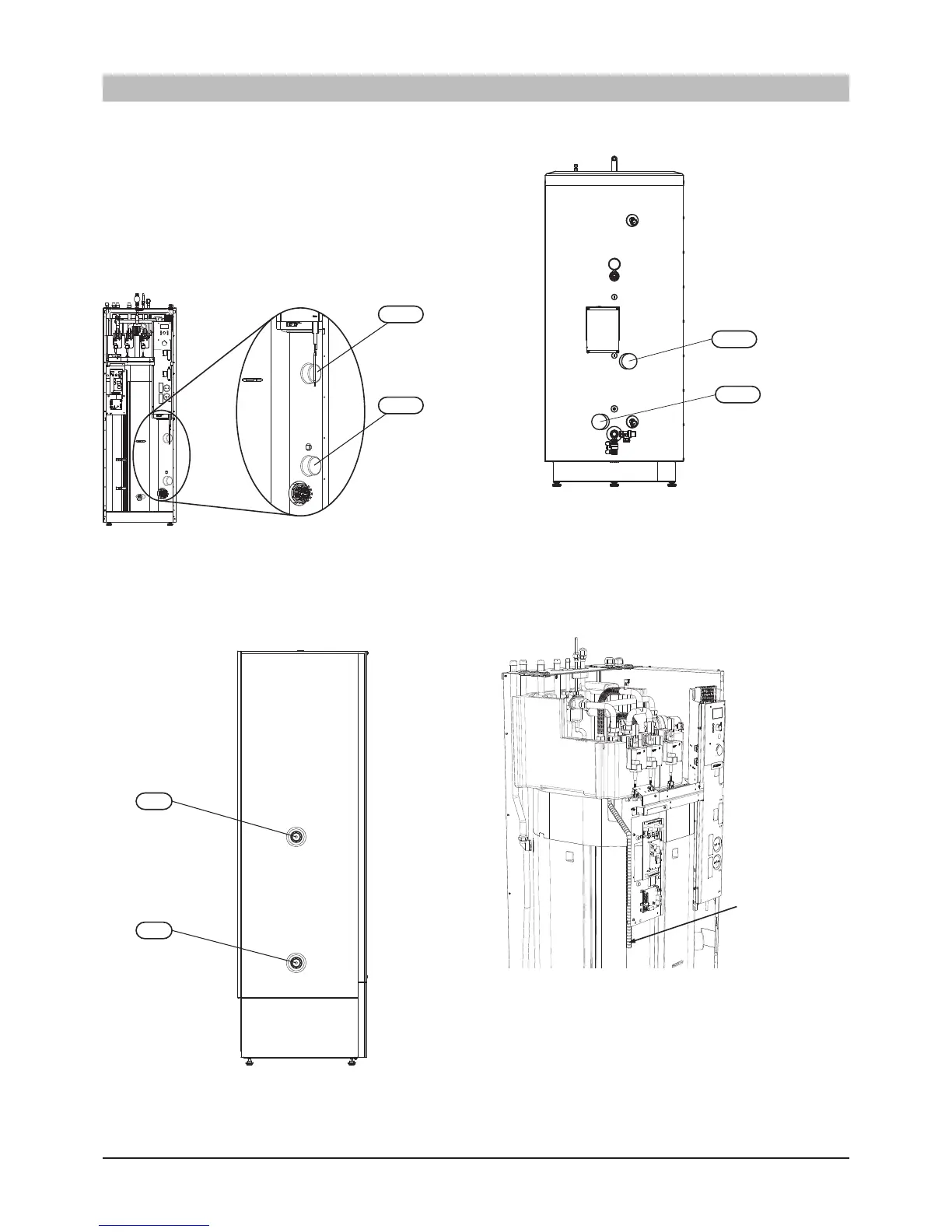

<HMA100V, HMA100VM>
<HMS140V>
HMS140V doen’t have a port to connect external heat source but
MT300 and MT500 have it.
MT300
(Parallel thread, G1)
(Parallel thread, G1)
MT300
1880
30～45 (adjustable)
600
599
505050 250
308100
XL8
XL9
XL3
XL4
XL24
XL23
Symbol contents
XL3 Cold water R1 ext.

1

XL4 Hot water R1 ext.

1

XL8 External heat source in G1 int
XL9 External heat source out G1 int
XL23 Circulation supply R1 ext.

1

XL24 Circulation return R1 ext.

1

XL8
XL9
(Parallel screw, G1)
(Parallel screw, G1)
Outdoor unit installationIndoor unit installation
MT500
Waste exchanger part (HMA100V, HMA100VM
only)
Indoor unit has a waste at the exchange section. A hose routes
any waste water past the product’s electronics to minimise the
riskofdamage.Ifnecessary,ahoseextensioncanbeconnected.
Hose to waste
Connecting refrigerant pipes
See Installation manual for outdoor unit.
(Tapered thread, R1)
XL9
XL8
(Tapered thread, R1)
