190
-
Service
'10
•
HM-T-149
FDCW100VNX

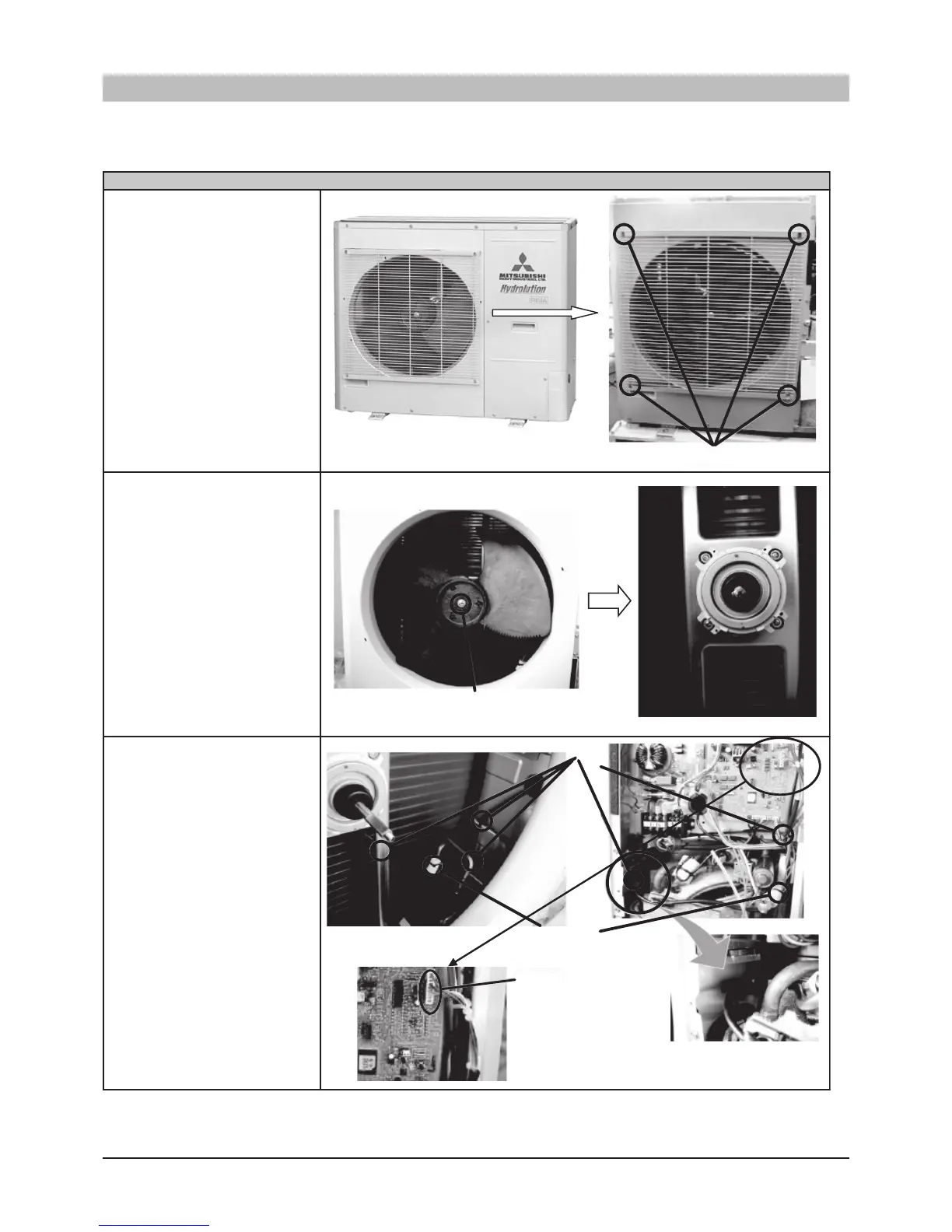

Fan and fan motor (FMo1)
1.
Loosen 4 screws and remove
the fan grille
2.
Loosen the nut and remove
the fan propeller
3.
Detach the clamps and cut
off the straps
4.
Disconnect the connector
of CNF
AN1
Clamps
Straps
CNF
AN1
1 nut
4 screws
Component replacement
