Heating curve offset
It is possible to offset the heating curve chosen in the menu above in order to obtain higher target supply water temperature.
The offset for heating system 1 can be set using the knob on the controller. The set value can be seen in Menu 2.1.1.

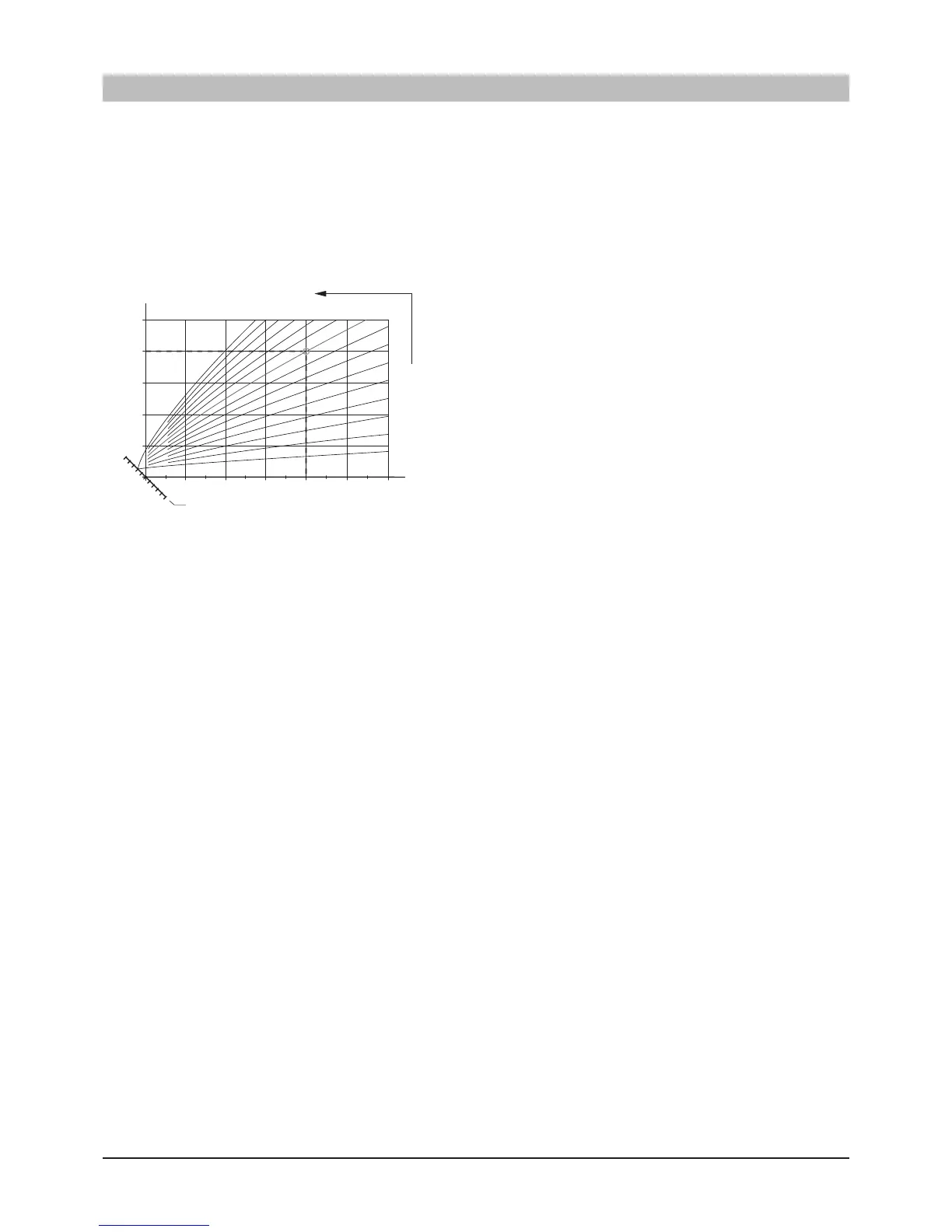

The gure below shows the case that heating curve 9 is chosen with heating curve offset +2. In this case, the target supply water
temperature is 60°C at -20°C outdoor air temperature condition.
Heating curve offset +2
1514 13 12 11 10
8
7
6
5
4
3
2
1
- 40 oC
UTETEMPERATUR
- 10
0
10
- 5
+ 5
30
40
50
60
70
oC
FRAMLEDNINGSTEMPERATUR
- 20 - 30
FÖRSKJUTNING
VÄRMEKURVA (+2)
9
V
Ä
RMEKURVA
HEATING CURVE
OFFSET HEAT CURVE
Outdoor air temperature
Supply water temperature
The offset for heating system 2 can be set in Menu 3.1.
Operation control function by the indoor unit controller
