18
-
'10
•
HM-T-149
T

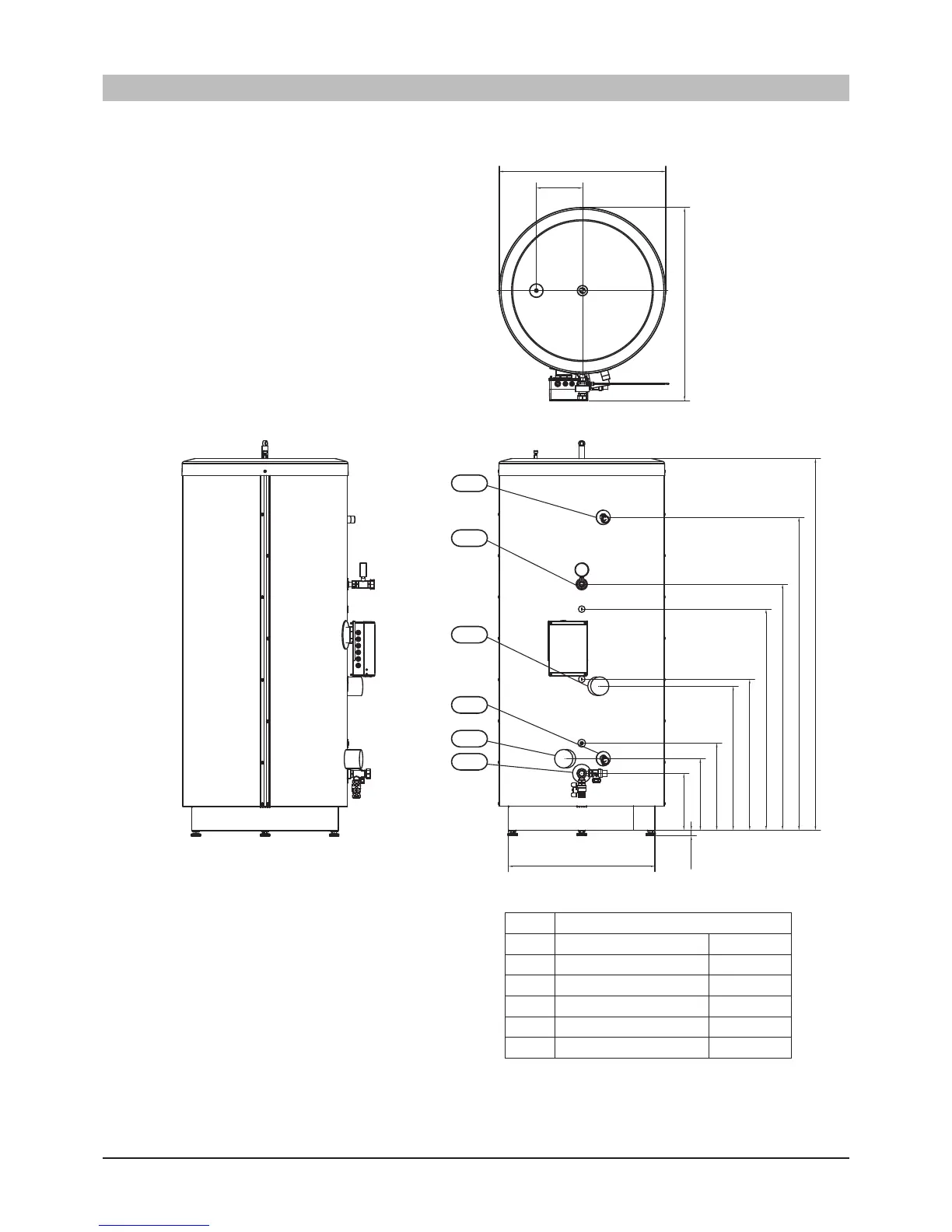

echnical data
MT500
φ
668
259
326
397
657
688
1008
1
122
1427
1695
20-55
XL4
XL8
XL3
XL9
XL24
XL23
φ
759
210
879
Symbol
contents
XL3
Cold water
G1 ext.
（
1˝
）
XL4
Hot water
G1 ext.
（
1˝
）
XL8
External heat source in
G1 int
XL9
External heat source out
G1 int
XL23
Circulation supply
28 mm
XL24
Circulation return
28 mm
Dimensions
18
20
