198
-
Service
'10
•
HM-T-149
FDCW140VNX

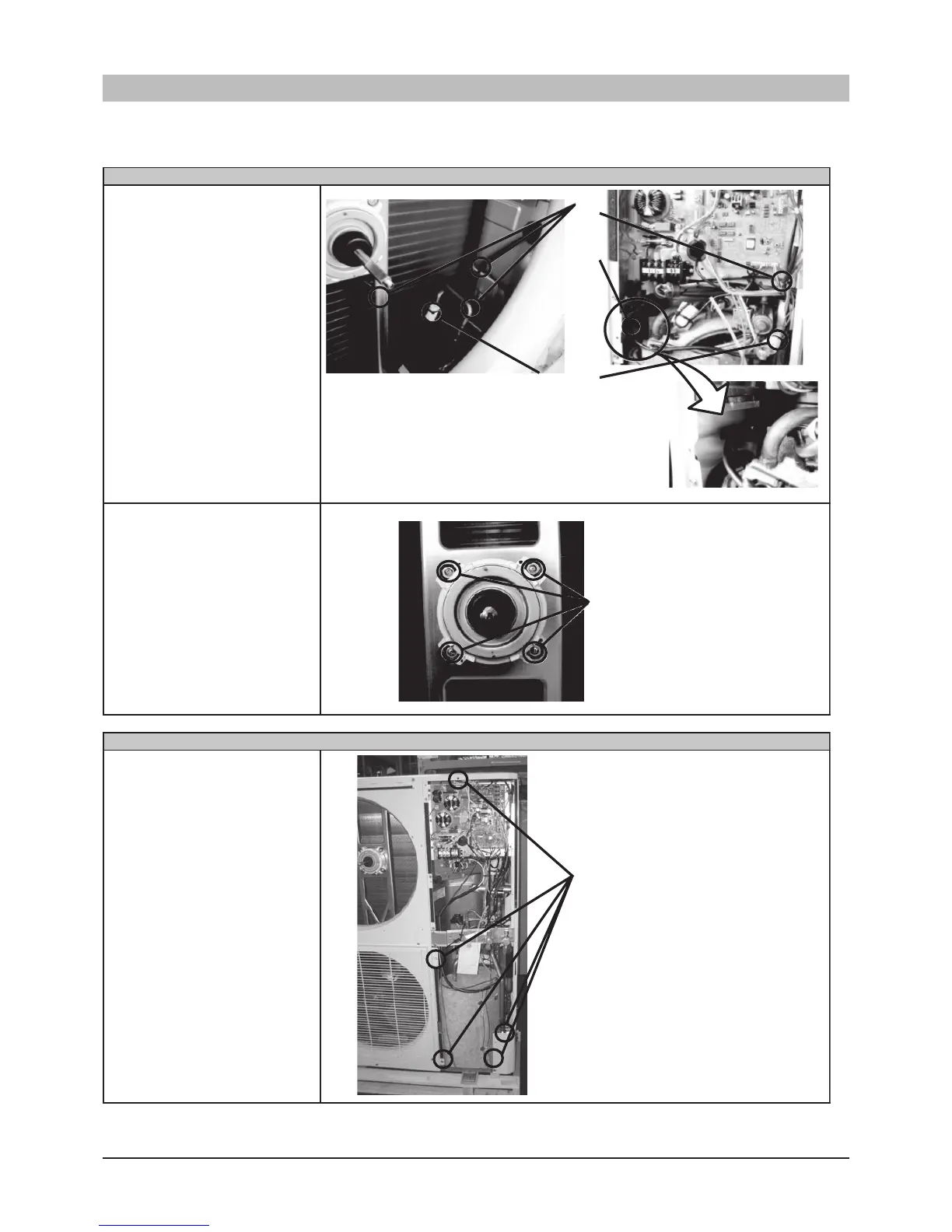

Fan and fan motor (FMo1& FMo2)
4.
Detach the clamps and cut
off the straps
5.
Loosen 4 screws
6.
Remove the fan motor
(FMo1 and/or FMo2)
Compressor (CM)
1.
Loosen 5 screws and remove
the service panel
Clamps
Straps
4 screws
5 screws (short)
Component replacement
198
200
