2.5 Cooling circuit connection
The MSD Servo Drive has a capacity of up to 0.5 l of coolant depending on the size.
After the disconnection of the connections, liquid may be left in the device and escape
if the device is tipped. We recommend the usage of a self-sealing liquid coupling (not
included in the scope of supply) to prevent the coolant escaping and to make it possible
to disconnect and connect in the filled state.
1
2
3
4
5
Key
1) Liquid connection with 3/8 inch inside thread
2) Self-sealing quick-release connection with 3/8 inch outside thread
3) Self-sealing liquid coupling
4) Adapter for hose connection
5) PUR (polyurethane) hose with clip

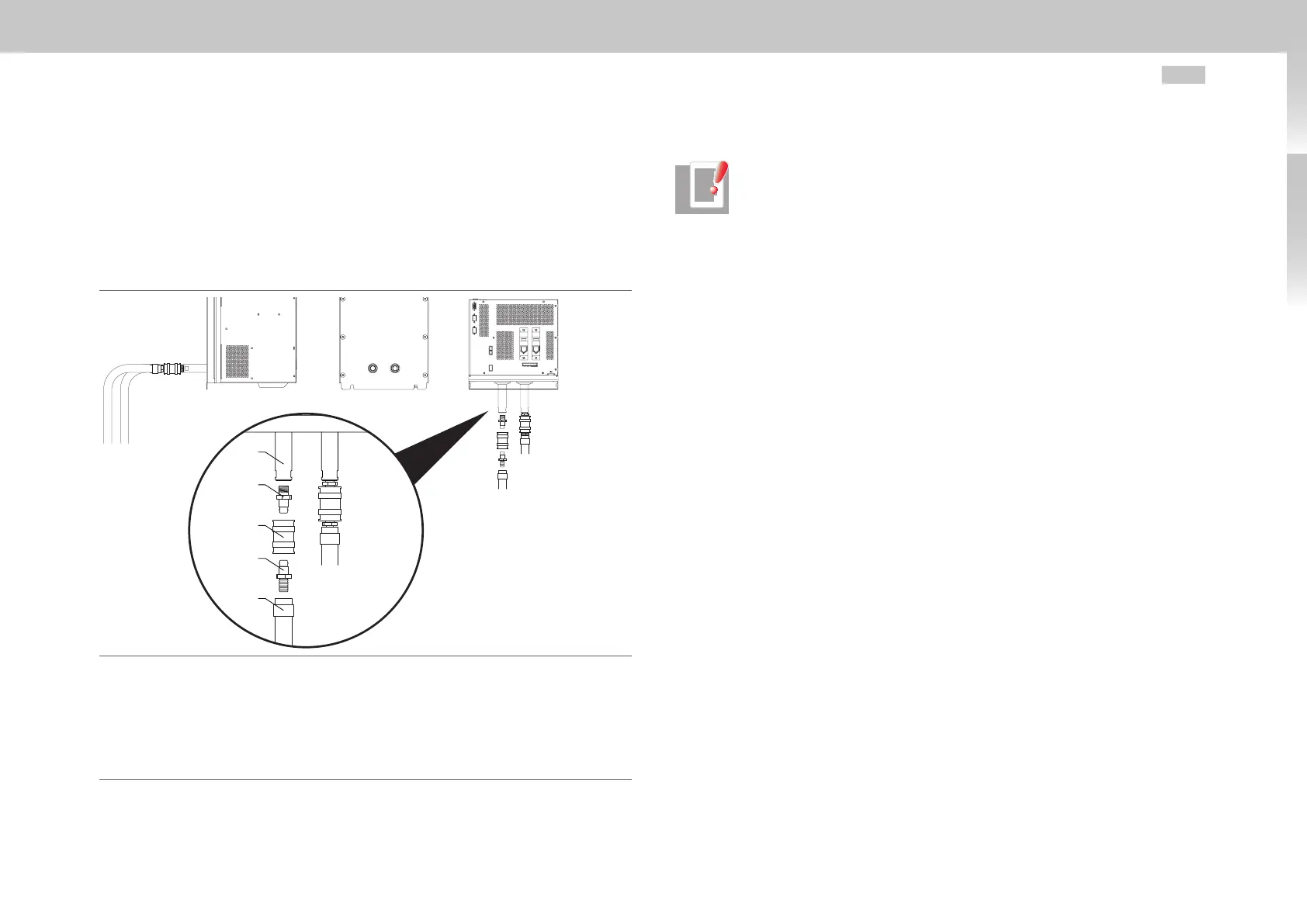

Fig. 2.11 Cooling circuit connection (here: Size 6A)
NOTE: Items 2 to 5 are not included in the scope of supply and are to be
ordered separately.
