MSD Servo Drive DC-AC Operation Manual
48
Id.-No.: CA97554-001 Date: 06/2012
to glossaryto table of contents

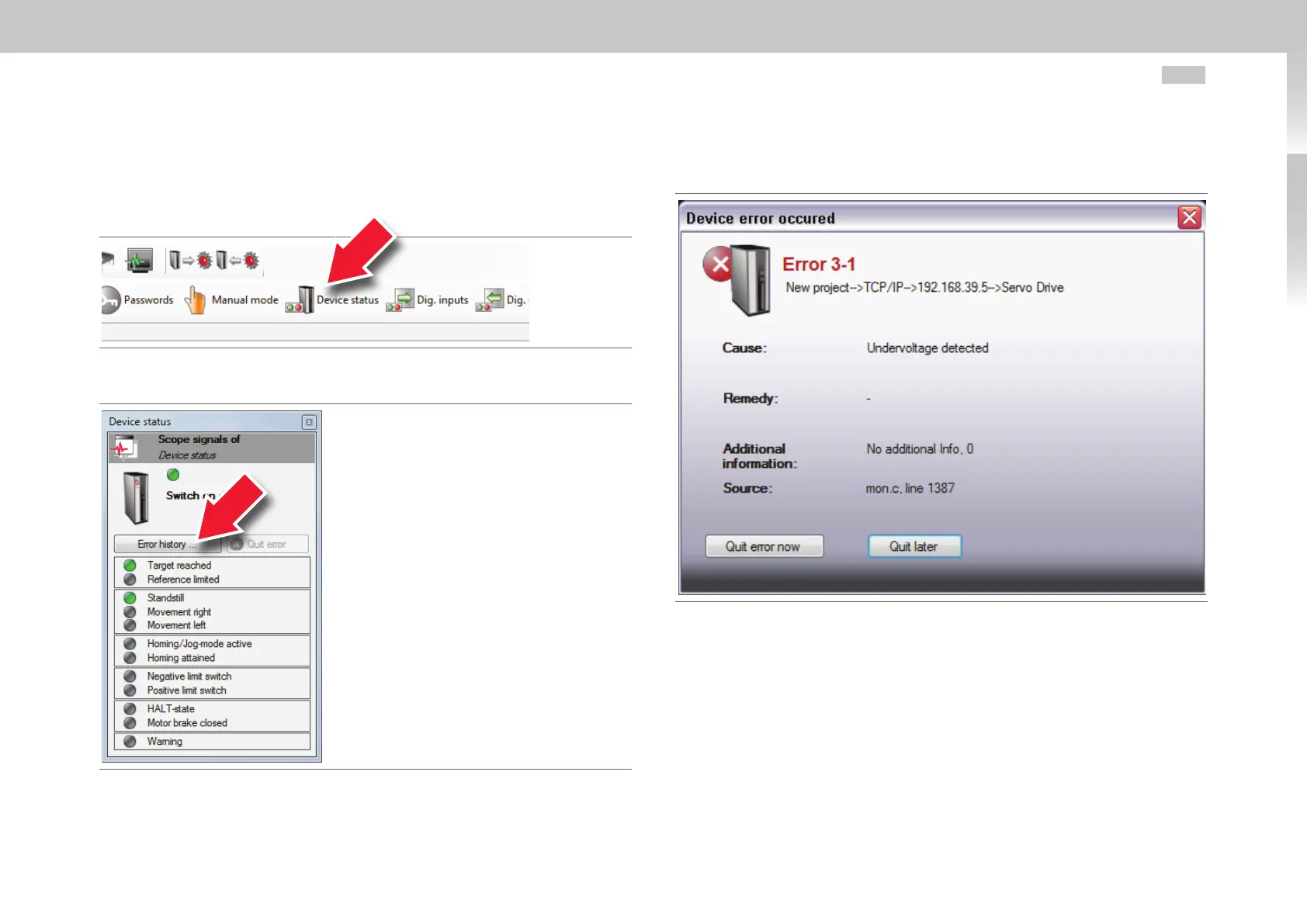

5.2 Status and error display in MDA 5
Click the “Drive status” button on the MDA 5 header to open the drive status window.
Fig. 5.1 “Drive status” button on header
Click the “Error history...” button to call up information on the last 20 occurring errors.
Fig. 5.2 “Drive status” window
When an error occurs a pop-up window immediately appears showing more details
about the current error.
Fig. 5.3 Error message
