MSD Servo Drive DC-AC Operation Manual
44
Id.-No.: CA97554-001 Date: 06/2012
to glossaryto table of contents
4.4.4 Ethernet IP address menu (IP)
An Ethernet TCP/IP port is available as a service and diagnostics interface. The IP address
is factory set to 192.168.39.5. It can be changed using the Moog
DriveADministr Ator5
PC software or by way of the display.
Menu level Pa-
ram-
eter
Value
range
Meaning Explanation
1 2
IP
Iu b0 00..FF IP address
udate Byte0
Setting of byte 0 of the IP address in
hexadecimal format
(e.g. “5“ at 192.168.39.5)
b1 00..FF IP address
udate Byte1
Setting of byte 1 of the IP address in
hexadecimal format
(e.g. “7“ at 192.168.39.5)
b2 00..FF IP address
udate Byte2
Setting of byte 2 of the IP address in
hexadecimal format
(e.g. “A8“ at 192.168.39.5)
b3 00..FF IP address
udate Byte3
Setting of byte 3 of the IP address in
hexadecimal format
(e.g. “C0“ at 192.168.39.5)
Ir - - IP reset to
factory setting
Reset IP address to factory default
(192.168.39.5)
Su b0 00..FF Subnet mask
udate Byte0
Setting of byte 0 of the subnet mask in
hexadecimal format
(e.g. “00“ at 255.255.255.0)
b1 00..FF Subnet mask
udate Byte1
Setting of byte 1 of the subnet mask in
hexadecimal format
(e.g. “FF“ at 255.255.255.0)
b2 00..FF Subnet mask
udate Byte2
Setting of byte 2 of the subnet mask in
hexadecimal format
(e.g. “FF“ at 255.255.255.0)
b3 00..FF Subnet mask
udate Byte3
Setting of byte 3 of the subnet mask in
hexadecimal format
(e.g. “FF“ at 255.255.255.0)
Sr - - Subnet mask
reset to
factory setting
Reset subnet mask to factory default
setting (255.255.255.0)

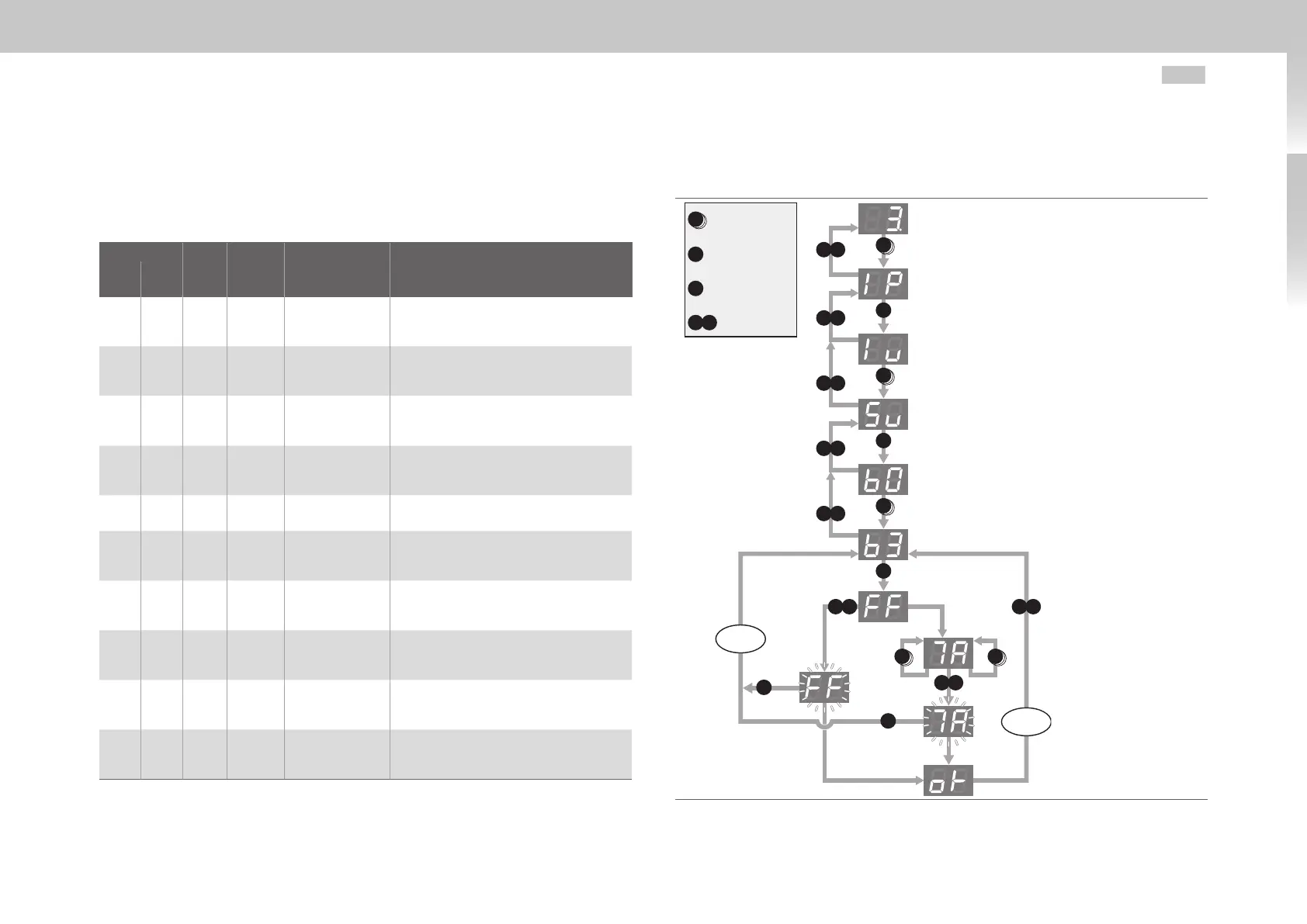

Table 4.9 IP address menu
Example configuration of subnet mask
In this example the subnet mask is changed from 255.255.255.0 to 122.255.255.0.
T1
T2
Tx
Tx
Back
Back
Back
Apply
>5 s>5 s
<5 s
T2
<5 s
T1 T2
T1 T2
T1 T2
Back
T1 T2
Back
T1 T2
T1 T2
T1 T2
T1 T2
Value NOT
saved
T1
T2
T1
T1
Back
T1 T2
T2
Press button Tx
(x=1, 2) repeatedly
until desired menu
appears on display
Press button Tx
(x=1, 2) once
Press any button
Press button T1 and T2
simultaneously
Value
saved
Fig. 4.2 Example configuration of subnet mask
