moog
MSD Servo Drive DC-AC Operation Manual
32
Id.-No.: CA97554-001 Date: 06/2012
to glossaryto table of contents
3.12 Encoder connection
All encoder connections are located on the top of the unit.
3.12.1 Encoder connection of servo motors
Please use the ready made-up motor and encoder cables from Moog GmbH to connect
the servo motors.
3.12.2 Matching motor/encoder cable to servo drive
Compare the rating plates of the components. Make absolutely sure to use the correct
components according to variant A, B or C!
Resolver
high-resolution encoder
high-resolution encoder
Variant A
Variant B
Variant C
X (optional X )
78
X
6

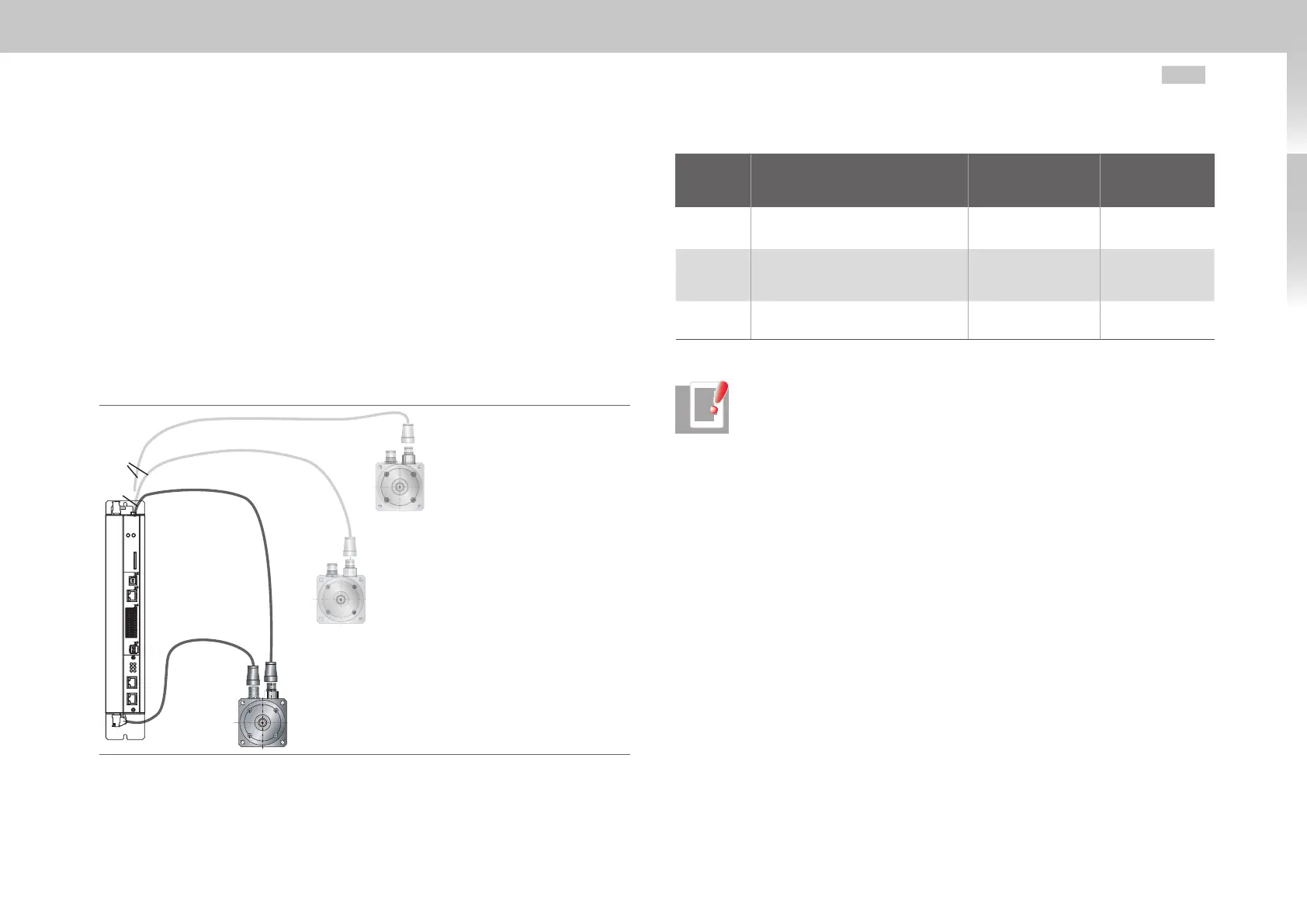

Fig. 3.12 Matching motor/encoder cable
Motor (with installed encoder) Encoder cable
Connection
of the
servo drive
Variant A
with resolver
without further option
C08335-011-yyy X6
Variant B
Sin/Cos multi-turn encoder
with SSI/EnDat interface
CA58876-002-yyy X7
Variant C
Sin/Cos multi-turn encoder
with HIPERFACE® interface
CA58877-002-yyy X7
Table 3.7 Variants of motors, encoder type and encoder cable
NOTE: Do not split the encoder cable, for example to route the signals via
terminals in the switch cabinet. The knurled screws on the D-Sub connector
housing must be tightly locked!
