7.2 Operation with AC-AC servo drive as supply
NOTE: The switch cabinet layout shown here is intended as an illustration
only. It does not guarantee general suitability for a specific application or
compliance with relevant directives. You should check and assess the layout
you are planning in each individual case with regard to the specific applica-
tion and compliance with locally applicable directives. Moog GmbH can
provide no guarantee as to the applicability of the following switch cabinet
layout.
ID number Meaning
1 Mains cable
2 Main switch
3 Fuse
4 Mains filter
5 not present
6 Mains contactor
7 not present
8 not present
9 AC-AC servo drive for co-supply of the DC-AC servo drive
10 DC-AC servo drive
11
DC link power supply to
D C- AC servo drives
12
Braking resistor external to
AC-AC servo drive
13 Motor cables
14 Control (higher-level)
Table 7.2 Key to switch cabinet layout
1
ON
0
OFF
0
PWR
LOCK
CF
P
o
w
er
R
e
s
et
RJ-45/Line
RS 232
COM
Data
S
tatus
< 0,2 m
2 m
1
6
4
3
2
12 9
10
10
10
10
11
14
13

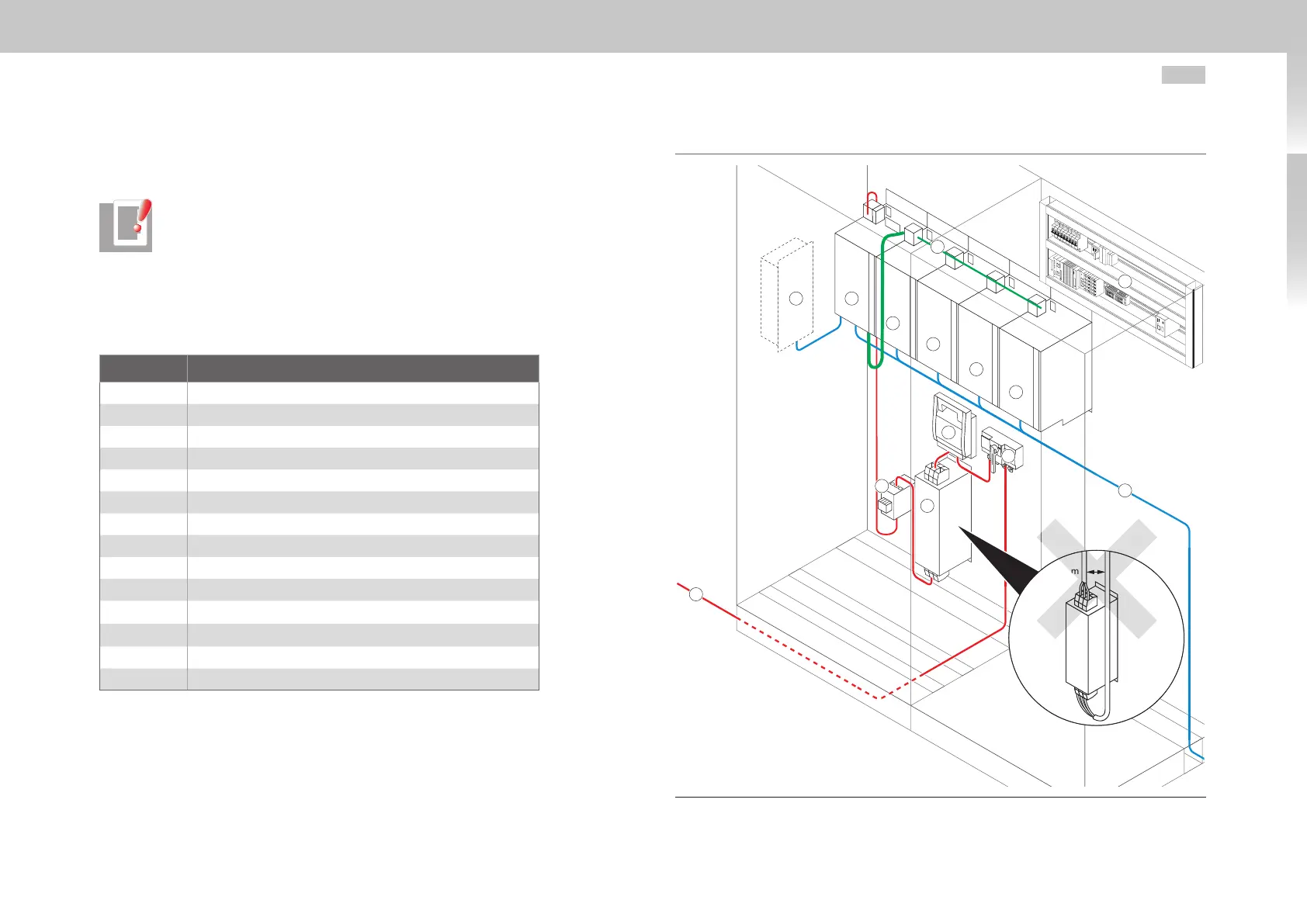

Fig. 7.4 Switch cabinet layout, multi-axis system with supply by AC-AC servo drive (as from Size 5)
