4.4 Integrated operator control unit and
MMC card
The built-in operator control unit permits diagnosis of the MSD Servo Drive. In addition,
use of the MMC card aids serial commissioning without a PC. The operator control unit
comprises the following elements, all located on the front of the device:
• 2-digit 7-segment display (D1, D2)
• two pushbuttons (T1, T2)
• MMC slot (X1)
Moog MMCplus cards of type SC-MMC128 can be used (128 MB memory and 3.3
V supply voltage, for further details see MSD Servo Drive Ordering Catalog).

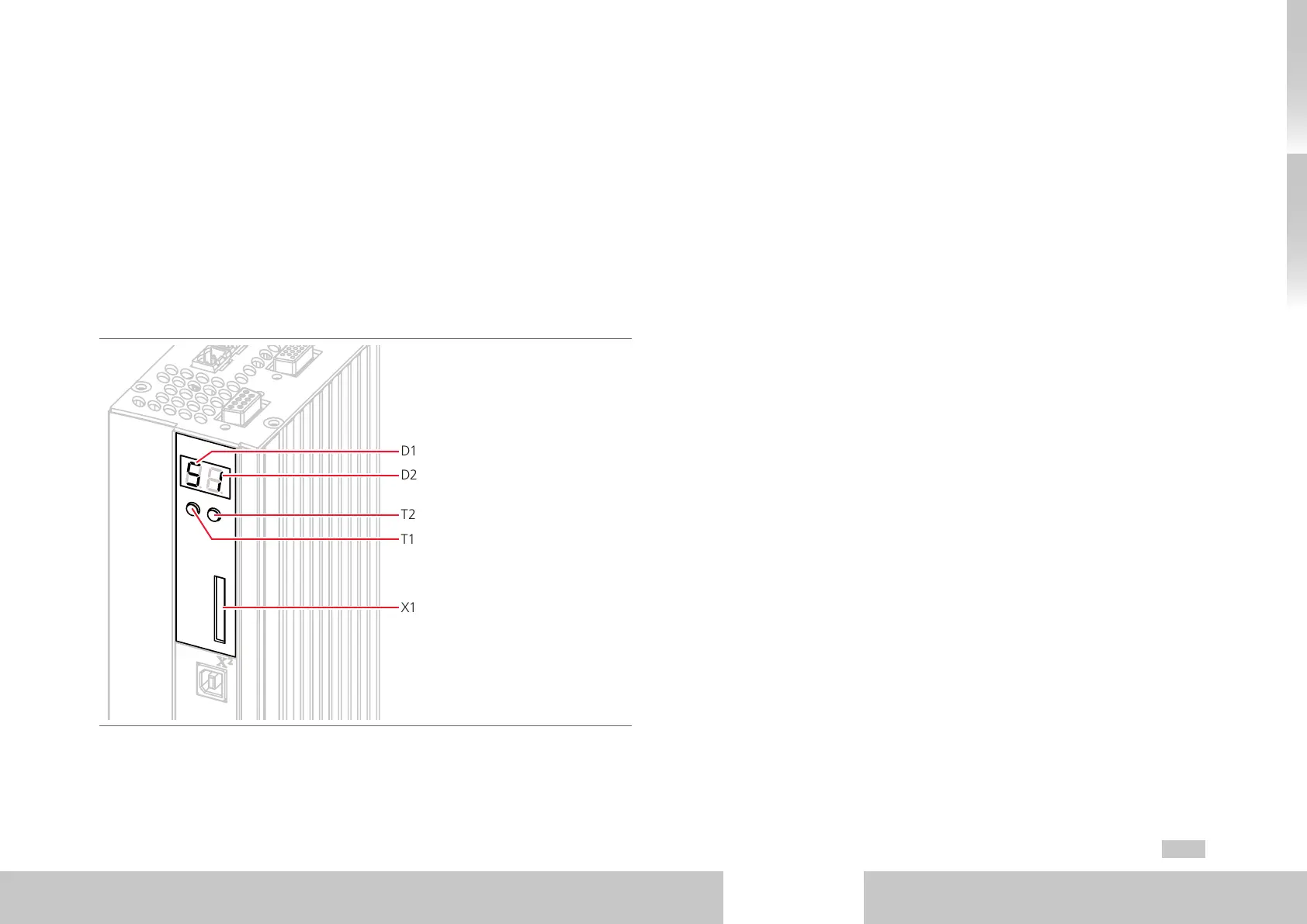

Fig. 4.1 Integrated operator control unit
D1
D2
T2
T1
X1
The following functions and displays are available:
• Display of device state (see section5.1.1 starting on page47)
The device state is displayed after switching on the control voltage. If no input is
made via the keypad for 60 seconds, the display switches back to the device state.
• Display of device error state (see section5.1.2 starting on page47)
If a device error occurs the display immediately switches to show the error code.
• Parameter setting (display “PA“) (see section4.4.3 starting on page43)
Reset device parameters to factory defaults and data set handling by way of the
MMC card
• Ethernet IP address setting (display “IP“) (see section4.4.4 starting on page44)
Setting of the Ethernet IP address and the subnet mask
• Fieldbus settings (display “Fb“) (see section4.4.5 starting on page45)
Setting of fieldbus address for example
• Firmware update with MMC card (see section4.4.6 starting on page46)
