Ԝ Selecting the cutting reference position
This setting is valid when the cutting format has a cutting reference position selectable by a
mark.

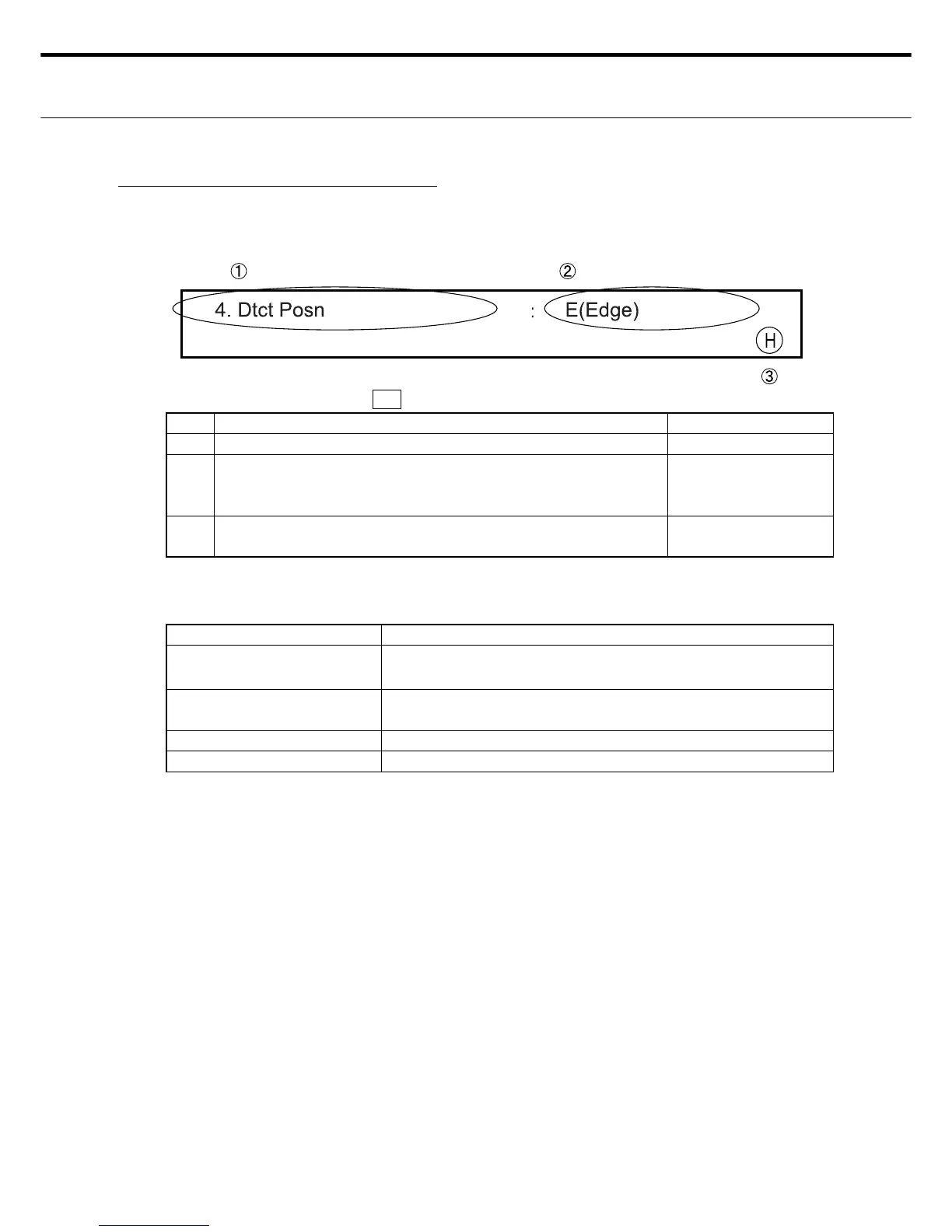

٤ LCD display for selecting the cutting reference position
LED display Power LED: ON , READY : OFF, ERROR: OFF
No. Display information Display Changes
Ԙ Shows that this is for selecting the cutting reference position INOP (Fixed screen)
ԙ Use to select the cutting reference position. Changes between
"S (Edge)" and "M (Mark)" each time the UP/DOWN switch is
pressed.
OK :
"S (Edge)" and
"M(Mark)"
Ԛ An "H" is shown when the displayed setting has been saved. A
blank space is shown in the setting change state.
OK. Shows "H" or
blank display.
Note 1: The only location settable by the user is ԙ .
٤ Cutting reference position switches
Switches Description
UP - DOWN Use for selecting the cutting reference position. Enabled by ԙ .
ENTER Use to enter the display information. (After entering, an "H" ap-
pears in Ԛ ).
CLEAR Shows the default (reset value).
MENU Setting Entry mode; Shifts to Menu screen 1.
Note 1: The data changes are not entered (stored) if the Menu switch is pressed before the
Enter switch was pressed.
Note 2: If an error such as Cover-Open was detected before pressing the Enter switch then
after eliminating the error, operation shifts to Standby mode without storing any
changes.
Cutting paper having our company’s own designated cut mark printing is required when
the "M (mark)" cutting mark was selected for the cut reference position.
See the cutting mark specifi cations on P. 50 for more information.
