Chapter 3
Radio Controls
This chapter explains the buttons and functions to control the radio.
3.1

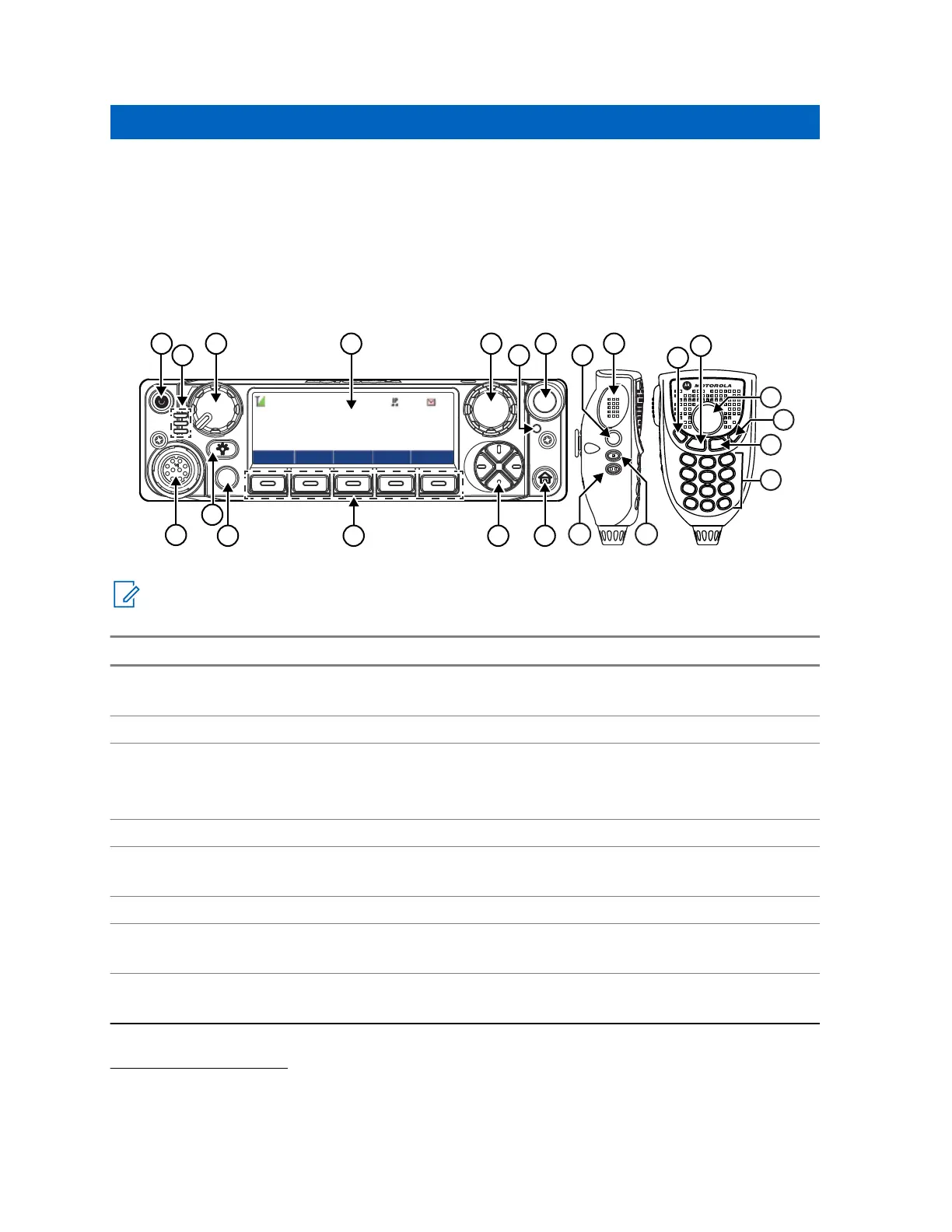

E5 Control Head and Microphone
3 4 5 7
62
1
13
12
11 10 9 8
P
Zone 1
Channel 1
Call RSSI Zone Chan Scan
18
19
22
20
21
23
15
14
16
17
NOTE: The microphone is not part of the radio. It is an optional accessory.
Number Description
1 Power Button
Press and hold to turn on/off your radio.
2 LED Indicators
3 Volume Knob
Rotate clockwise to increase the volume.
Rotate counterclockwise to decrease the volume.
4 Screen Display
5 Mode Knob
Rotate this knob to scroll through the channel list.
6
*
Bluetooth Pairing Location Indicator
7
†
Orange Button
This button is usually programmed as the Emergency button.
8
†
Home Button
Press to return to the Home screen.
*
Depending on the version, your mobile radio could support either Bluetooth technology or Wire-
less Pair. Check with your dealer or system administrator for more details of all the features
supported.
†
These radio controls/buttons are programmable.
MN006147A01-AE
Chapter 3: Radio Controls
20
