6816985H01-F
February 14, 2012

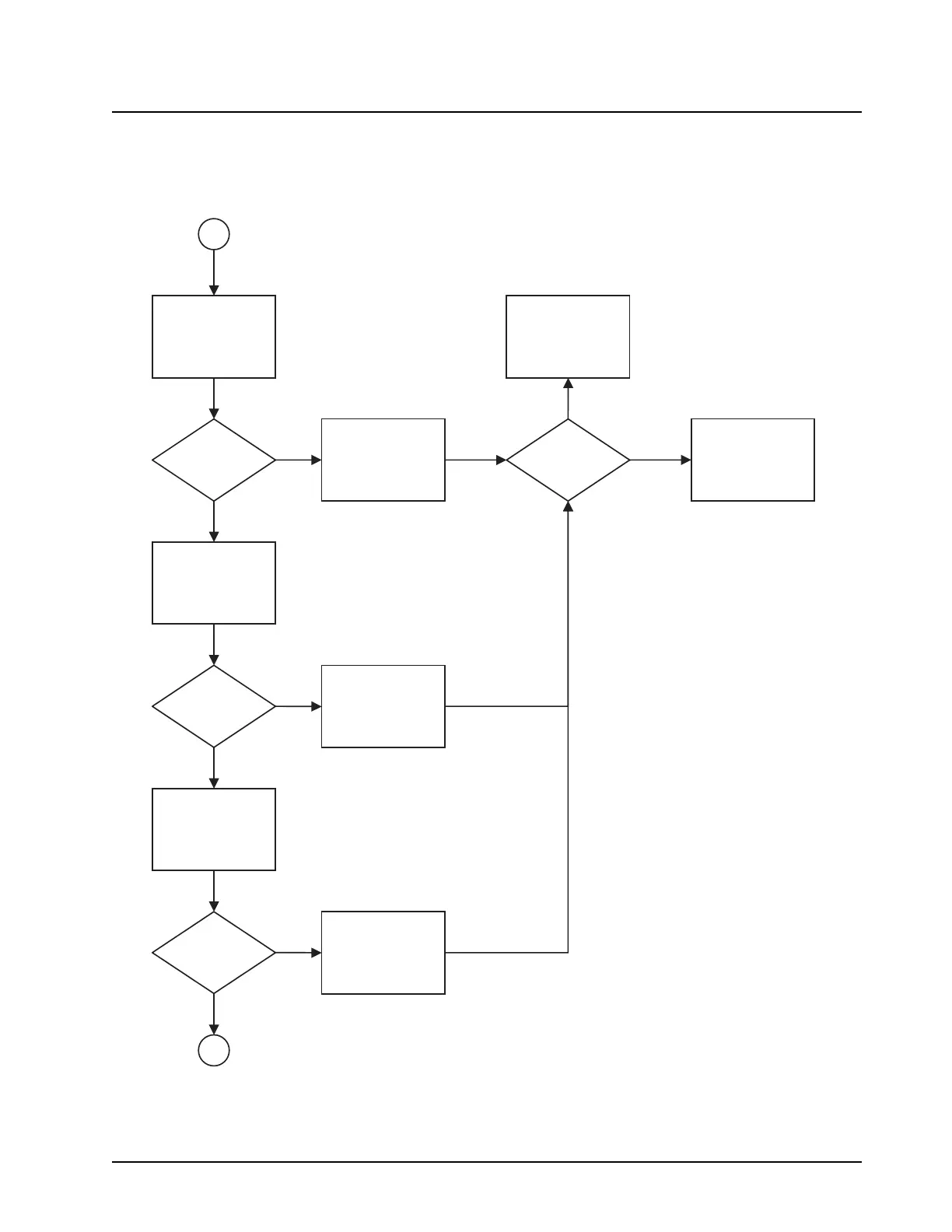

UHF2 Troubleshootin
g Charts:
DC Supply Fail Troubleshooting Cha
rt (2 of 3)
6.3-7
6.3.8
DC Supply Fail T
roubl
eshooting Chart (2 of 3)
Check voltage VCC5 at
L705
Voltage
=5V
+/- 5%
Check voltage at C517
Yes
No
Voltage
=7.5V
Voltage
=3.0V
+/-5%
Replace U701
Yes
No
Check voltage RFSW_B+
at C730
No
Yes
3
Restart from Chart 6.7
Check U502 and D513,
replace it if necessary
Problems
solve?
End
Yes
No
Replace Q703
