9.5-22
900MHz Schematics, Board
Overlay
s, and Parts Lists
February 14, 2012
6816985H0
1-F

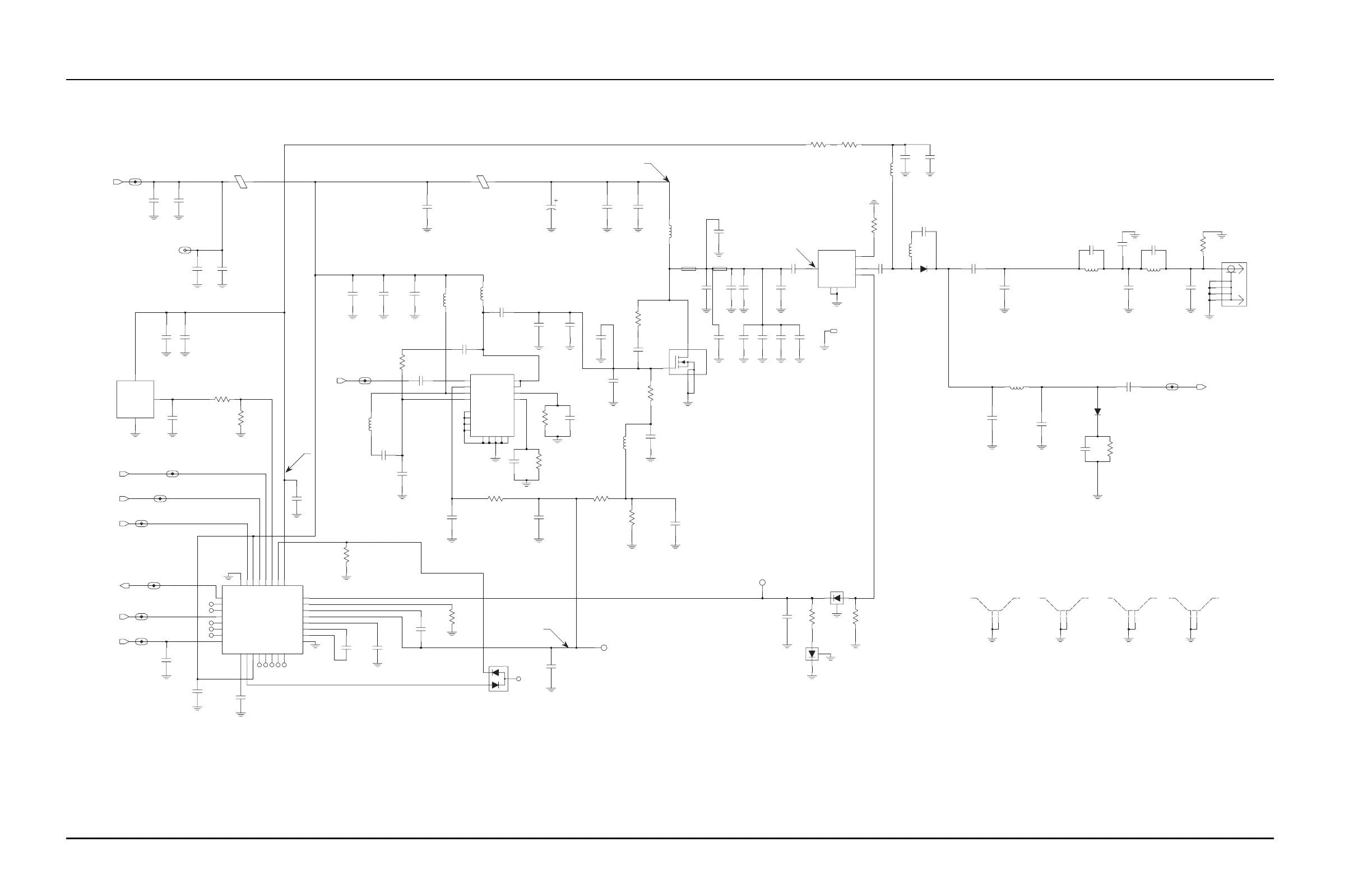

Figure 9.5-21. PMLF4036B T
ransmitter Schematic
C157
0.10uF
IF100
39pF
C156
UNSW_B+
E101
BEAD
IF101
C155
39pF
C154
0.10uF
0.10uF
C152
C153
47pF
Temp Sense
U103
3
GND
POS
1
VOUT
2
LM50
13K
R108
R109
39K
47pF
C151
IF102
IF104
IF103
SPI_MOSI_A
SPI_CLK_A
UNIVERSAL_SPI_CS
IF105
IF108
IF954
D2A3
RESET_OUT
5V
0.10uF
C147
39pF
C149
47pF
C148
NC
NC
NC
NC
NC
PCIC
VLIM
V10
V45
V5EXT
VAR1
VAR2
VAR3
VG
VL
QX
RFIN
RSET
T1
TEMP
CQ
CQX
DATA
F168
GND1
GND2
INT
ANO
BPOS
CEX
CI
CJ
CL
CLK
H99S4
U102
Q
RS
RX
NA
31
30
28
25
32
27
29
26
6
1
2
8
4
3
5
7
14
16
15
11
10
12
13
9
NC
NC
NC
NC
NC
19
17
20
18
24
21
23
22
680pF
C145
R118
200K
.01uF
C146
C144
680pF
91K
R117
47pF
C142
6.8pF
C102
L110
6.8nH
100pF
C101
6V to 9V
C150
47pF
IF109
39pF
C100
150
R107
TX_INJ
C107
47pF
0.10uF
C108
L107
100nH
11pF
C106
L108
100nH
DNP
DNP
0.10uF
C103
20pF
C110
C112
12pF
C111
4.3pF
12pF
C164
C113
0.1uF
R106
200
DNP
C140
39pF
1K
R110
2K
R113
C104
.01uF
82nH
L111
C161
12pF
10K
R119
C141
47pF
10K
R115
0
R114
DNP
C105
.01uF
R111
6.2K
RF Driver
RFOUT
2
TPVG1
3
TPVG2
1
VCNTRL
VD1
14
12
13
GND4
NC1
8
NC2
9
NC3
10
NC4
15
7
NC5
16
RFIN
6
SRFIC7126
U101
17
EP
G2
11
4
GND1
GND2
5
GND3
C122
0.10uF
E102
88Z01
6V to 9V
1uF
C121
39pF
C120
47pF
C119
Microstrip
Microstrip
L103
11.87nH
C162
12pF
D
G
S1
S2
Q101
Coupler
U106
LDC15B200J0815
R102
51
39pF
C118
IN
3
MAIN_OUT
4
TERMINATE
6
C_OUT
2
GND1
5
GND2
DNP
DNP
50ohms point
C115
1.2pF
C114
15pF
C117
27pF
1
1.8pF
C116
C163
2.5pF
DNP
DNP
DNP
DNP
DNP
M101
C174
39pF
C170
39pF
C172
C171
C173
39pF
39pF
39pF
C139
39pF
TP102
2
D103
51
R104
31
.01uF
C138
D105
R105
620
2V to 5.7V?
NC
D104
39pF
C143
TEST_POINT
TP101
1
2
SHIELD
SH101
1
2
SH102
SHIELD
1
2
SHIELD
SH104
SHIELD
SH103
1
2
C136
12pF
R103
82
IF110
C137
39pF
RX_IN
0.75pF
C134
L117
8.67nH
CR102
C135
0.5pF
R101
82
82
R100
39pF
C123
C124
11pF
L101
150nH
39pF
C125
CR101
L102
27nH
1.8pF
C127
C126
39pF
2pF
C131
L114
7.66nH
2.2pF
C133
7.66nH
L115
C129
0.75pF
0.75pF
C132
2pF
C130
R199
820
CONN_P
J101
875
877
