9.1-12
VHF Schematics, Board Overlays, and
Parts Lists
February 14, 2012
6816985H0
1-F

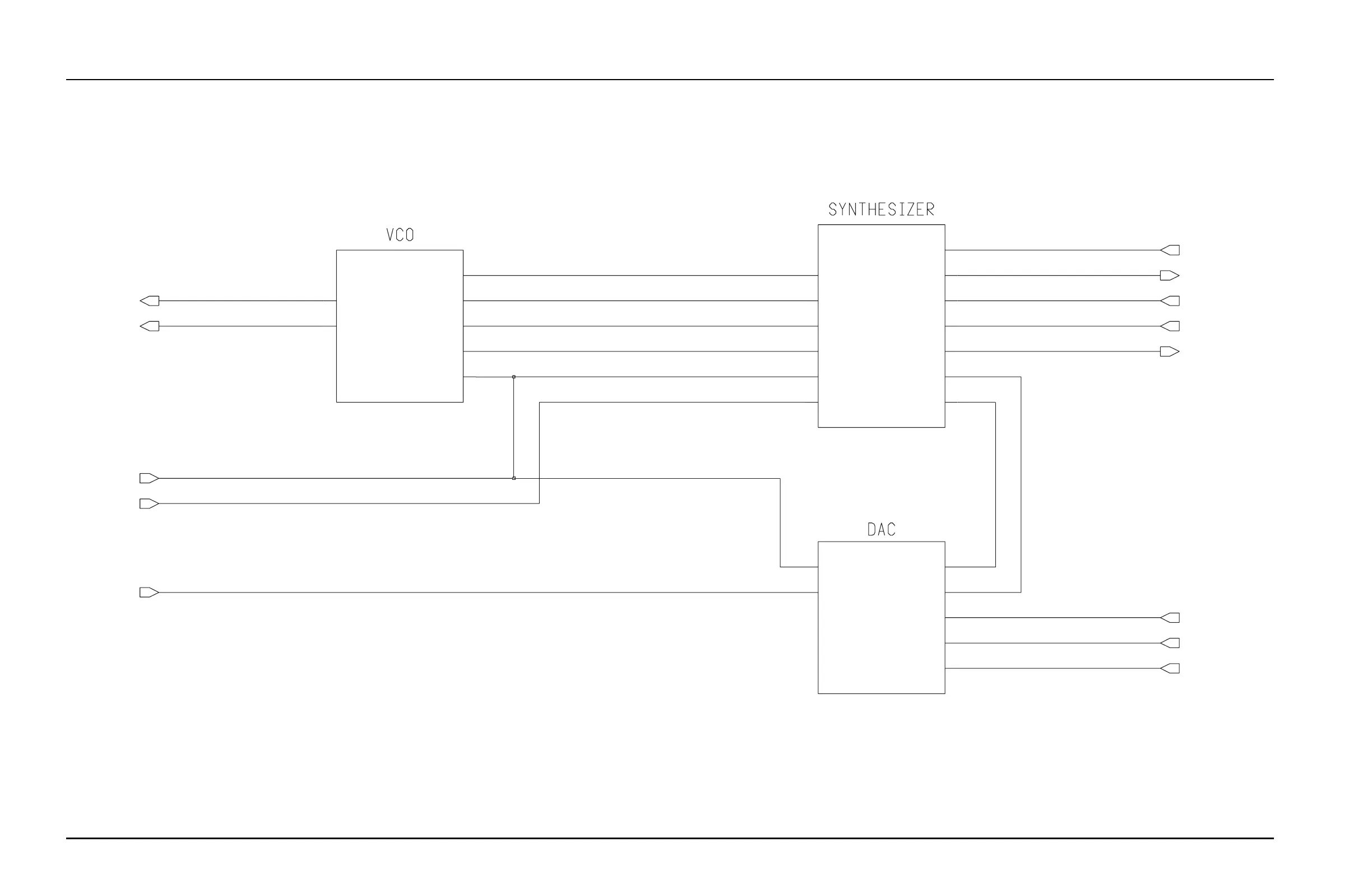

Figure 9.1-1
1. PMLD4303A/ PMLD4303D/ PMLD4264B/
PMLD4264E Frequency Gen
eration Unit (FGU
) and Digital to Analog Converter (DAC)
Schematic
SPI_DATA
SYN_SEL
TRB
VCTRL
VMULT1
16.8MHZ
4.6VSF_OUT
ANA_3V
F5V_IN
LOCK
MODIN
PRES_IN
SPI_CLK
4.6VSF_OUT
ANA_3V
PRES_IN
RX_LO_IN
TRB
TXRF_OUT
VCTRL
RX_OSC
TXRF_OUT
TX_SSI_FSYNC
TX_SSI_DATA
TX_SSI_CLK
SC_FILT_EN
MOSI
FLCK
LOCK_DET_H
XCVR_5V
ANA-3V
16.8Mhz_OSC_2
SYN_SEL
ANA_3V
MODIN
SC_FILT_EN
TX_SSI_Clk
TX_SSI_DATA
TX_SSI_FSYNC
VMULT1
647
649
