6816985H01-F February 14, 2012
VHF Troubleshooting Waveforms: PP27 Crystal Filter Out 7.1-29

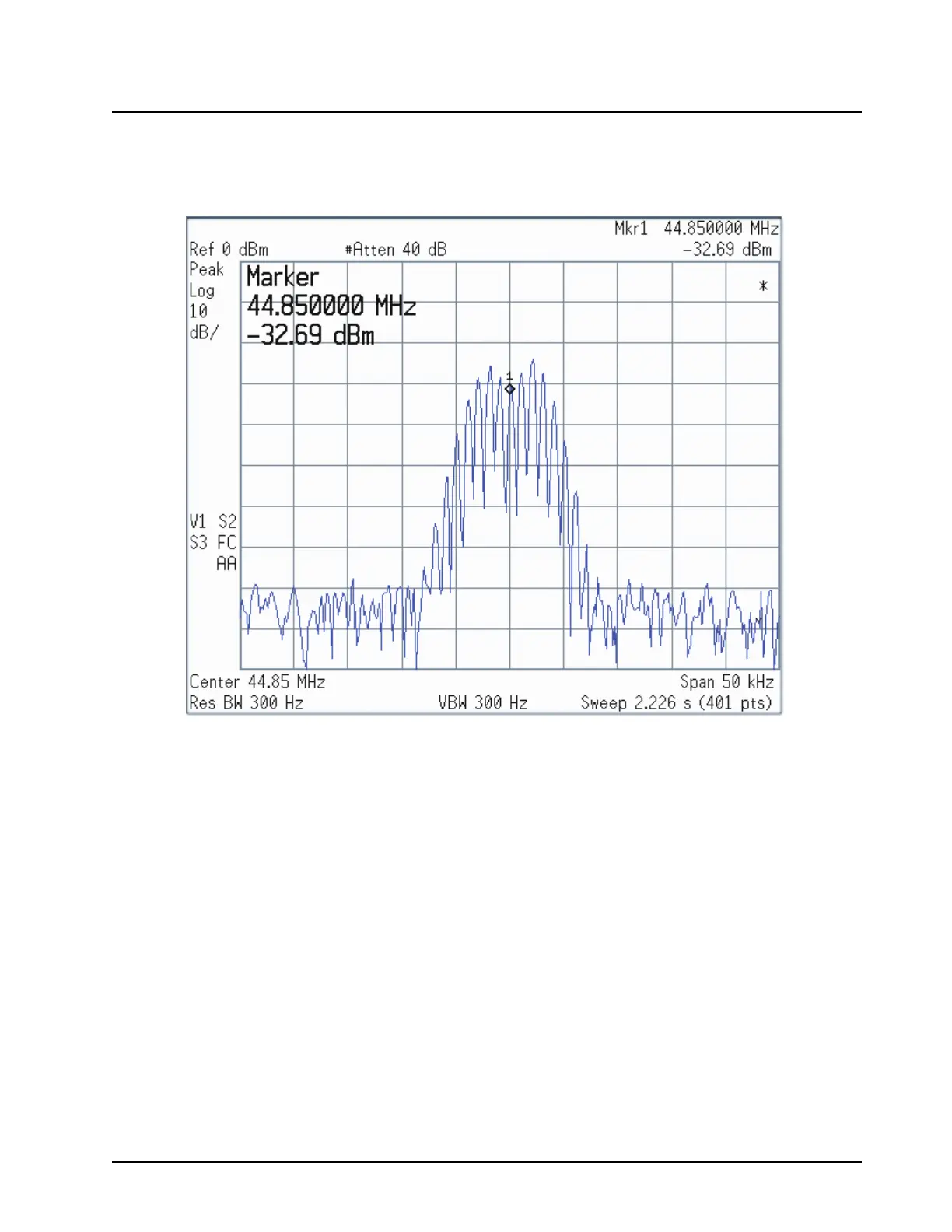

7.1.28PP27 Crystal Filter Out
Probe point: L56.
