6816985H01-F February 14, 2012

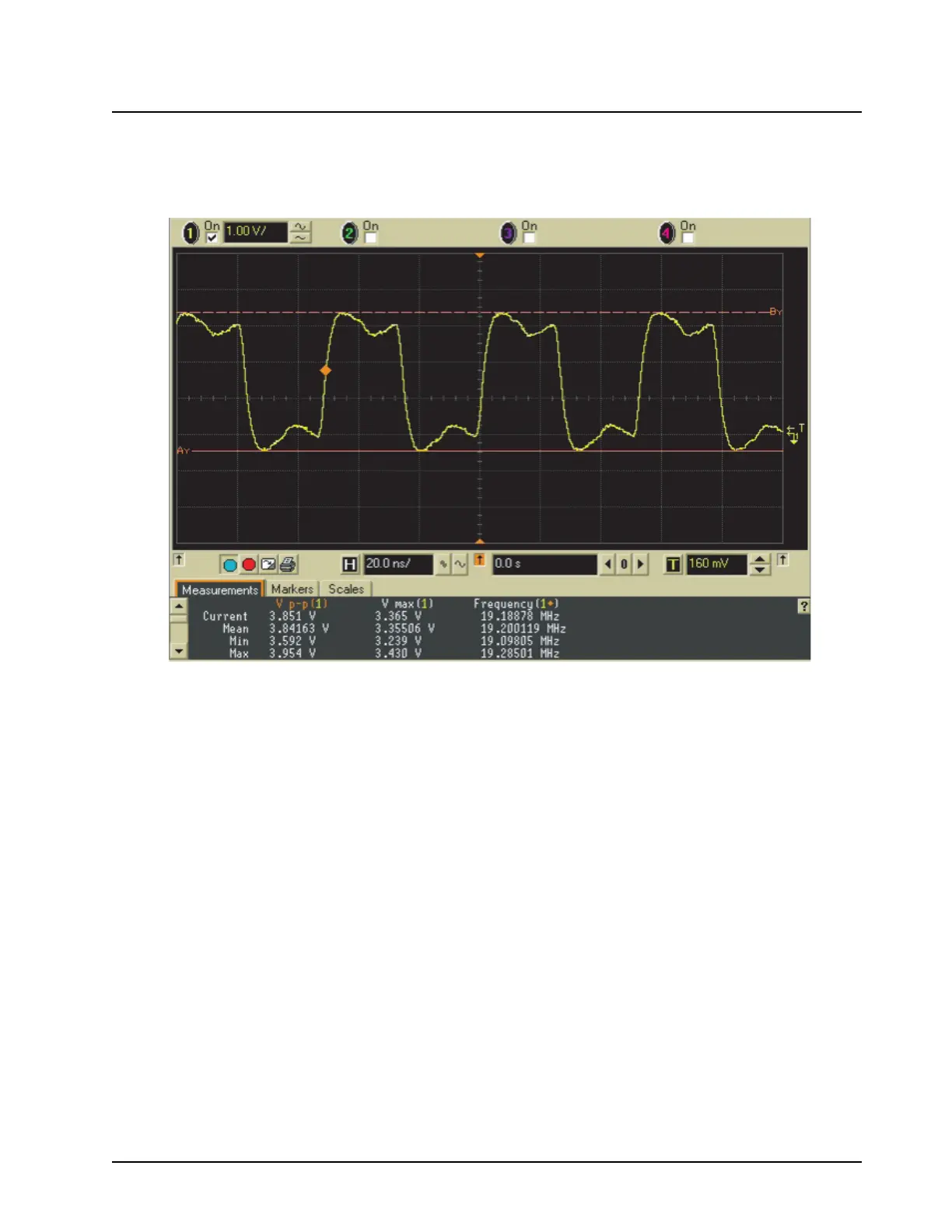

UHF1 Troubleshooting Waveforms: PP17 Frequency Out (19.2 MHz) 7.2-21
7.2.19PP17 Frequency Out (19.2 MHz)
Probe point: 16out (Test Point).
