Motorola ATS 3000

February 14, 2012 6816985H01-F

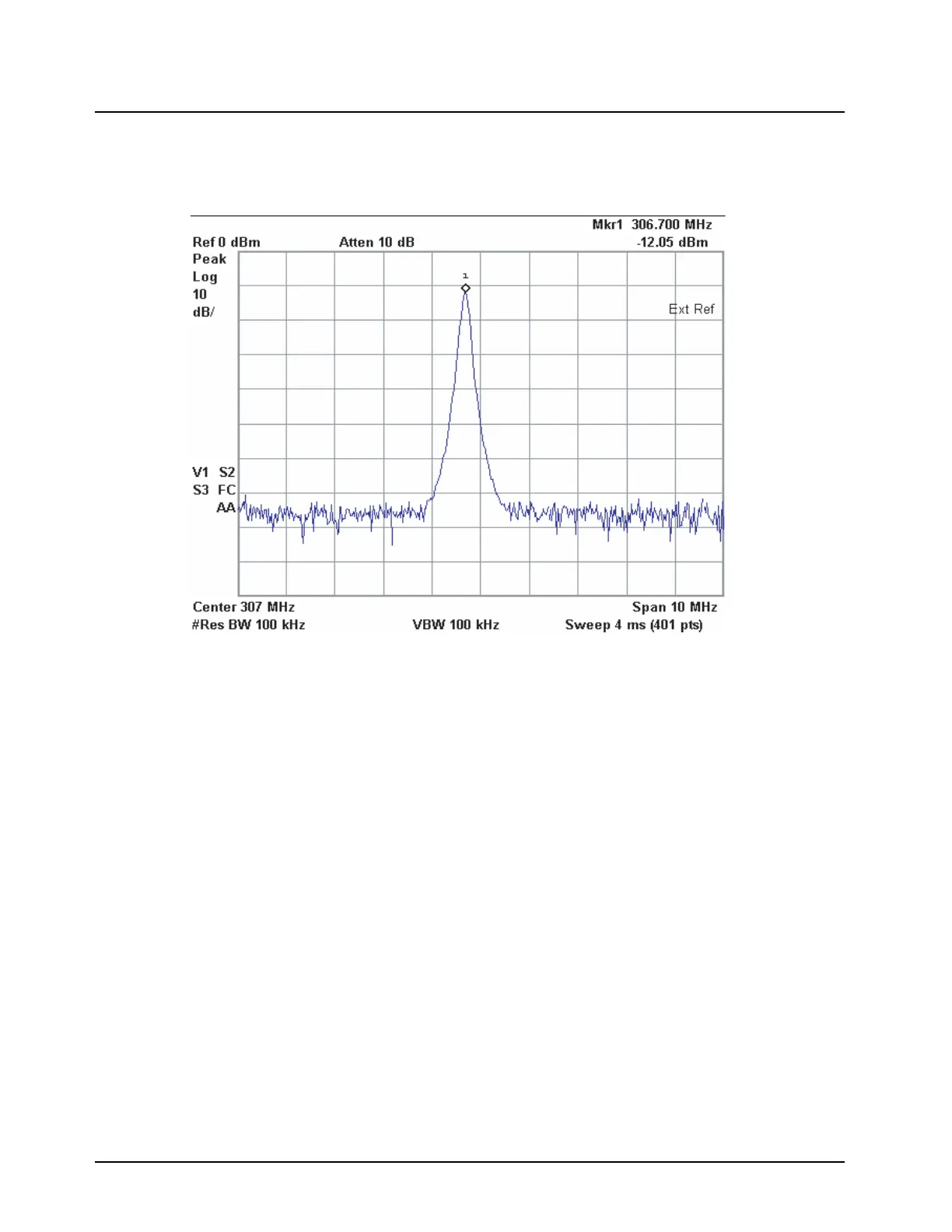

7.2-20 UHF1 Troubleshooting Waveforms: PP15 VCO Output
Probe point:TP298 for LO Output
TP299 for TX Output
TP23 for Preselector Output (located under shield).
Probe point: C261 (located under shield).
Probe point: Prescalar
(
TP23
)
