February 14, 2012 6816985H01-F

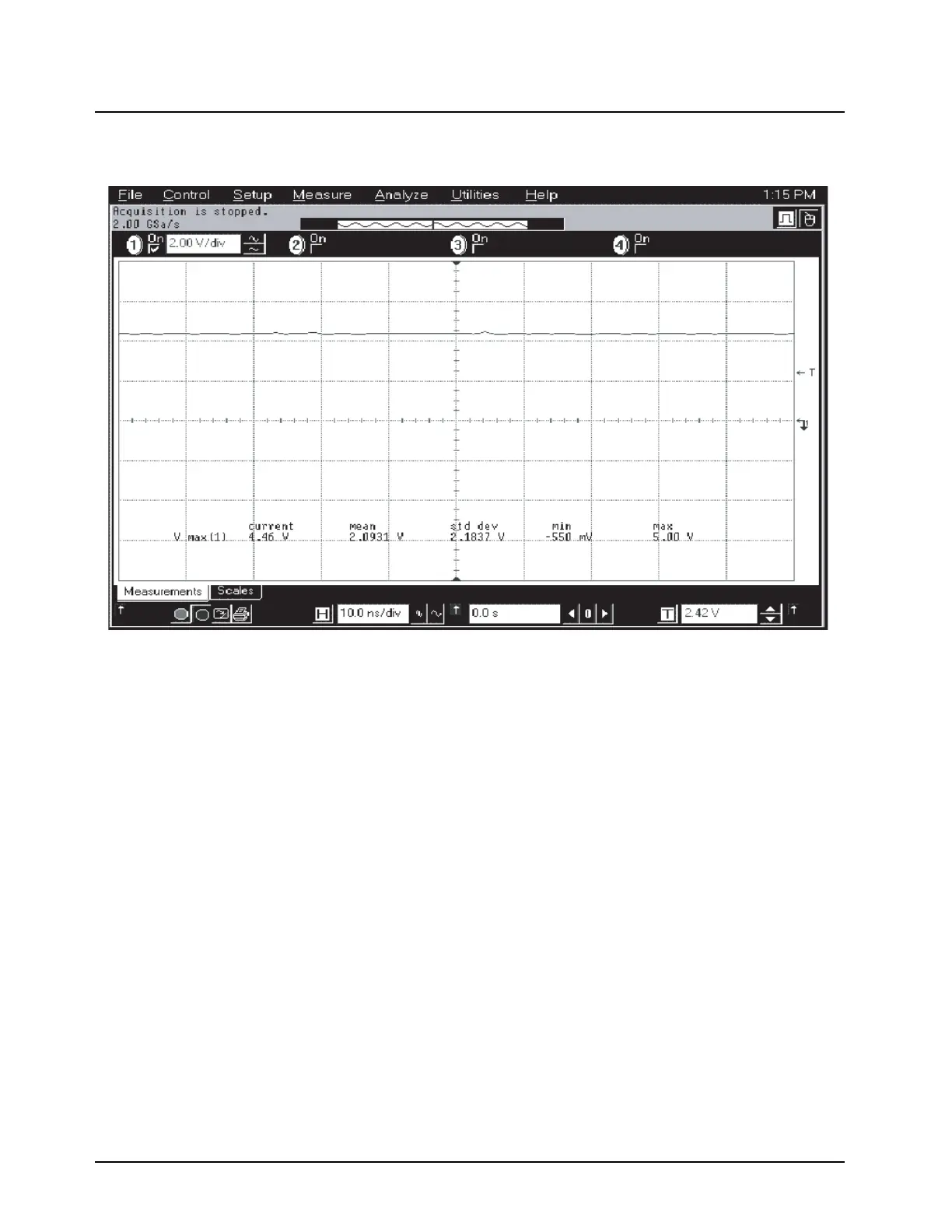

7.1-14 VHF Troubleshooting Waveforms: PP9 Superfilter Output
7.1.13PP9 Superfilter Output
Probe point: SF_TP (located under shield).
