6816985H01-F February 14, 2012
UHF1 Troubleshooting Waveforms: PP26 Mixer Out (IF) 7.2-29
7.2.27PP26 Mixer Out (IF)
Probe point: C68.

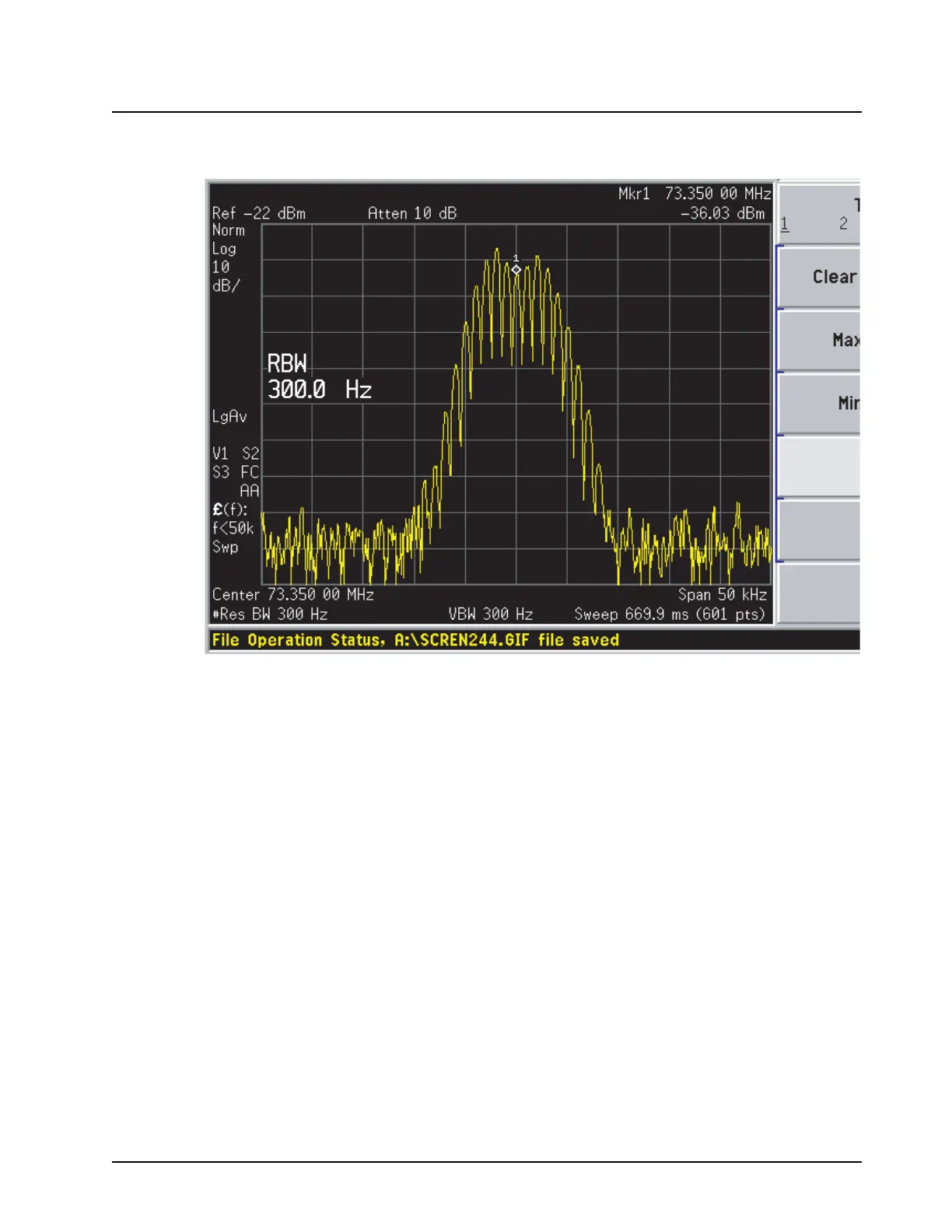

Typical RX signal with 1 kHz modulation. Display shows modulation components of carrier.
