February 14, 2012 6816985H01-F
7.2-28 UHF1 Troubleshooting Waveforms: PP25 Preselector 2 Output
7.2.26PP25 Preselector 2 Output
Probe point: C47.

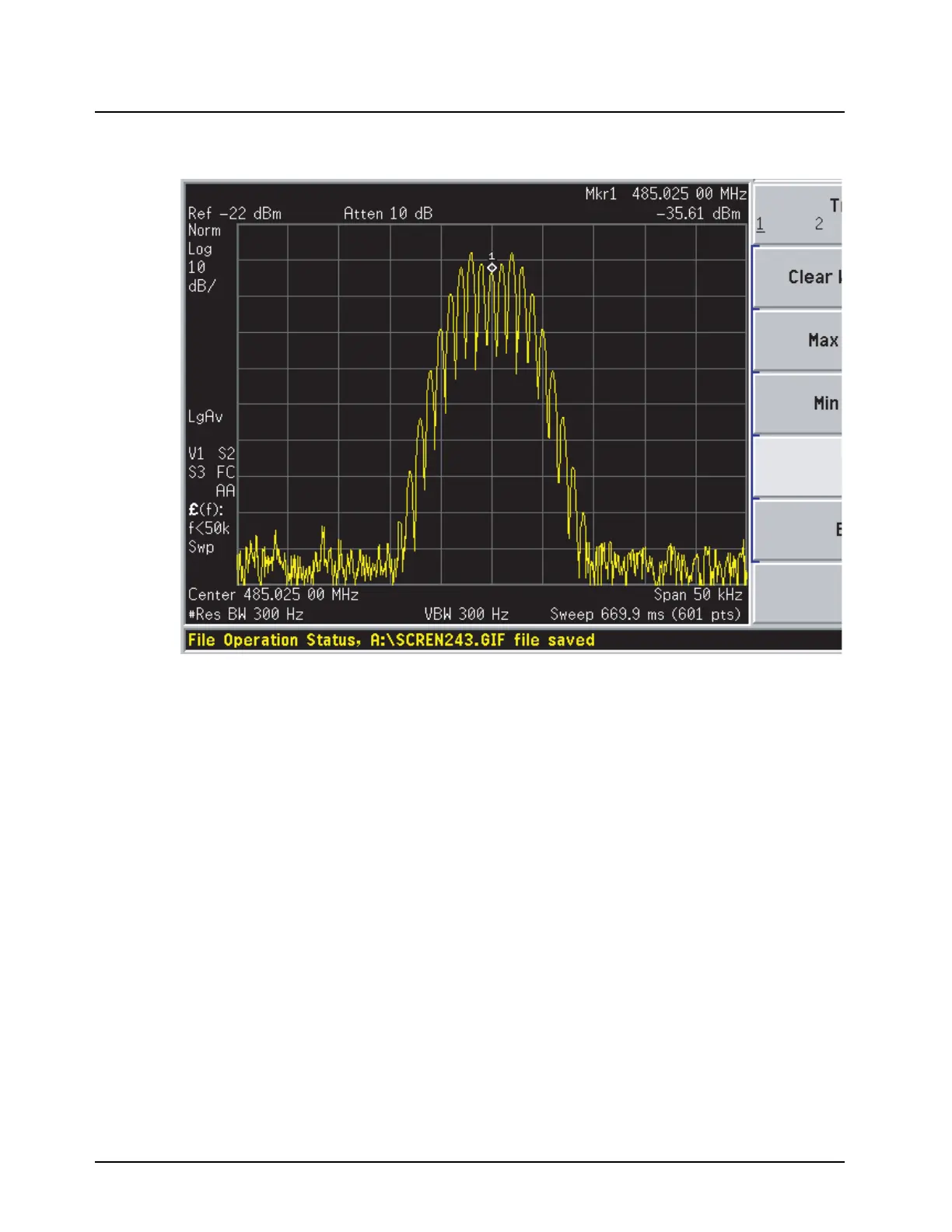

Typical RX signal with 1 kHz modulation. Display shows modulation components of carrier.
