6816985H01-F February 14, 2012

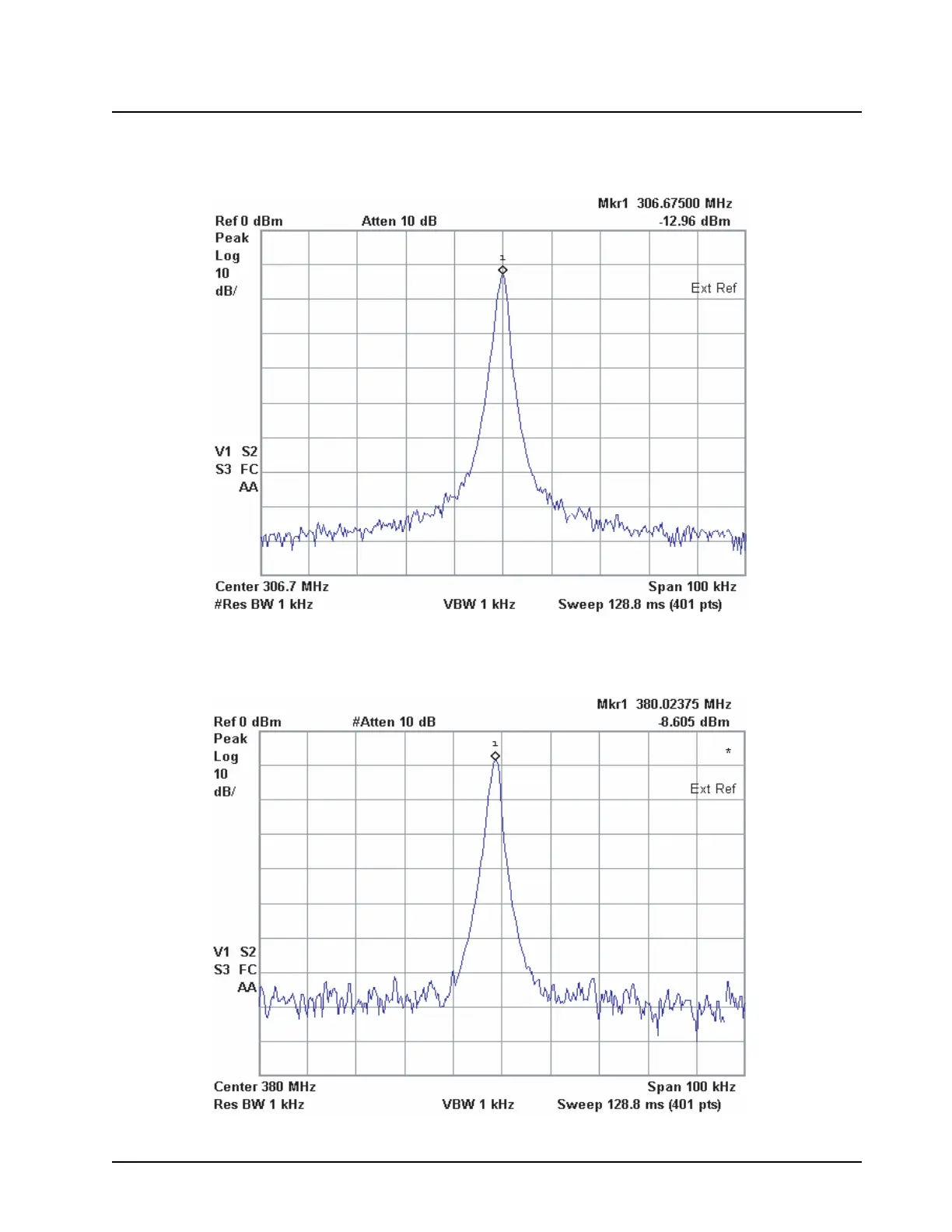

UHF1 Troubleshooting Waveforms: PP15 VCO Output 7.2-19
7.2.18PP15 VCO Output
Probe point: R266 RX lo
Probe point: R289 TX Lo
