6816985H01-F February 14, 2012

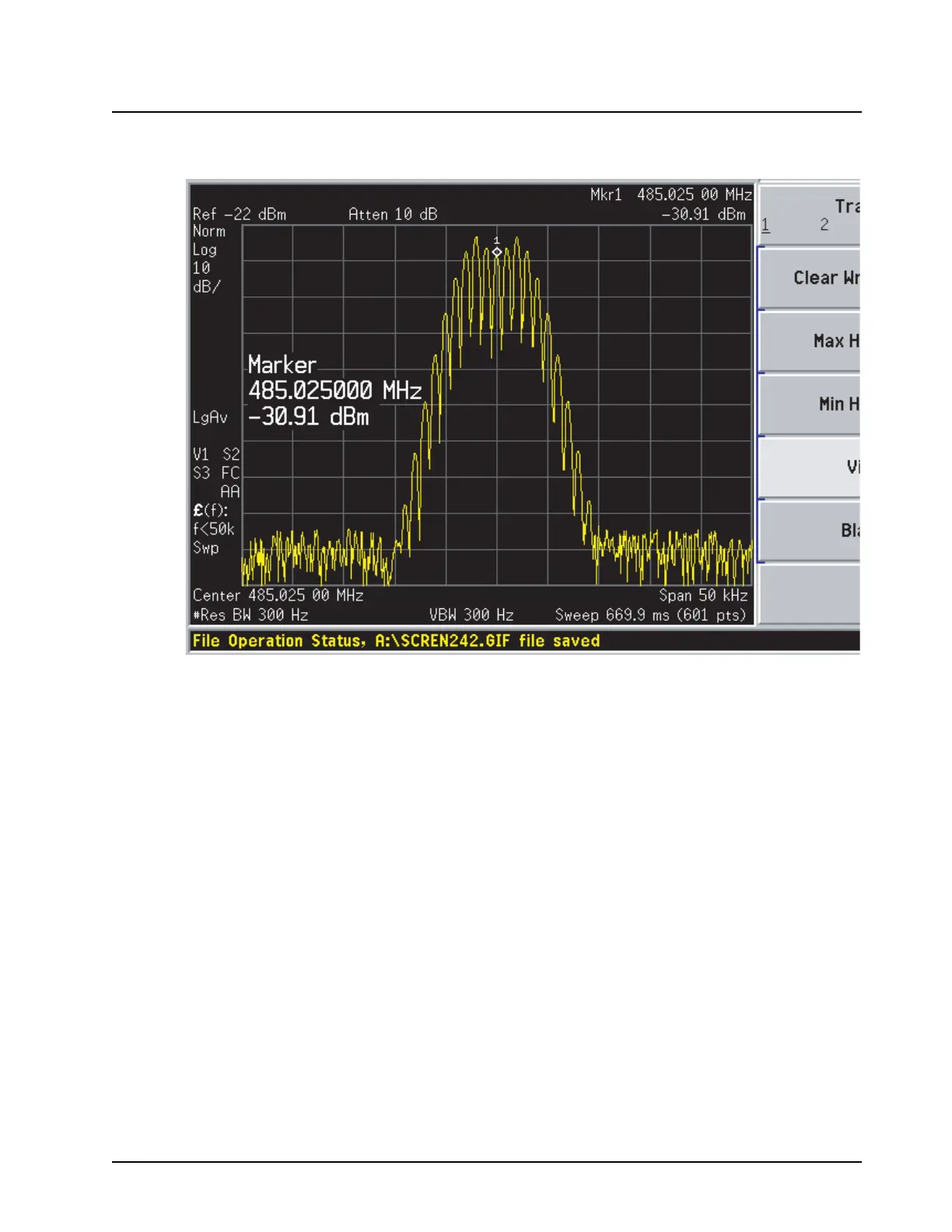

UHF1 Troubleshooting Waveforms: PP24 Low-Noise Amplifier Output 7.2-27
7.2.25PP24 Low-Noise Amplifier Output
Probe point: C35.
Typical RX signal with 1 kHz modulation. Display shows modulation components of carrier.
