February 14, 2012 6816985H01-F
7.1-36 VHF Troubleshooting Waveforms: 16.8 MHz Buffer Input and Output
7.1.3516.8 MHz Buffer Input and Output

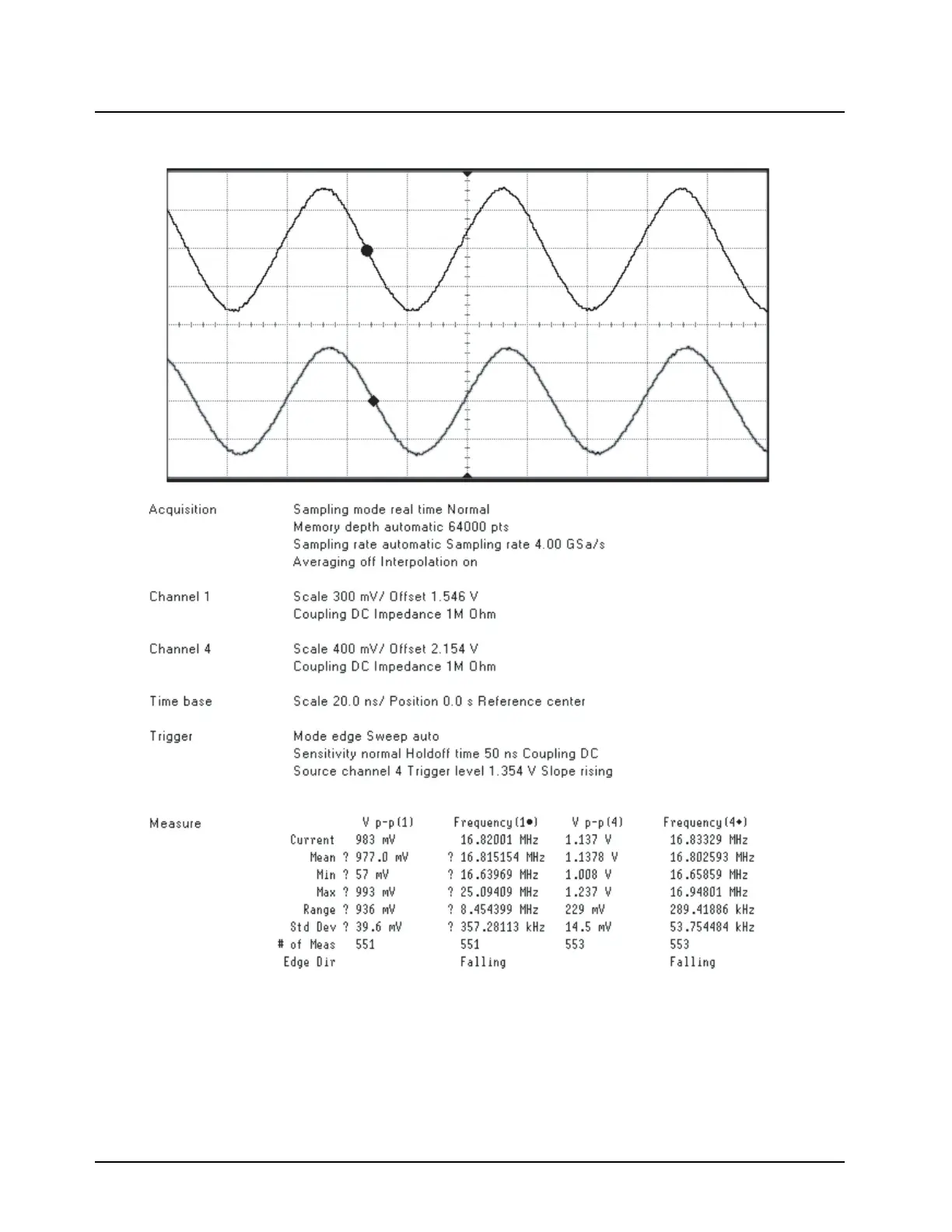

Trace 1: Buffer input at R729.
Trace 2: Buffer output at C726.
