February 14, 2012 6816985H01-F
7.2-24 UHF1 Troubleshooting Waveforms: PP20 Preselector Tuning Voltage

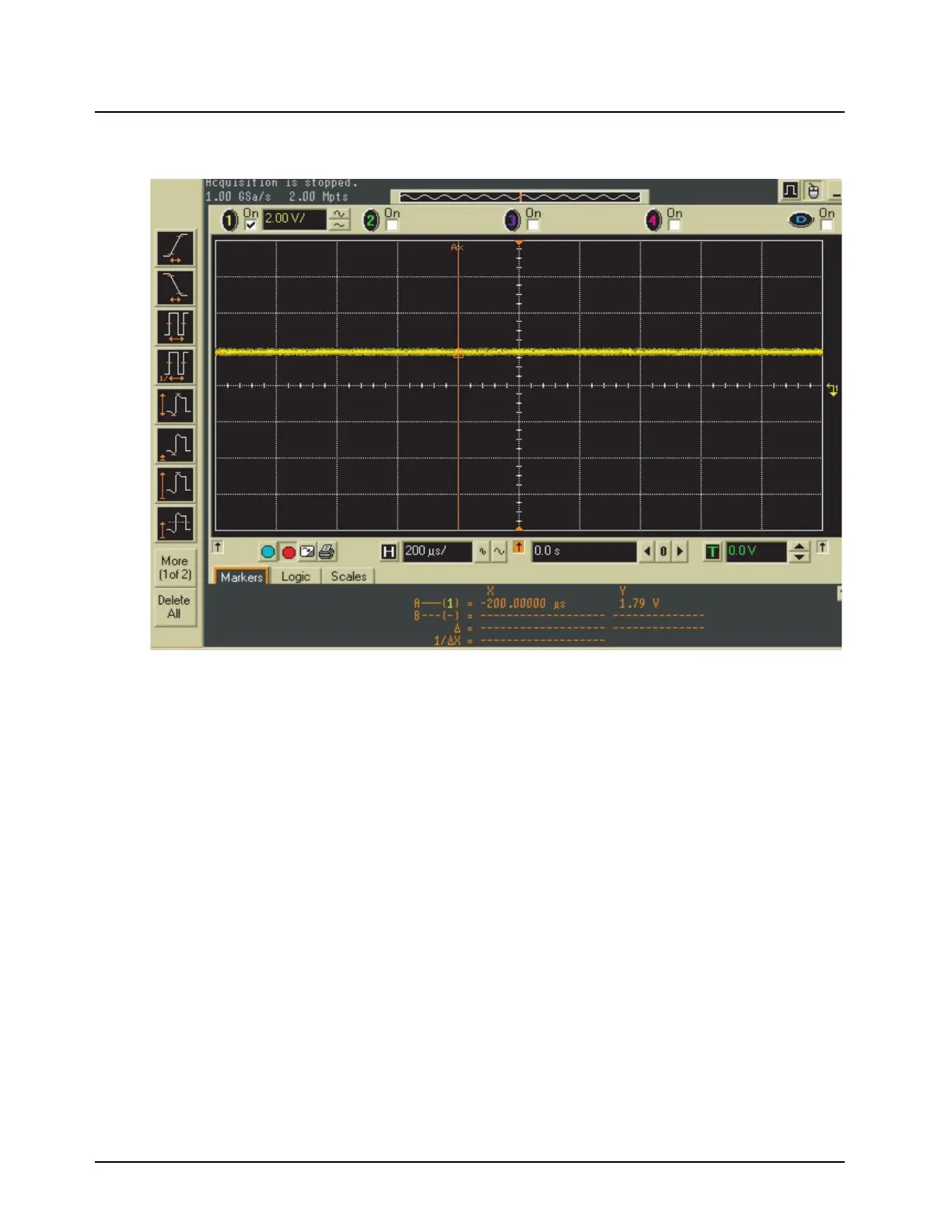

7.2.22PP20 Preselector Tuning Voltage
Probe point: C15 and C46.
This is a typical value when tuned to receive at 136.075MHz.
