6816985H01-F February 14, 2012

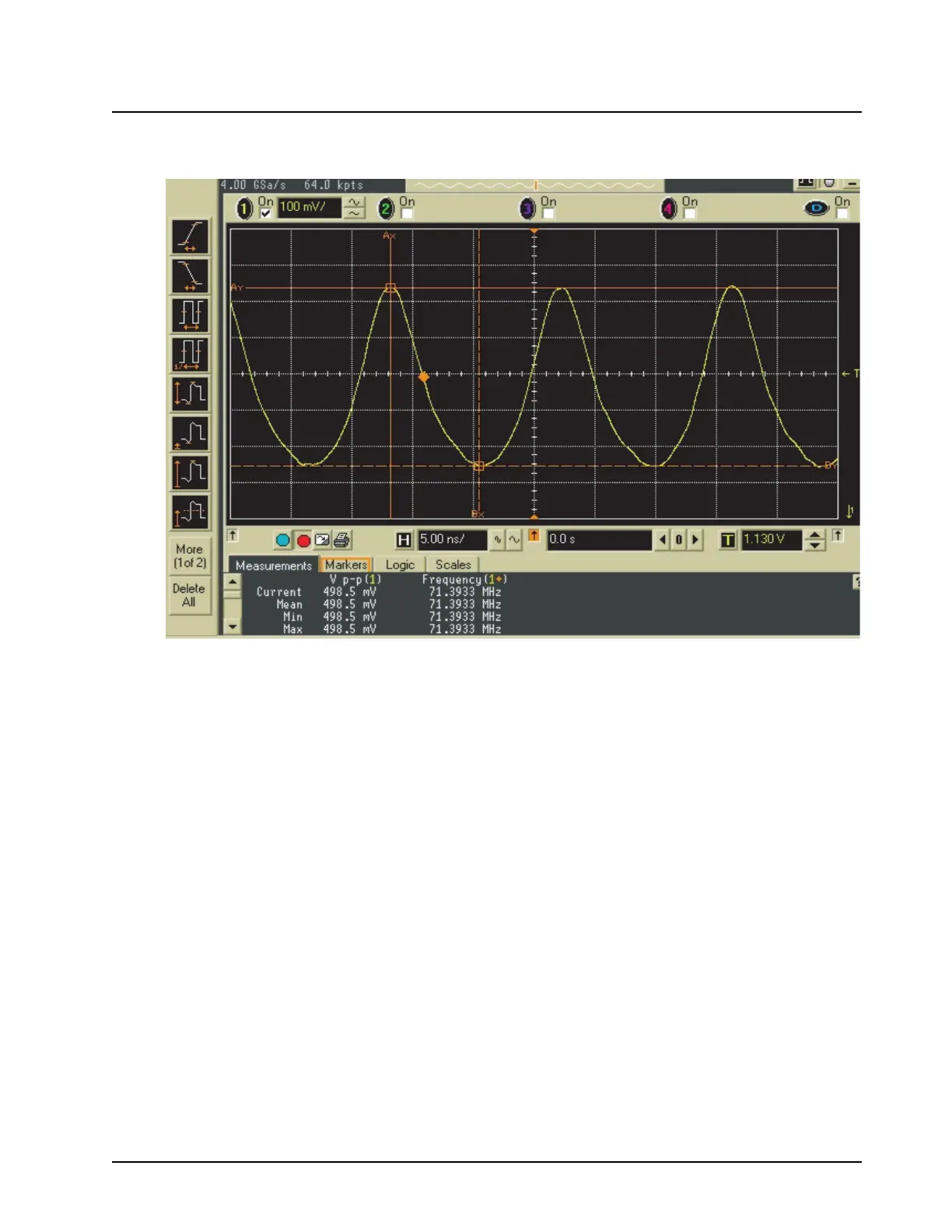

UHF1 Troubleshooting Waveforms: PP30 2nd LO VCO Buffer Output 7.2-33
7.2.31PP30 2nd LO VCO Buffer Output
Probe point: C433.
