6816985H01-F February 14, 2012

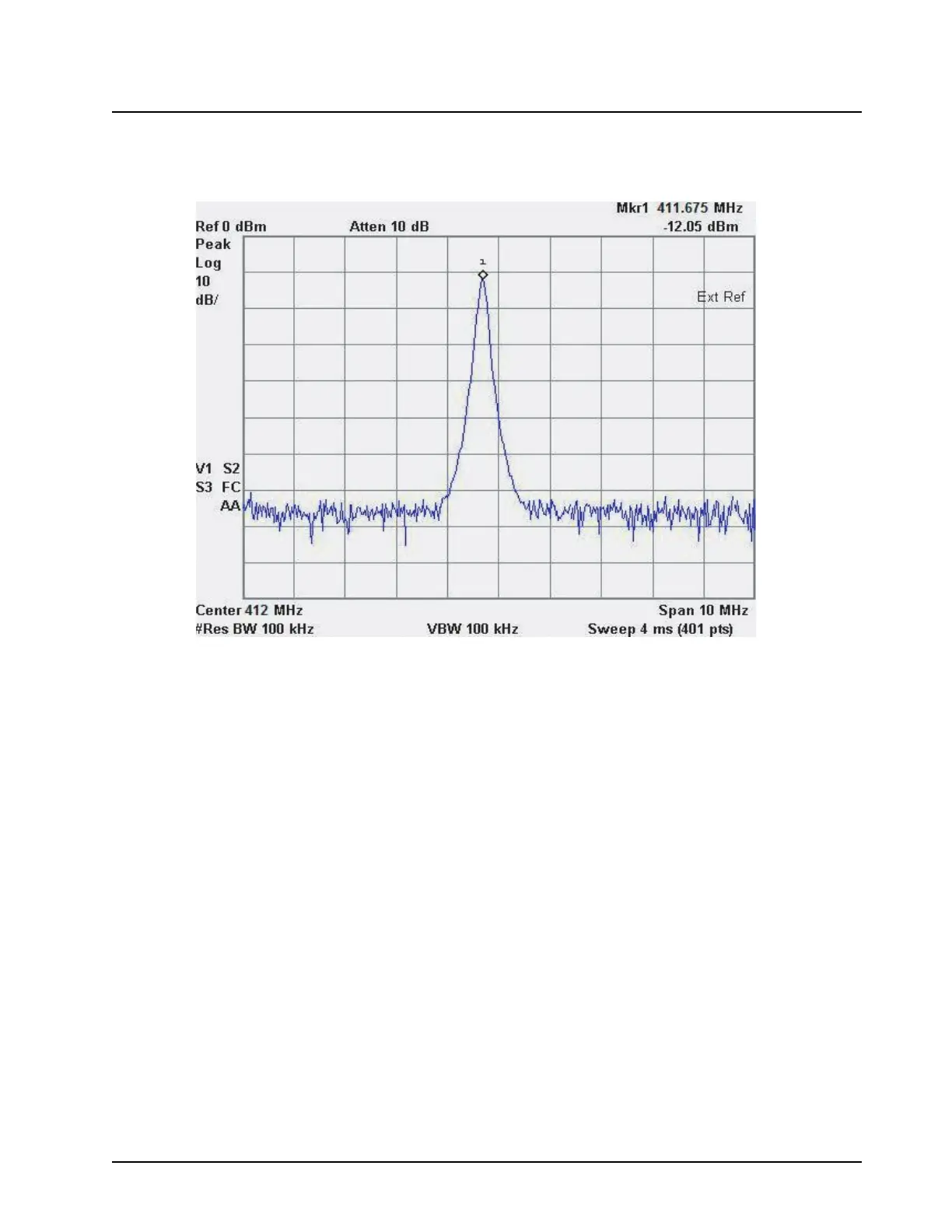

UHF2 Troubleshooting Waveforms: PP11 Prescalar Input to FracN Synthesizer 7.3-15
7.3.14PP11 Prescalar Input to FracN Synthesizer
Probe point: TP23 (located under shield).
