6816985H01-F February 14, 2012
UHF2 Troubleshooting Waveforms: PP20 Preselector Tuning Voltage 7.3-23

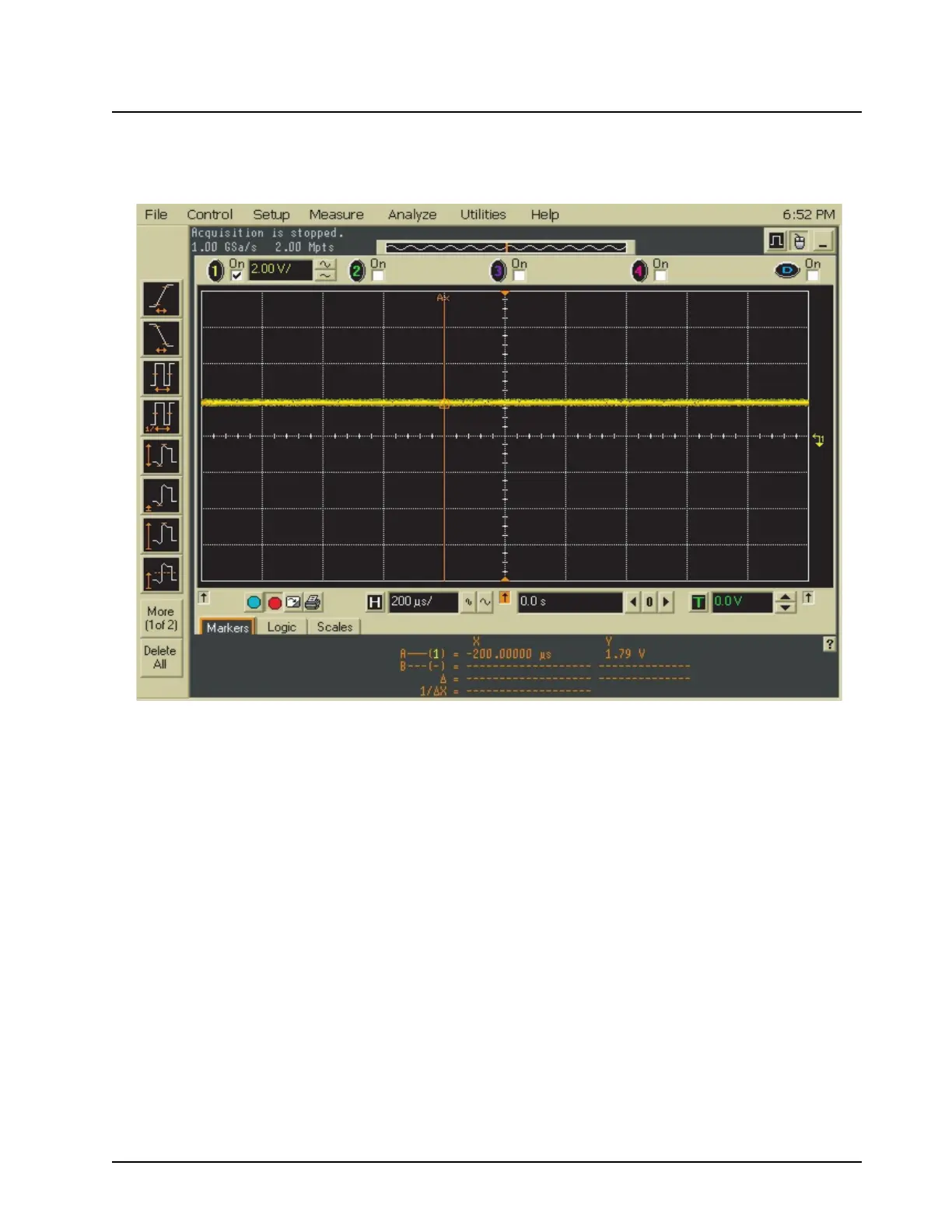

7.3.22PP20 Preselector Tuning Voltage
Probe point: C15 and C46.
This is a typical value when tuned to receive at 136.075MHz.
