6816985H01-F February 14, 2012
UHF2 Troubleshooting Waveforms: 32.768 kHz Clock Outputs 7.3-37
7.3.3632.768 kHz Clock Outputs

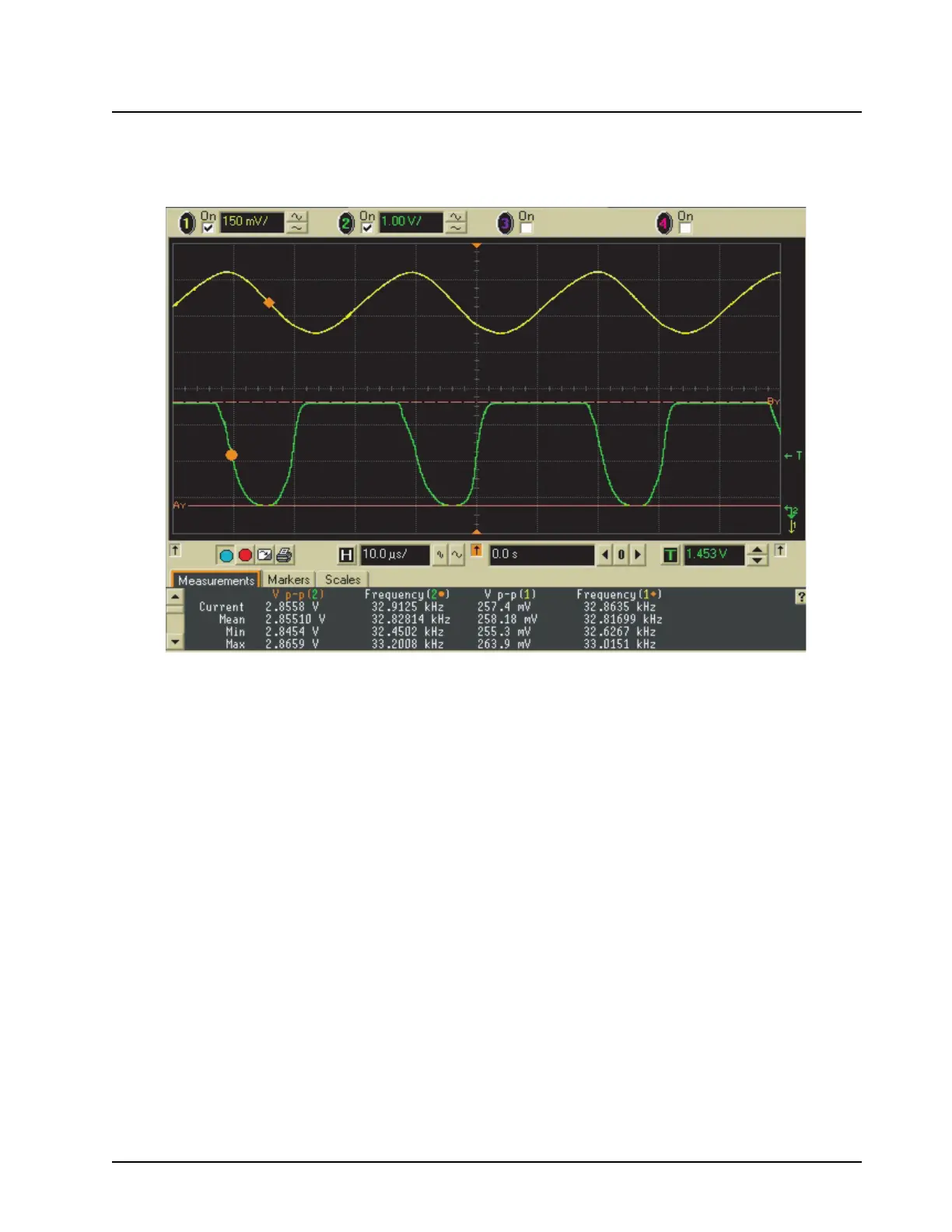

Trace 1: Output at C743.
Trace 2: Output atU712, pin 4.
