6816985H01-F
February 14, 2012
UHF2 Troubleshoo
ting Waveforms:
RX Serial Audio Port (SAP)
7.3-39
7.3.38
RX Serial Audio Port (SAP)
Note:
TX is id
entical, ex
cept the da
ta is probed at
test point “T
X”.
T

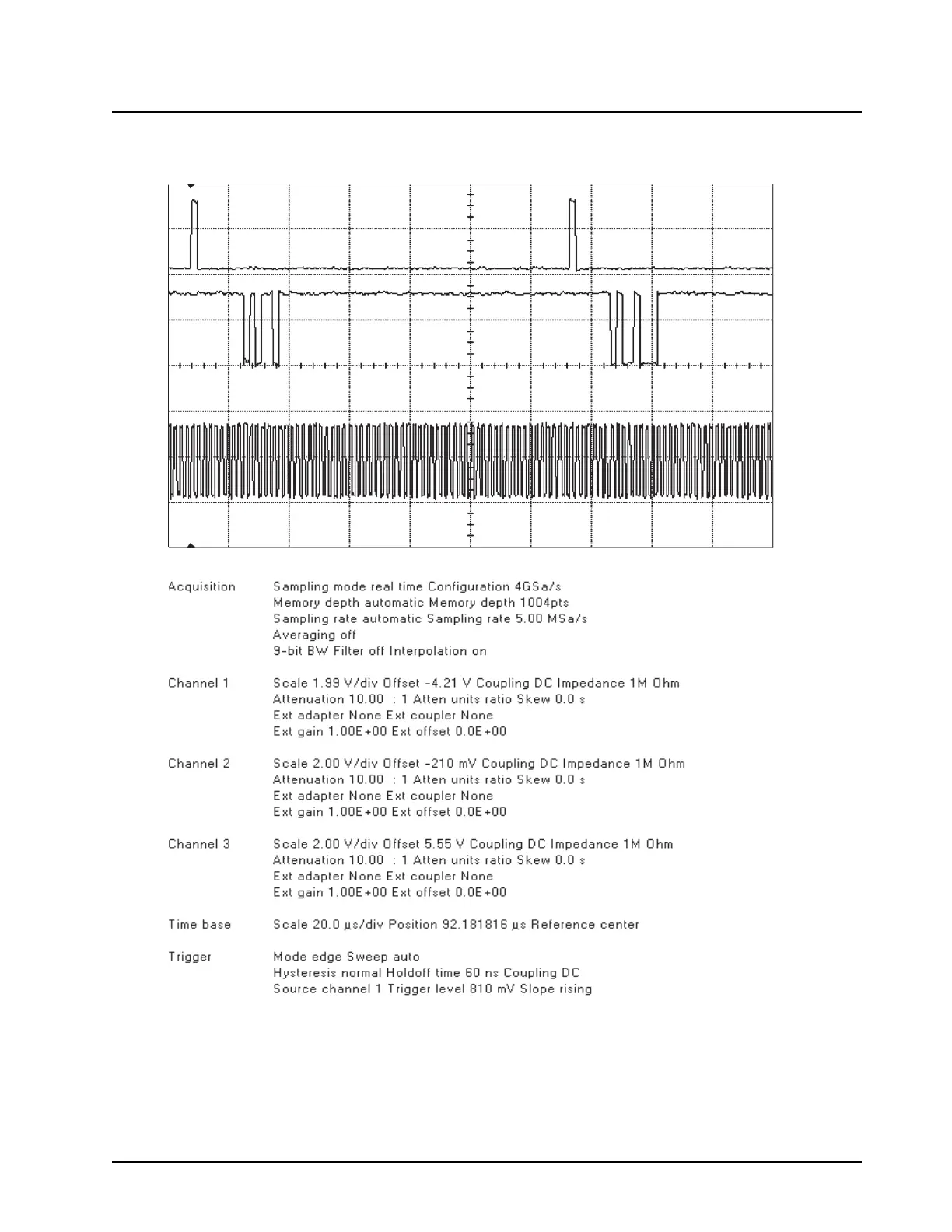

race 1: 8 kHz frame sync (each word is 13 bits af
ter falling edge of FSYNC)
T
race 2: SAP data at R626 (audio dat
a from MAKO CODEC to Patriot DSP)
Note: T
ransmit is identical, except data acquired at R625
T
race 3: 512kHz
bit clock at R616. (Codec_DCLK).
418
420
