7.4-16 700/800 MHz Troubleshooting Waveforms: PP11 Prescalar Input to FracN Synthesizer
7.4.15PP11 Prescalar Input to FracN Synthesizer
Probe point: C236 (located under shield).

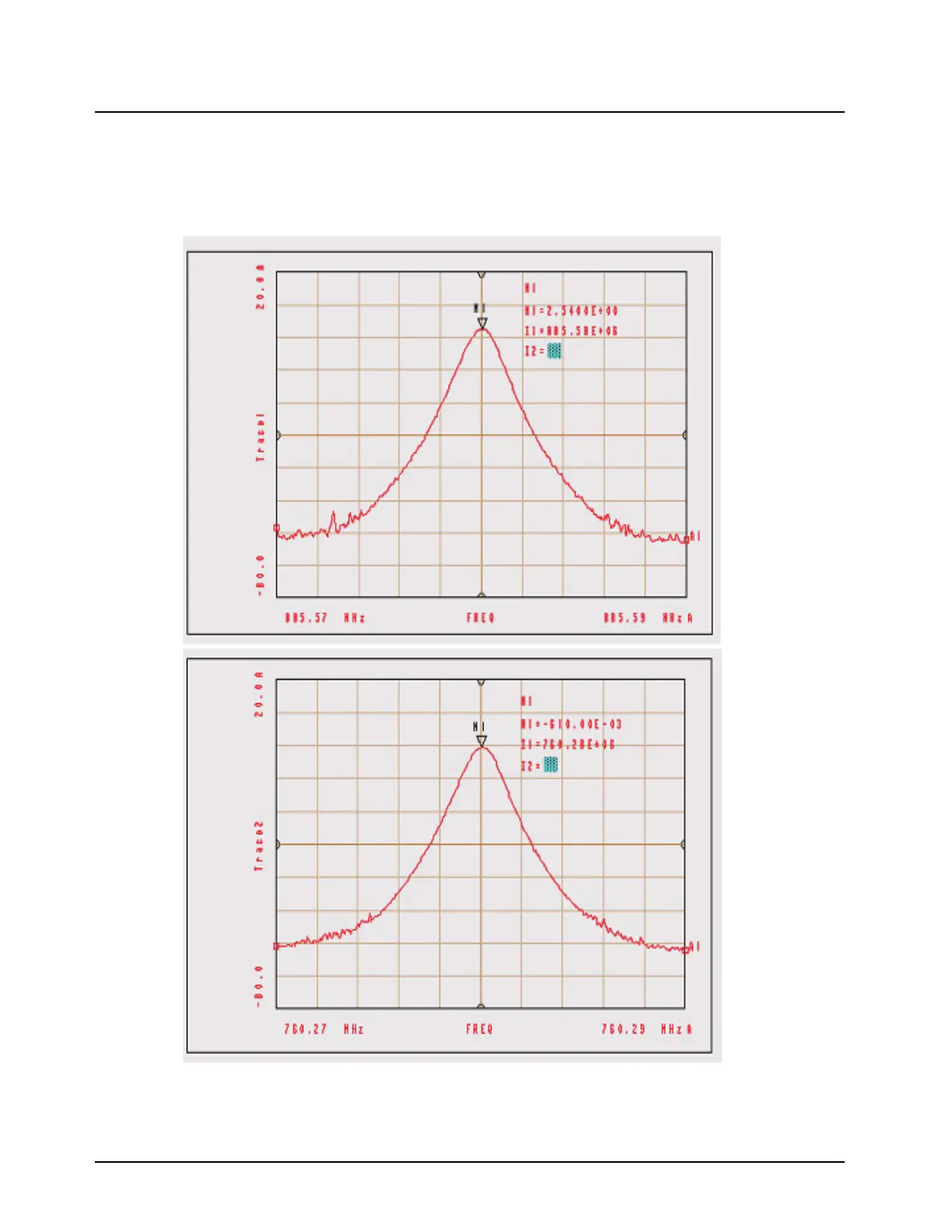

Prescalar input for RX/TX 869.9375 MHz
Prescalar input for RX/TX 775.9375 MHz
