February 14, 2012 6816985H01-F

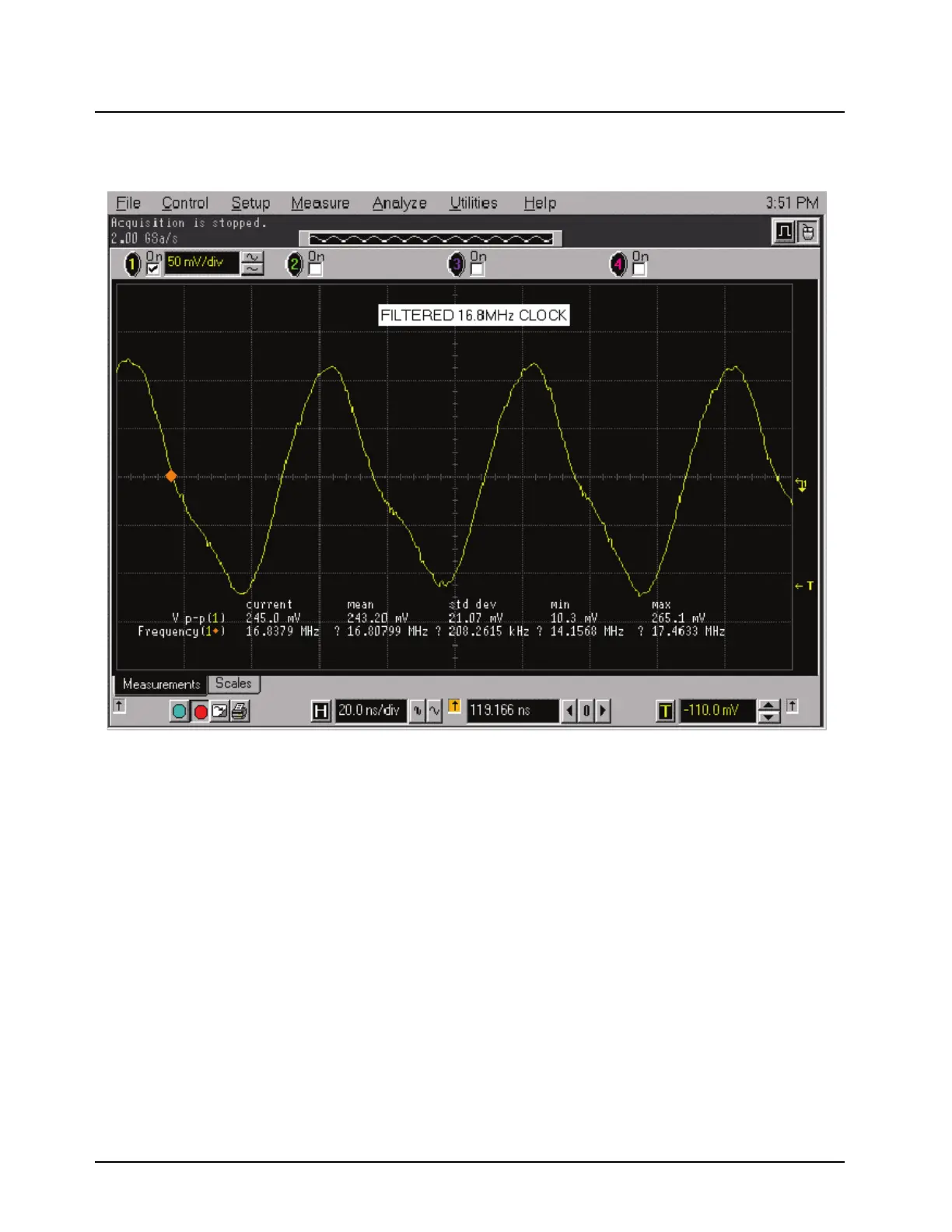

7.4-22 700/800 MHz Troubleshooting Waveforms: PP17 Frequency Out (16.8 MHz)
7.4.21PP17 Frequency Out (16.8 MHz)
Probe point: Shield C293.
